Dell PowerVault MD3200i User Manual

228 Management: Installing Array Components
Installing a Power Supply/Cooling Fan Module
CAUTION: Many repairs may only be done by a certified service technician. You
must only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not covered
by your warranty. Read and follow the safety instructions that came with the
product.
1 Slide the power supply/cooling fan module into the chassis until it is fully
seated and the release tab clicks into place. See Figure 16-11.
2 Connect the power cable to the power supply/cooling fan module and plug
the cable into a power outlet.
3 Secure the power cable using the strap. See Figure 16-12.

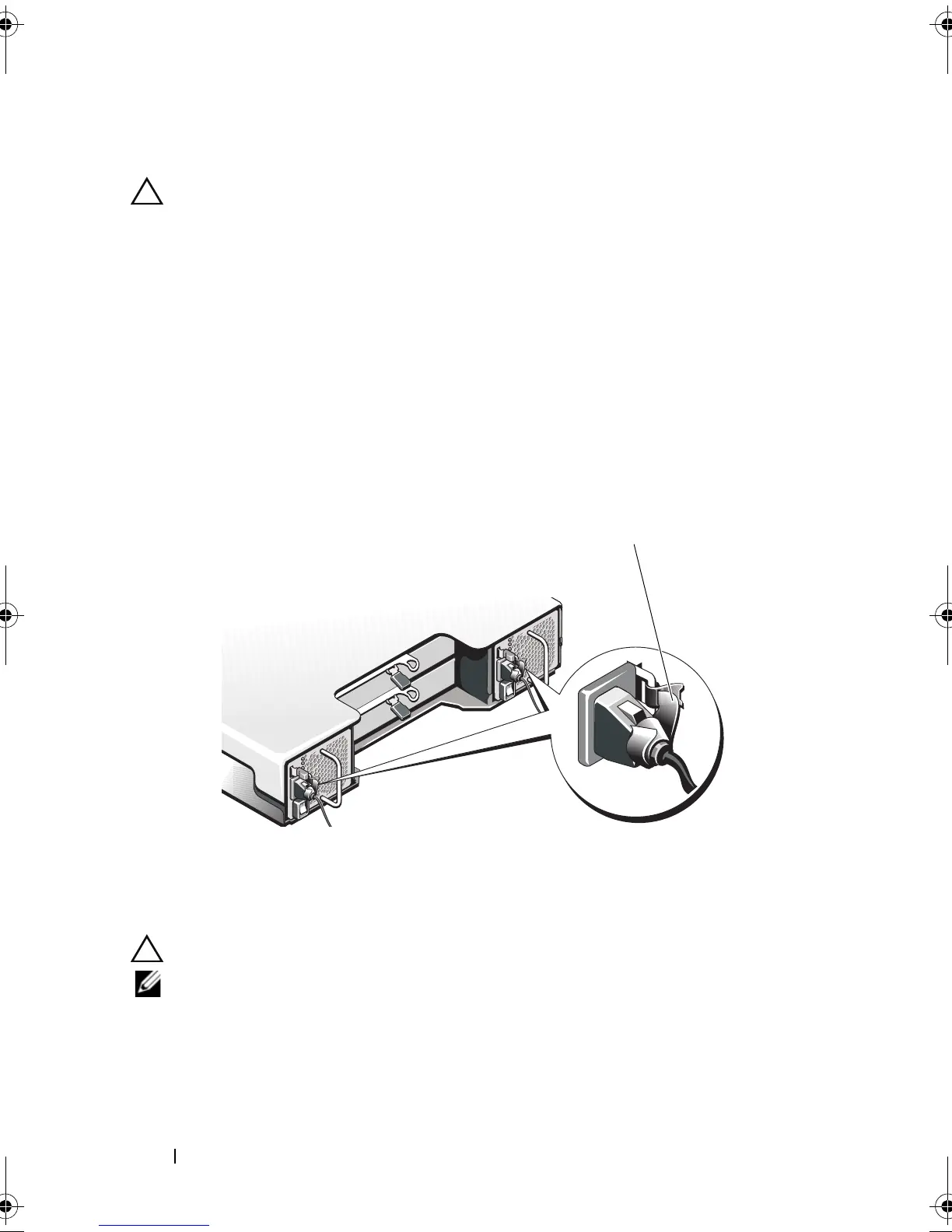

Figure 16-12. Securing the Power Cable
CAUTION: When connecting the power cable, secure the cable with the strap.
NOTE: If the array is powered on, all the power supply LEDs remain off until the AC
power cable is connected to the power supply/cooling fan module and the power
switch is turned on.
4 Turn on the power supply/cooling fan module.
1 strap
1
book.book Page 228 Saturday, September 24, 2011 9:06 AM

Dell PowerVault MD3200i Specifications

General

HDD speed	15000 RPM
RAID levels	0, 1, 5, 6, 10
Storage drive capacity	600 GB
Storage drive interface	Serial Attached SCSI (SAS)
Maximum supported storage capacity	115.2 TB
Number of storage drives installed	12
Interface	RJ-45, SAS, PS/2
Connector(s)	4x RJ-45, 1x 6Gb SAS, 1x PS/2
Power supply type	AC
Dimensions (WxDxH)	446.3 x 561 x 86.8 mm
Power requirements	90 - 264 V, 47 - 63 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows, Linux, VMware, Hyper-V
Internal	No
LED indicators	HDD, Power, Power fail, Status
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Power consumption (typical)	25 W
Power supply unit (PSU) capacity	600 W

Weight and Dimensions

Weight	29300 g
