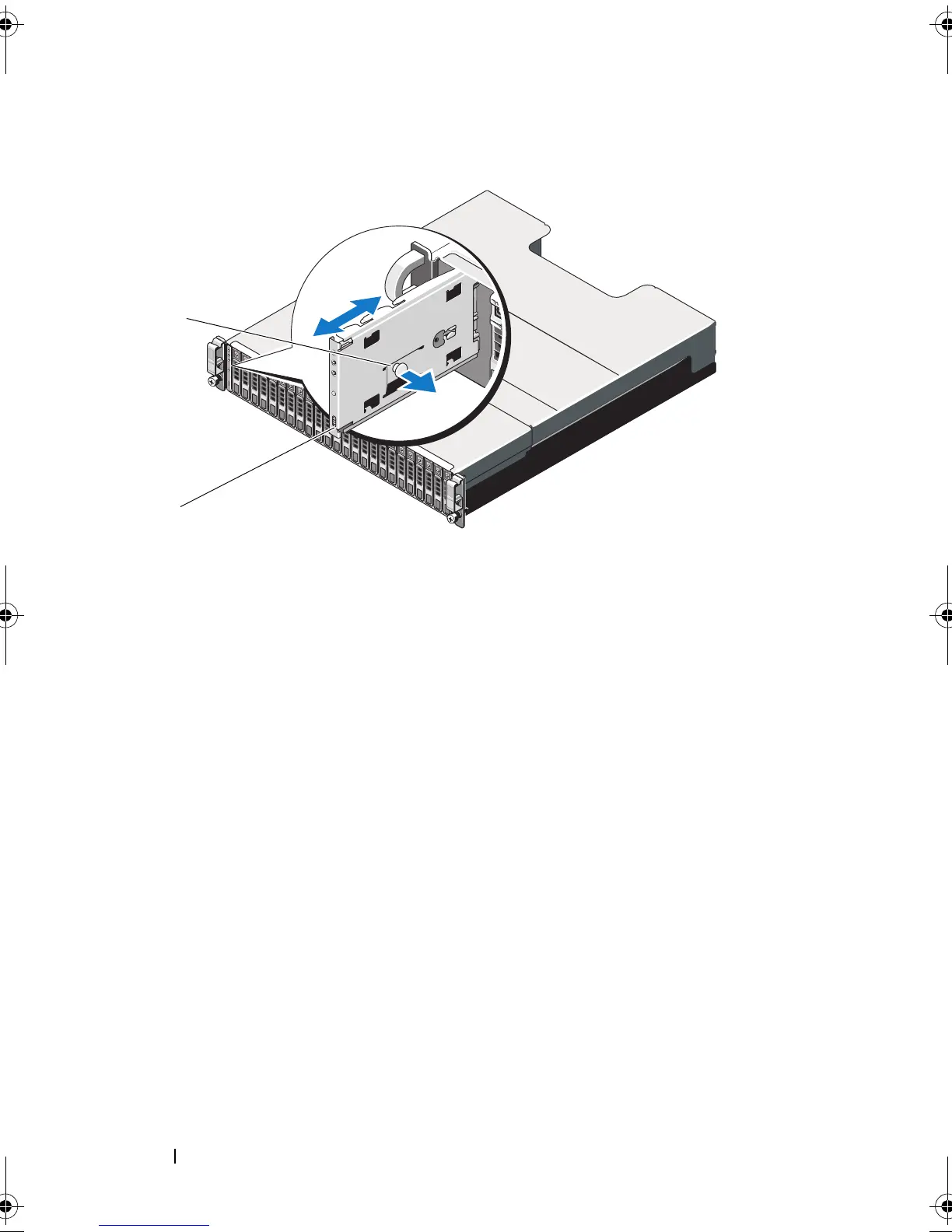

Figure 16-14. Removing and Installing the Control Panel-PowerVault MD3220i
Installing the Control Panel
1 Align the control panel with the slot on the array.
2 Slide the control panel into the array until:
– The release tab clicks into place in
PowerVault MD3200i .
See Figure 16-13.
– The release pin clicks into place in
PowerVault MD3220i .
See Figure 16-14.
3 Replace the hard drives in their respective slots. See "Installing a Hard
Drive" on page 216.
4 Connect all the power cables to the array.
5 Turn on the array and the host server.
1 release pin 2 control panel
1
2
book.book Page 230 Saturday, September 24, 2011 9:06 AM

Dell PowerVault MD3200i Specifications

General

HDD speed	15000 RPM
RAID levels	0, 1, 5, 6, 10
Storage drive capacity	600 GB
Storage drive interface	Serial Attached SCSI (SAS)
Maximum supported storage capacity	115.2 TB
Number of storage drives installed	12
Interface	RJ-45, SAS, PS/2
Connector(s)	4x RJ-45, 1x 6Gb SAS, 1x PS/2
Power supply type	AC
Dimensions (WxDxH)	446.3 x 561 x 86.8 mm
Power requirements	90 - 264 V, 47 - 63 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows, Linux, VMware, Hyper-V
Internal	No
LED indicators	HDD, Power, Power fail, Status
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Power consumption (typical)	25 W
Power supply unit (PSU) capacity	600 W

Weight and Dimensions

Weight	29300 g
