Dell PowerVault MD3200i User Manual

Management: Installing Array Components 221
Removing a RAID Controller Module
CAUTION: Many repairs may only be done by a certified service technician.
You must only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came
with the product.
1 Disconnect the cables connected to the RAID controller module.
2 Push down on the release tab and pull the release lever away from the
chassis. See Figure 16-8.
3 Grasp the release lever and pull the module away from the chassis.
NOTE: To avoid damage to the sensitive EMI contacts on the RAID controller
module, do not stack RAID controller modules.

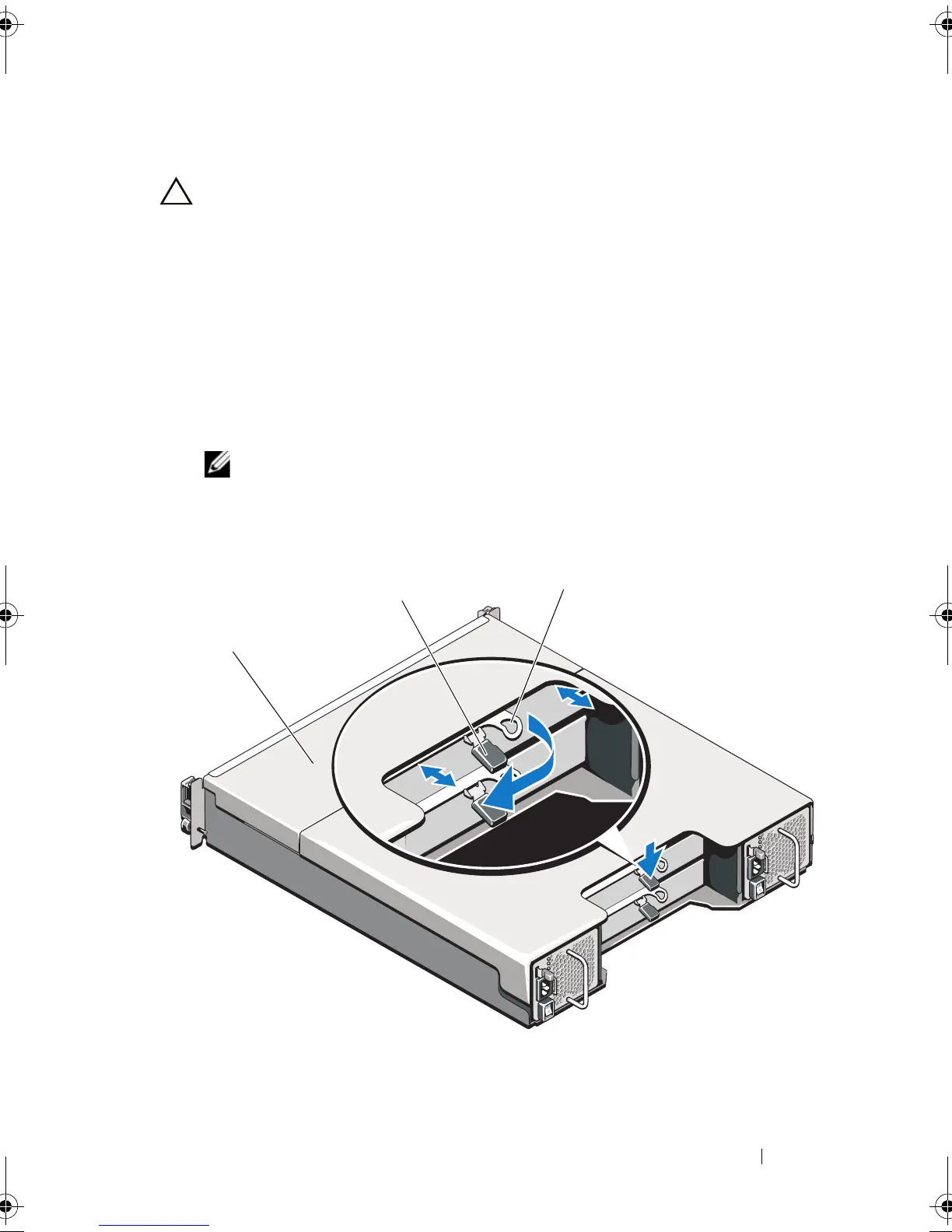

Figure 16-8. Removing and Installing a RAID Controller Module
1 RAID controller module 2 release tab
3 release lever
2
3
1
book.book Page 221 Saturday, September 24, 2011 9:06 AM

Dell PowerVault MD3200i Specifications

General

HDD speed	15000 RPM
RAID levels	0, 1, 5, 6, 10
Storage drive capacity	600 GB
Storage drive interface	Serial Attached SCSI (SAS)
Maximum supported storage capacity	115.2 TB
Number of storage drives installed	12
Interface	RJ-45, SAS, PS/2
Connector(s)	4x RJ-45, 1x 6Gb SAS, 1x PS/2
Power supply type	AC
Dimensions (WxDxH)	446.3 x 561 x 86.8 mm
Power requirements	90 - 264 V, 47 - 63 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows, Linux, VMware, Hyper-V
Internal	No
LED indicators	HDD, Power, Power fail, Status
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Power consumption (typical)	25 W
Power supply unit (PSU) capacity	600 W

Weight and Dimensions

Weight	29300 g
