Dell PowerVault MD3200i User Manual

224 Management: Installing Array Components
RAID Controller Module Backup Battery Unit
Removing the RAID Controller Module Backup Battery Unit
CAUTION: Many repairs may only be done by a certified service technician. You
must only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not covered
by your warranty. Read and follow the safety instructions that came with the
product.
1 Turn off the array and host server.
2 Disconnect all the cables connected to the array.
3 Remove the RAID controller module. See "Removing a RAID Controller
Module" on page 221.
4 Open the RAID controller module. See "Opening the RAID Controller
Module" on page 222.
5 Loosen the screw that secures the backup battery unit to the RAID
controller module. See Figure 16-10.
6 Slide the backup battery unit in the direction of the arrow and lift it out of
the RAID controller module. See Figure 16-10.

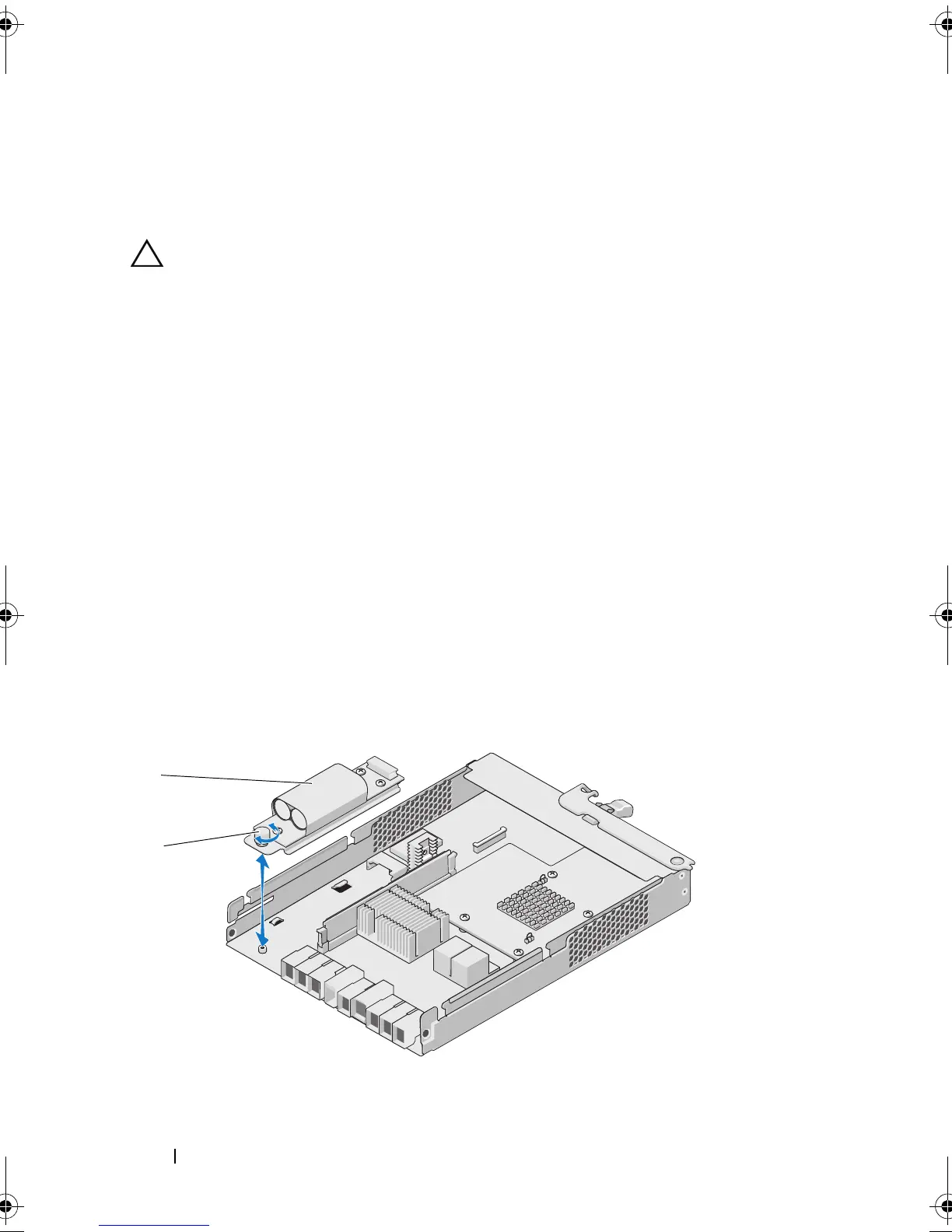

Figure 16-10. Removing and Installing the RAID Controller Module Backup Battery Unit
1 backup battery unit 2 screw
1
2
book.book Page 224 Saturday, September 24, 2011 9:06 AM

Dell PowerVault MD3200i Specifications

General

HDD speed	15000 RPM
RAID levels	0, 1, 5, 6, 10
Storage drive capacity	600 GB
Storage drive interface	Serial Attached SCSI (SAS)
Maximum supported storage capacity	115.2 TB
Number of storage drives installed	12
Interface	RJ-45, SAS, PS/2
Connector(s)	4x RJ-45, 1x 6Gb SAS, 1x PS/2
Power supply type	AC
Dimensions (WxDxH)	446.3 x 561 x 86.8 mm
Power requirements	90 - 264 V, 47 - 63 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows, Linux, VMware, Hyper-V
Internal	No
LED indicators	HDD, Power, Power fail, Status
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Power consumption (typical)	25 W
Power supply unit (PSU) capacity	600 W

Weight and Dimensions

Weight	29300 g
