Digi IX30 hardware reference IX30 front view
IX30 User Guide
24

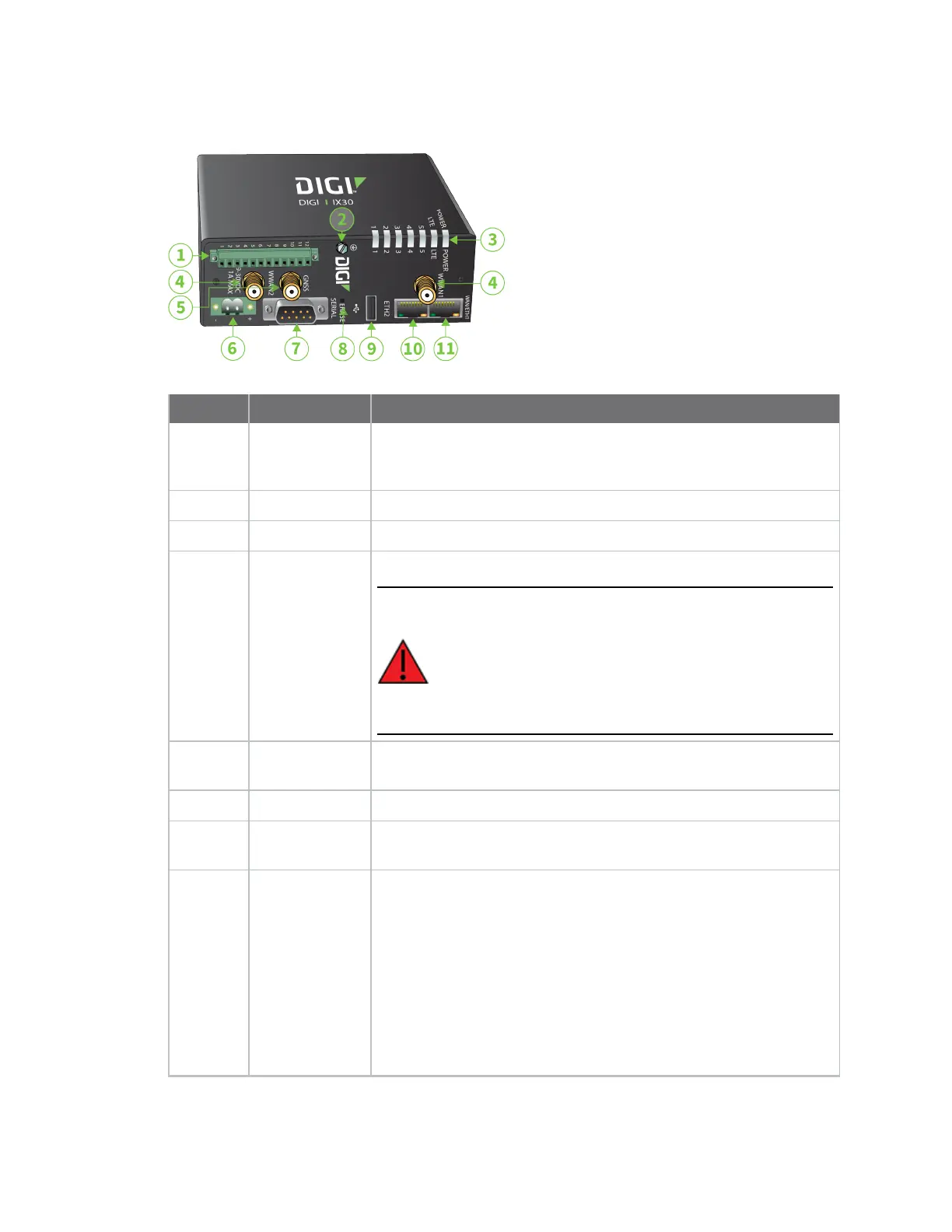

IX30 front view
Number Item Decription
1 Digital/analog
I/O connector
An input/output connector with four digital input/output connections
and four analog input connections. See
Digital input/output and
analog input connections
for more information and wiring diagrams.
2 Ground screw
Electric ground screw for fastening a grounding wire.
3 LEDs
See
IX30 LEDs
.
4 Cellular
antenna
connectors
Main (WWAN1) and auxiliary (WWAN2) cellular antenna connectors.
WARNING! For Class I, Division 2 Hazardous Location
applications: Antennas intended for use with the product
must be installed within the end use enclosure. For
external mounting of the antennas, routing and
installation of the antennas shall be in accordance with
the appropriate location regulations
5 GNSS antenna
connector
6 Power suppy IX30 power supply requirements.
7 Serial port See Digi IX30 serial connector pinout for information about the serial
port pin-out.
8 ERASE
button
The ERASE button is used to perform a device reset, and it has three
modes:
1. Configuration reset: Pressing the ERASE button one time will
reset the device configurations to the factory default. It will
not remove any automatically generated certificates and
keys.
2. Full device reset: After the device reboots from the first
button press, press the ERASE button again before the device
is connected to the internet to also remove generated
