Digital Input/Output and Analog Input Show digital I/O and analog input status and statistics
IX30 User Guide
840
8. Type exit to exit the Admin CLI.
Depending on your device configuration, you may be presented with an Access selection
menu. Type quit to disconnect from the device.
Show digital I/O and analog input status and statistics
Web
1. Log into the IX30 WebUI as a user with Admin access.
2. From the menu, click Status.
3. Under Connections, click I/O.

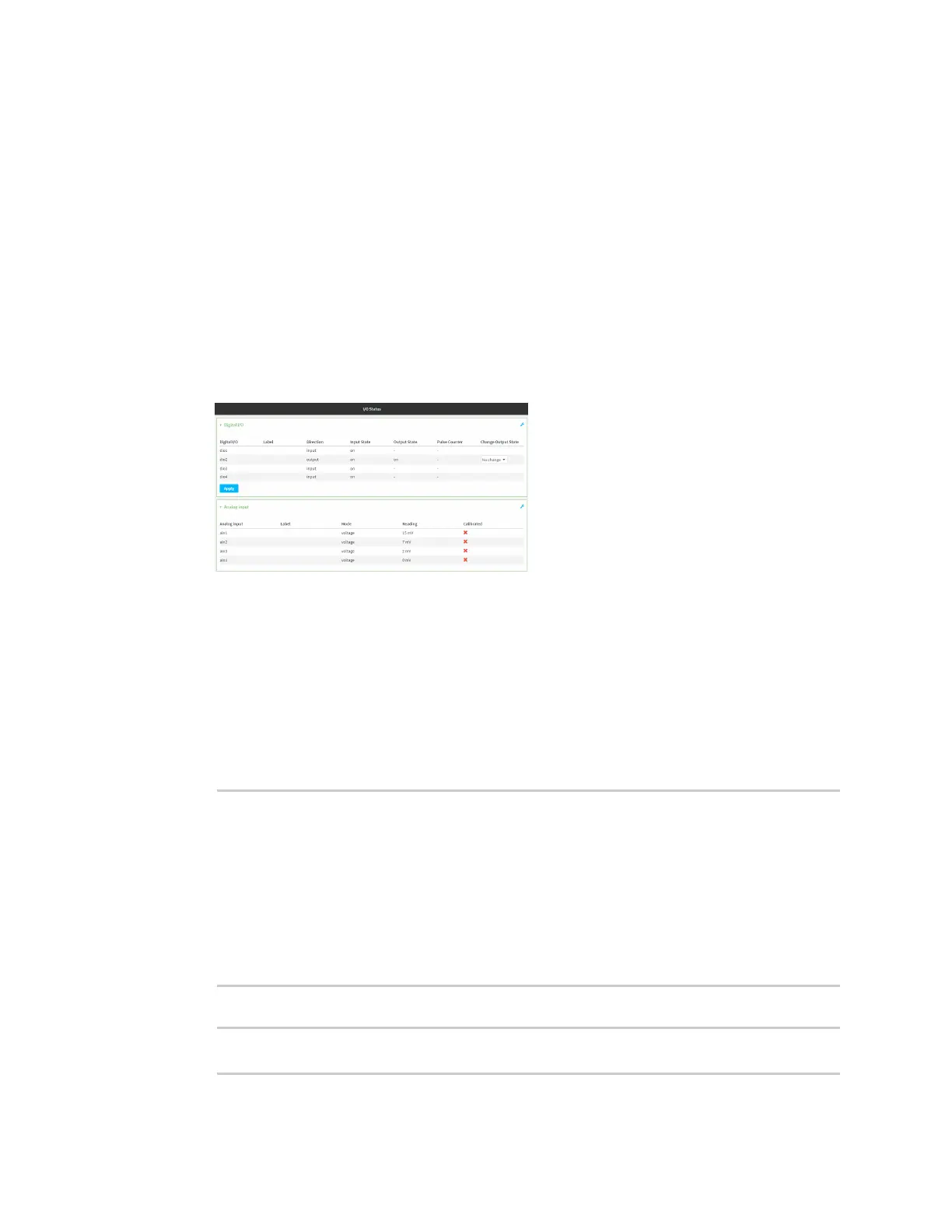

The I/O Status page is displayed:
From the I/O Status page, you can change the output state of a digital I/O port. See Change the
output state of digital I/O ports for more information.
Command line
1. Select the device in Remote Manager and click Actions > Open Console, or log into the IX30
local command line as a user with full Admin access rights.
Depending on your device configuration, you may be presented with an Access selection
menu. Type admin to access the Admin CLI.
2. To show the status of all digital I/Os:
> show dio
Label Port Direction Output Input Pulse
----- ---- --------- ------ ----- -----
dio1 input - on -
dio2 input - on -
dio3 input - on -
dio4 input - on -
>
3. To show the status and statistics of an individual digital I/O:
> show dio dio1
