Digi IX30 User Manual

Digital Input/Output and Analog Input Configure analog input ports
IX30 User Guide
833
2. At the command line, type config to enter configuration mode:
> config
(config)>
3. (Optional) Set a label for Analog input pin 1:
(config)> io analog ain1 label label
(config)>
4. By default, the pin is configured to use voltage measurement mode. Set it to use current
measurement mode instead:
(config)> io analog ain1 current_mode true
(config)>
5. Repeat for additional analog input pins.
6. Save the configuration and apply the change:
(config)> save
Configuration saved.
>
7. Type exit to exit the Admin CLI.
Depending on your device configuration, you may be presented with an Access selection
menu. Type quit to disconnect from the device.

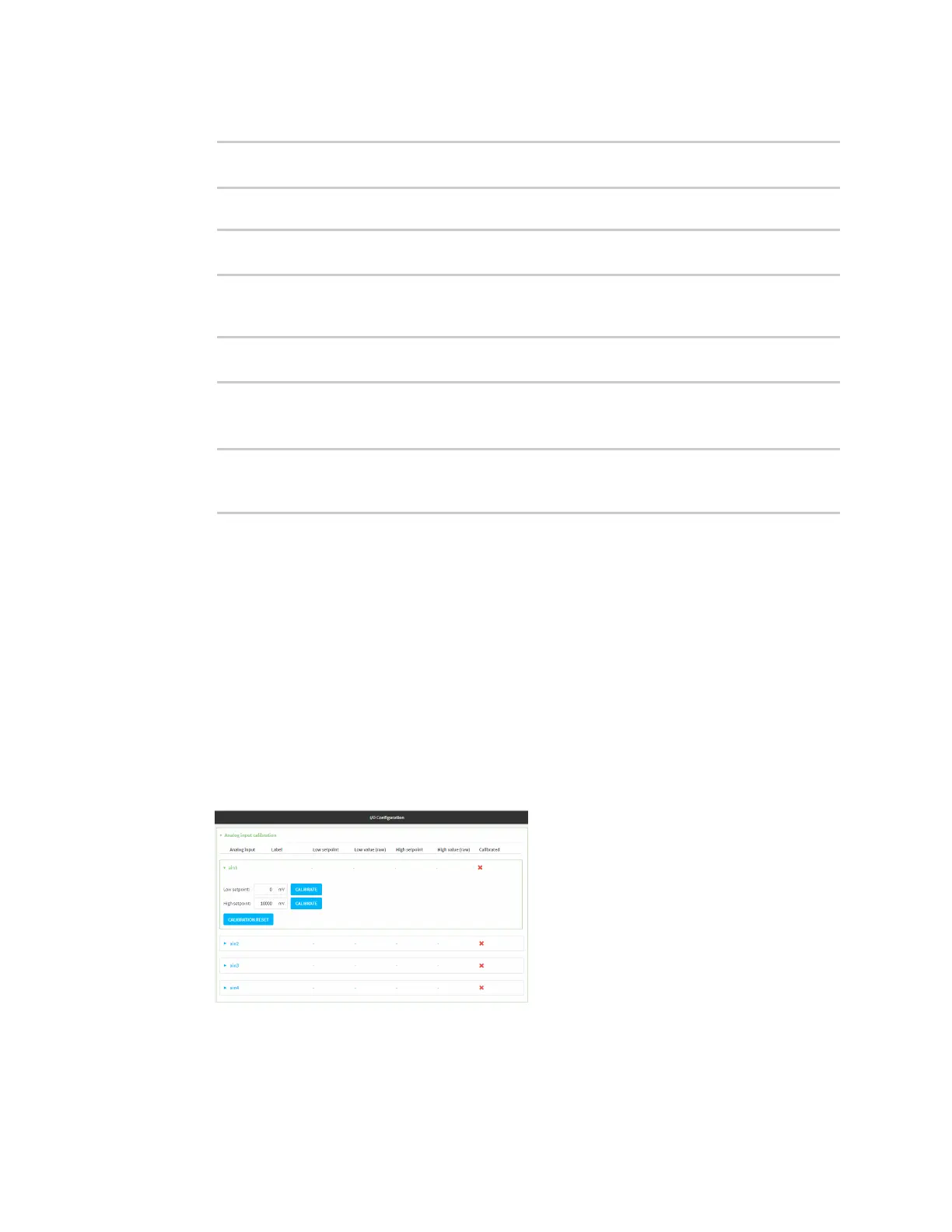

Calibrate analog input ports
To calibrate analog inputs:
Web
1. Log into the IX30 WebUI as a user with Admin access.
2. Click System > I/O Configuration.
3. Click to expand an analog input.
4. Type or select the Low setpoint and click Calibrate.
5. Type or select the High setpoint and click Calibrate.
