Safety
Information
Introduction
Product
Information
System
configuration
Mechanical
Installation
Electrical
Installation
Getting
Started
Basic
parameters
Running
the motor
Optimization
SMARTCARD
operation
Onboard
PLC
Advanced
parameters
Technical
Data
Diagnostics
UL Listing
Information
26 Unidrive SPM User Guide
www.controltechniques.com Issue Number: 3

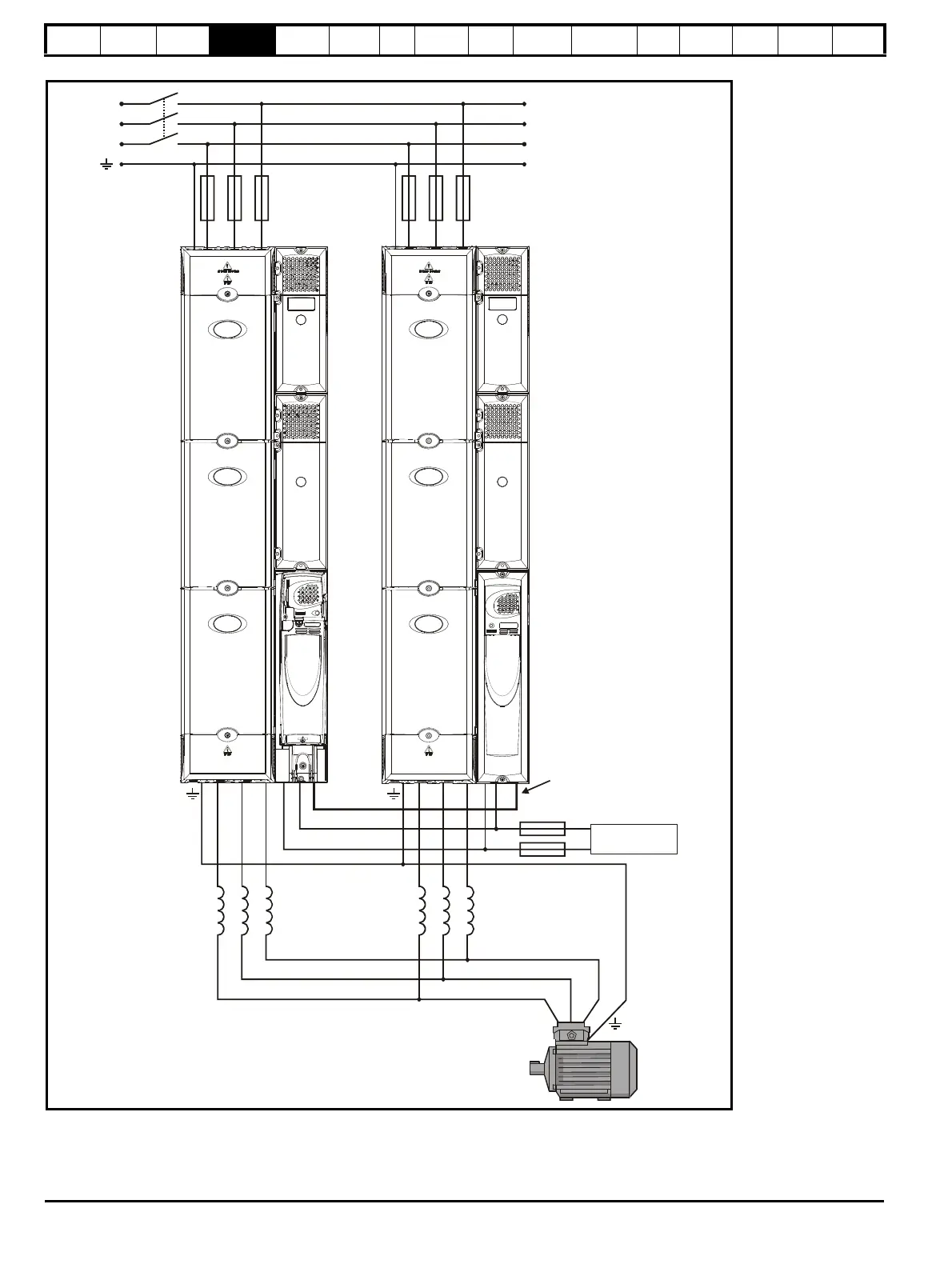

Figure 4-2 Layout for two or more Unidrive SPMA modules operating on a 3-phase AC supply
*Refer to Table 6-15 on page 74 for technical data and part numbers.
**Fuses are needed only if the power supply has a current rating of more than 10A.
***Refer to section 14.1.3 Supply requirements on page 267 for supply requirements.
Refer to the external 24V power supply current consumption column in the ratings tables in section 3.1 Ratings on page 12.
cable
OTLXXX
sharing
chokes
Fuses**
Master Slave
To Next Page
