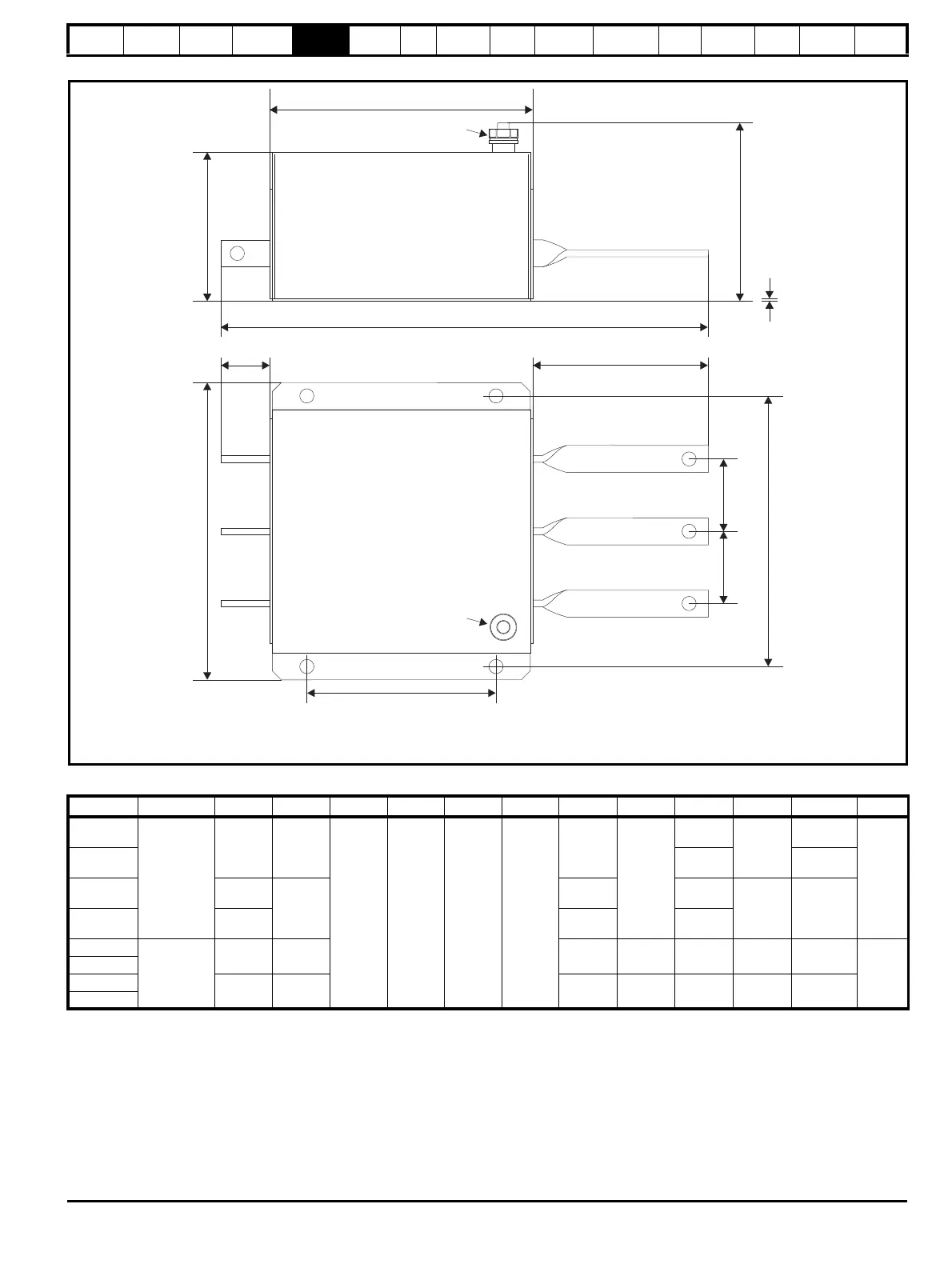

Figure 5-43 External EMC filter
Table 5-11 Optional external EMC filter details
V
A
GI
B
C
D
E
J
J
F
H
Z
ZZ
ZZ
V
Z
Z
Z
V: Ground stud: M10
Z: Hole size: 10.5mmÆ
W
CT part no. Manufacturer ABCDEFGH I J WV
4200-6603
Schaffner
191 mm
(7.520 in)
140 mm
(5.512 in)
110 mm
(4.330 in)
230 mm
(9.055 in)
210 mm
(8.268 in)
2 mm
(0.079 in)
38 mm
(1.496 in)
136 mm
(5.354 in)
66 mm
(2.600 in)
53.5 mm
(2.106 in)
295 mm
(11.614 in)
25Nm
(18.4
Ib ft)
4200-6604
128 mm
(5.040 in)
357 mm
(14.055 in)
4200-6315
220 mm
(8.661 in)
170 mm
(6.700 in)
43 mm
(1.700 in)
76 mm
(3.000 in)
60 mm
(2.362 in)
339 mm
(13.346 in)
4200-6316
226 mm
(8.900 in)
40 mm
(1.574 in)
73 mm
(2.874 in)
4200-6601
Epcos
191 mm
(7.520 in)
140 mm
(5.512 in)
42 mm
(1.654 in)
147 mm
(5.787 in)
127 mm
(5.000 in)
53.5 mm
(2.106 in)
364 mm
(14.330 in)
10Nm
(7.4
Ib ft)
4200-6602
4200-6313
220 mm
(8.661 in)
170 mm
(6.700 in)
43 mm
(1.700 in)
149 mm
(5.866 in)
76 mm
(3.000 in)
60 mm
(2.362 in)
339 mm
(13.346 in)
4200-6314
