Current sharing between drives
whose motor outputs are
connected in parallel
When used from a 3 phase supply, it is
preferable not to link the DC bus because
the impedance between DC and each
inverter output is just the impedance of
the output chokes. Also, on the input side,
input current sharing is determined only
by making the temperature of the two
rectifiers similar and by ensuring that both
rectifiers see the same impedance to the
line power supply.

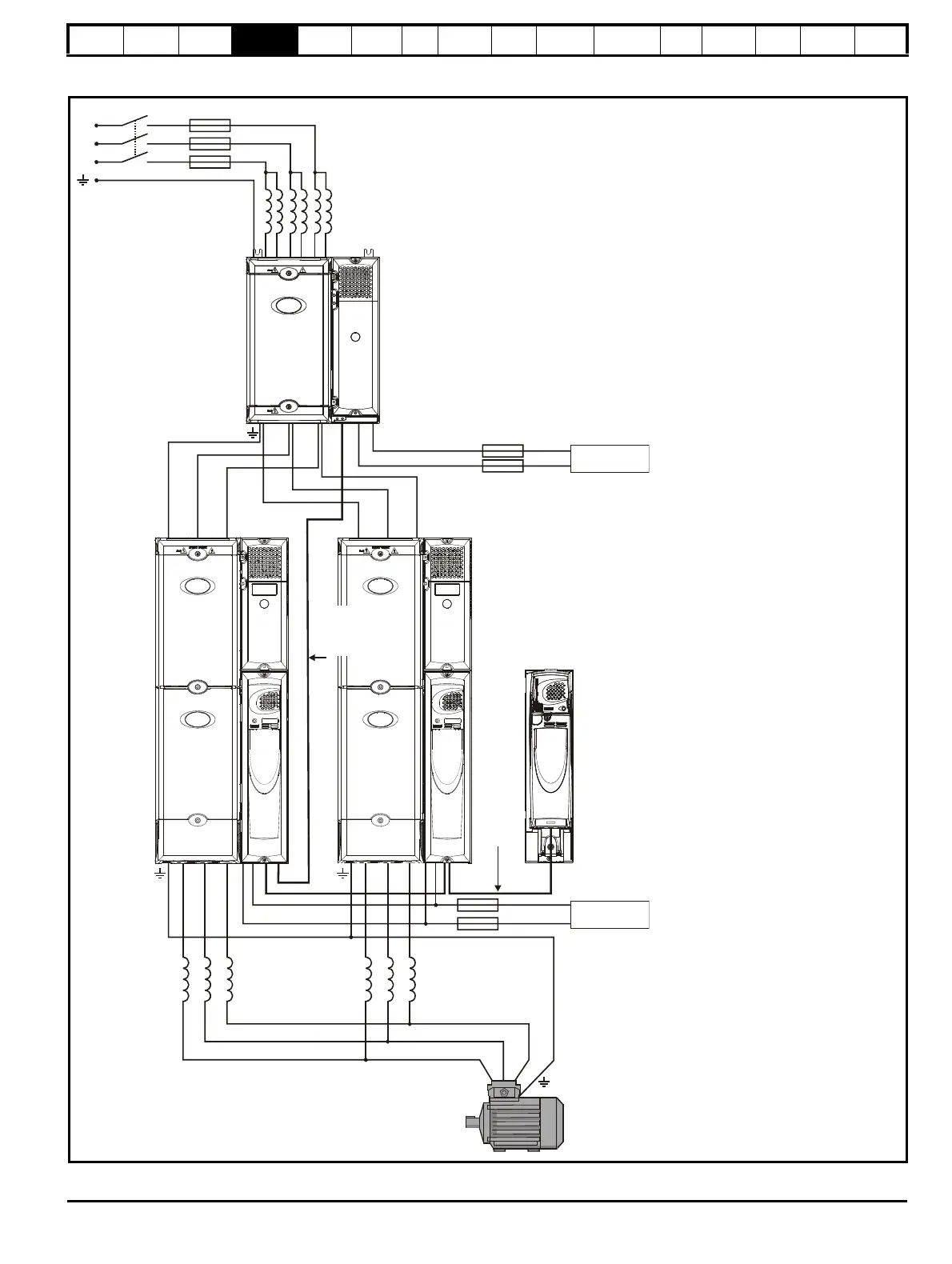

To use the remote mounted control
master pod, all modules in the system
must be slaves. This acts as a master
control unit and connects to the system as
shown.
The remote mounted control master pod
allows the user to place all control circuitry
in one low voltage cabinet and permits up
to a maximum of 10 Unidrive SPMD
modules to be connected in parallel.
