36 Unidrive SPM User Guide
www.controltechniques.com Issue Number: 3
5.3.2 Removing the finger-guard and DC terminal
cover break-outs

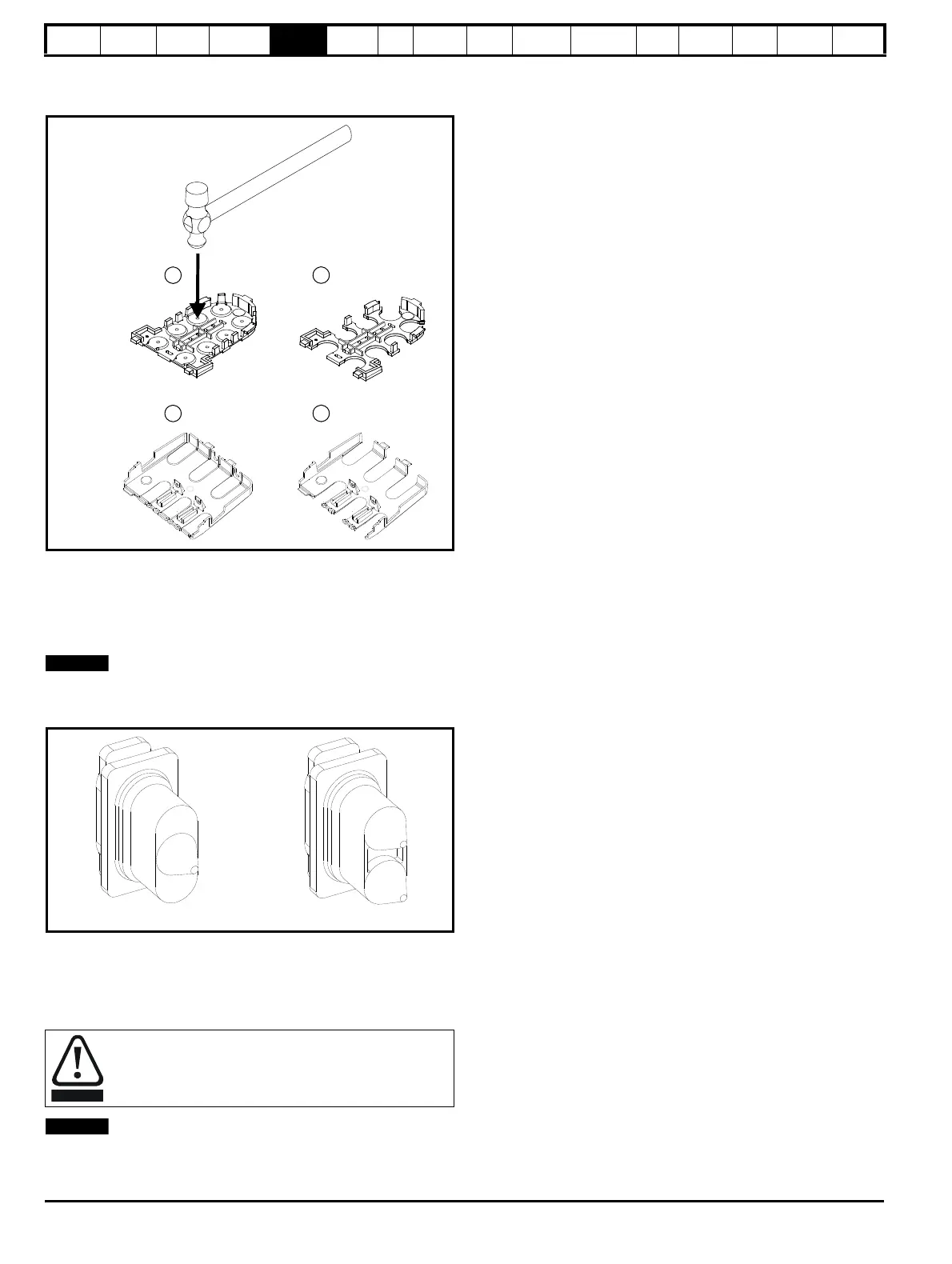

Figure 5-4 Removing the finger-guard break-outs
Place finger-guard on a flat solid surface and hit relevant break-outs with
hammer as shown (1). Continue until all required break-outs are
removed (2). Remove any flash / sharp edges once the break-outs are
removed.
Grommets are available for the Unidrive SPM finger-guards. Two
versions are available allowing for either single or double cable entries.
N
These grommets are required to meet IP20 when installed in an open
environment.
Figure 5-5 Unidrive SPM finger-guard grommets
The grommets are available as a kit of four grommets under the
following part numbers:
9500-0074 Kit of four single entry grommets
9500-0075 Kit of four double entry grommets
N
The finger guards and grommets must be installed correctly to meet UL.
1 2
All models
1 2
SPMA and
SPMD
Single cable entry grommet
Double cable entry grommet
The drive must not be run without the finger guards and
grommets installed because In the event of a catastrophic
failure, sparks maybe emitted.
