48 Unidrive SPM User Guide
www.controltechniques.com Issue Number: 3

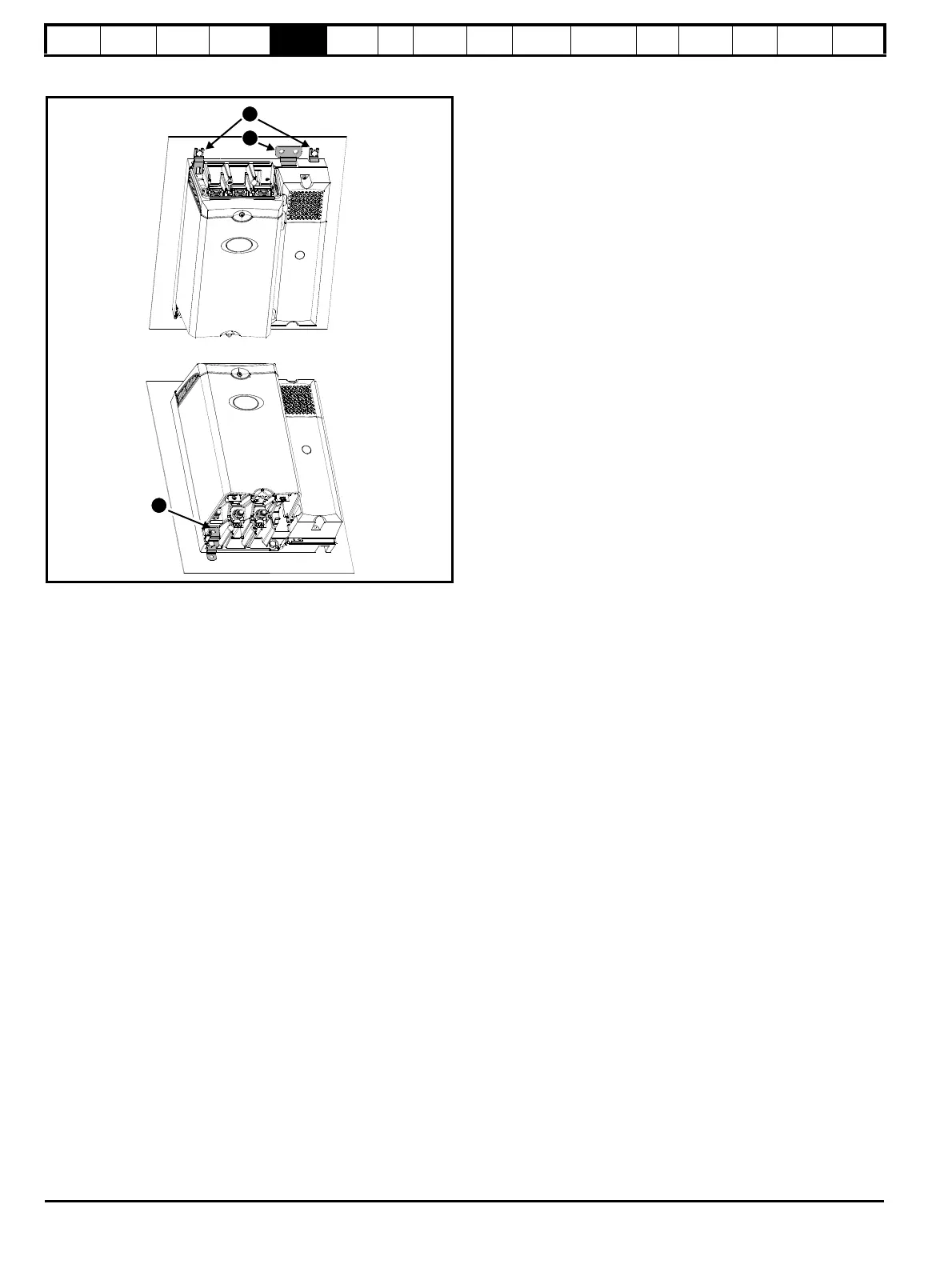

Figure 5-26 Installation of the Unidrive SPMC/U through panel
mounting brackets
1. Common Unidrive SPM mounting bracket. Ensure short section
attached to backplate
2. Unidrive SPMC/U supply ground bracket. M10x20 screw required to
mount bracket, maximum length 40mm (1.575in) used with vibration
resistant washer. Torque setting of 15 N m (11.1 lb.ft)
3. Unidrive SPMC/U motor ground bracket
