5.4 Solutions Module installation/removal

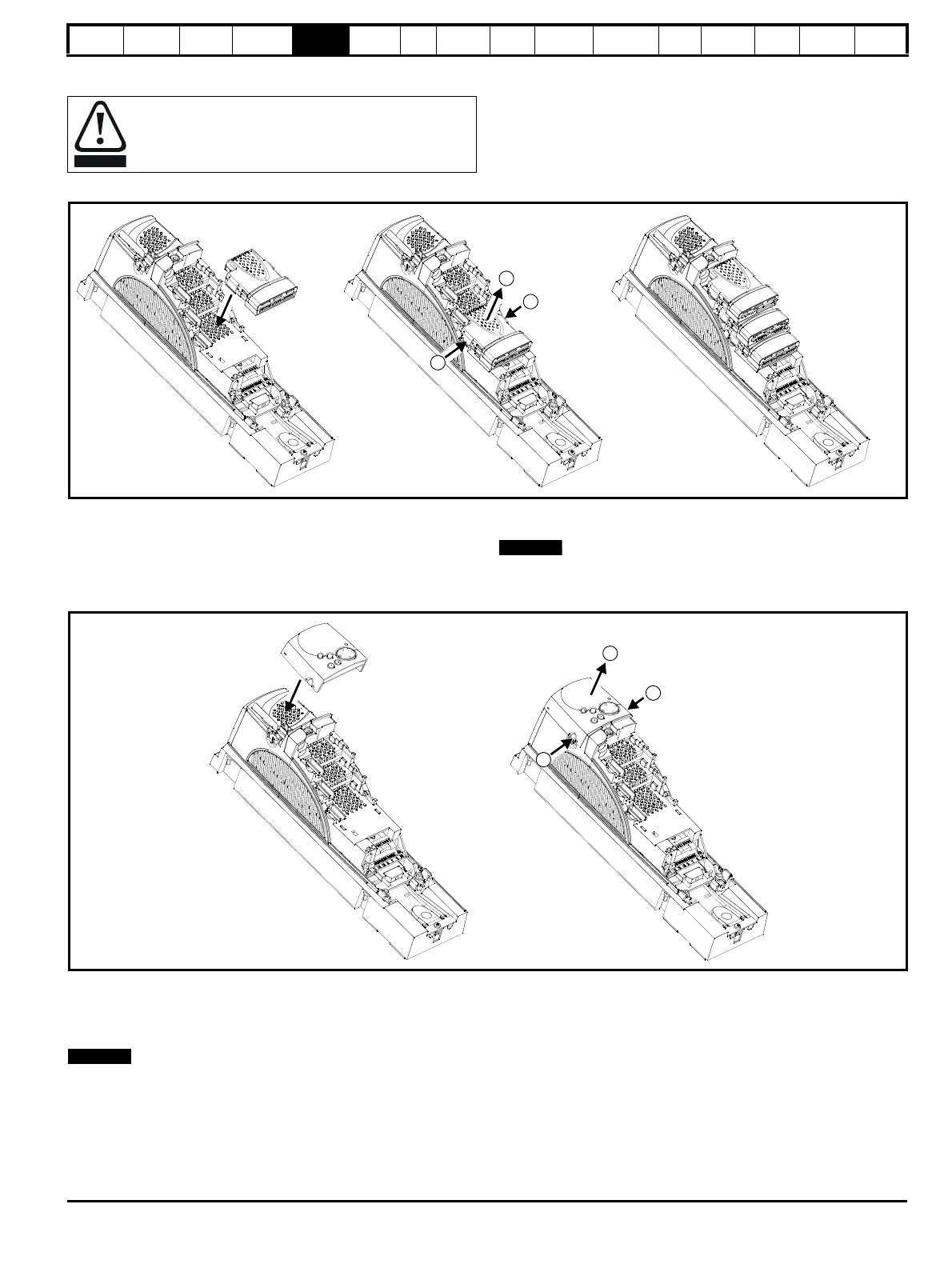

Figure 5-6 Installation and removal of a Solutions Module
To instal the Solutions Module, press down in the direction shown above
until it clicks into place.
To remove the Solutions Module, press inwards at the points shown (A)
and pull in the direction shown (B).
The drive has the facility for all three Solutions Module slots to be used
at the same time, as illustrated.
N
It is recommended that the Solutions Module slots are used in the
following order: slot 3, slot 2 and slot 1.
Figure 5-7 Installation and removal of a keypad
To install, align the keypad and press gently in the direction shown until it
clicks into position.
To remove, while pressing the tabs inwards (A), gently lift the keypad in
the direction indicated (B).
N
The keypad can be installed / removed while the drive is powered up and
running a motor, providing that the drive is not operating in keypad
mode.
Power down the drive before installing / removing the
Solutions Module.
WARNING
B
A
A
Solutions Module
in slot 1
Solutions Module
in slot 2
Solutions Module
in slot 3
NOTE
B
A
A
NOTE
