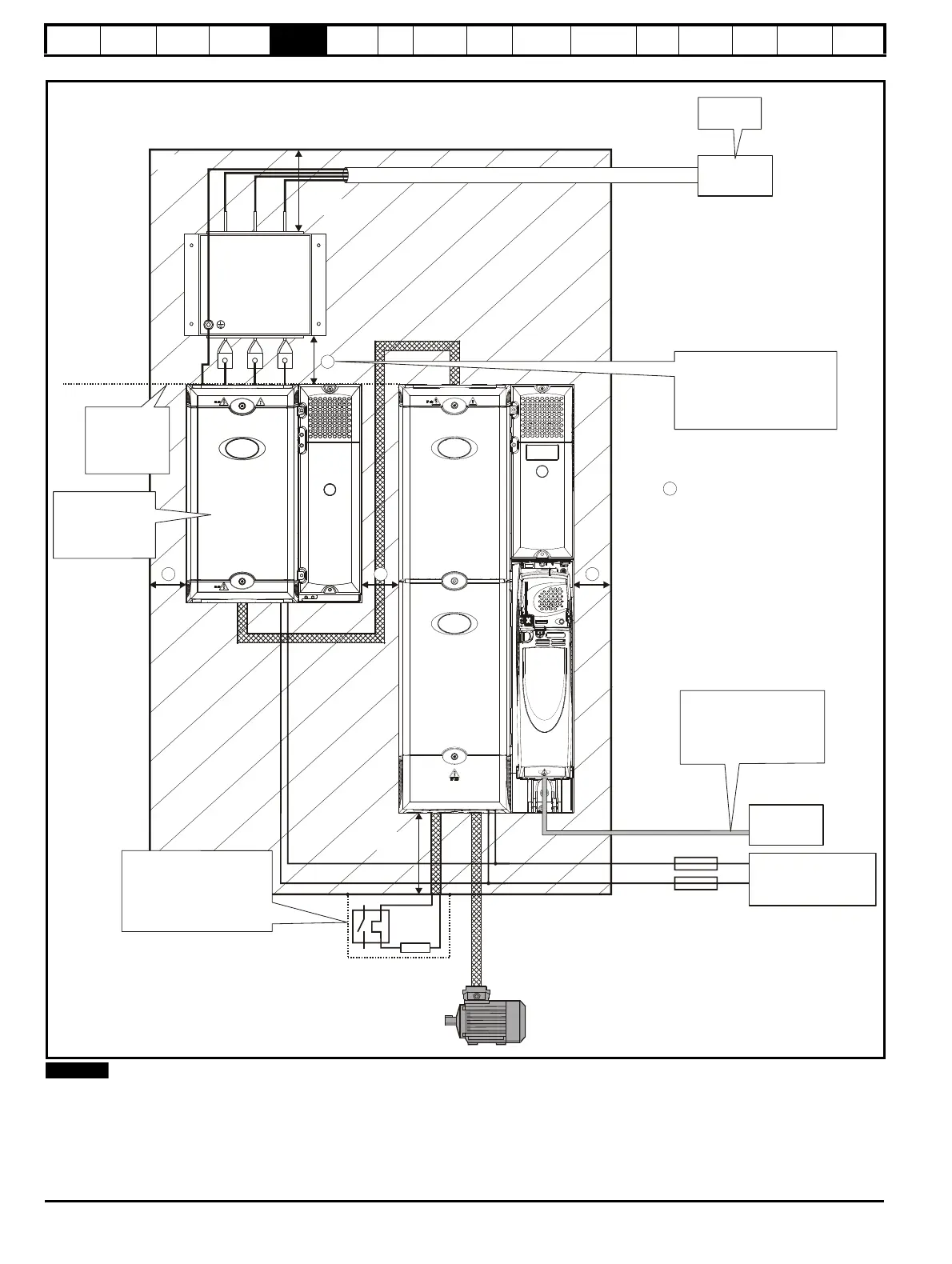

Figure 5-28 Alternative enclosure layout: Undocked Unidrive SPMD and SPMC
N
The Unidrive SPMC must not be mounted any higher than the SPMD. This is to prevent the heated air expelled from the Unidrive SPMD being
recirculated through the SPMC.
Note
For EMC compliance:
1) When using an external EMC
filter, one filter is required for
each drive
2) Power cabling must be at
least 100mm (4in) from the
drive in all directions
A
≥
60mm (2.362in)
Optional braking
resistor and overload
Locate optional braking
resistor external to
cubicle (preferably near
to or on top of the cubicle).
Locate the overload
protection device as required
External
controller
Signal cables
Plan for all signal cables
to be routed at least
300mm (12in) from the
drive and any power cable
A
A
Enclosure
≥ 100mm
(4in)
AC supply
contactor and
fuses or MCB
Locate as
required
Locate as
required
The Unidrive
SPMC must
not be mounted
any higher than
the SPMD
The Unidrive SPMC
can be mounted
upside down (e.g.
for easier wire
routing) if required
A
Ensure minimum clearances
are maintained for the drive
and external EMC filter. Forced
or convection air-flow must not
be restricted by any object or
cabling
A
Fan supply: 24Vdc
SPMA: 3.3A
SPMD1401 & 1402: 6.3A
SPMD1403 & 1404: 7.6A
Optional
external
EMC filter
≥ 100mm
(4in)
NOTE
