Emerson Process Management GmbH & Co. OHG4-16
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
4.6.1 Installation - X-STREAM XEGK, X-STREAM XEGP
Pin Signal
P3.1 Input 1
P3.2 Input 2
P3.3 Input 3
P3.4 Input 4
P3.5 Input 5
P3.6 Input 6
P3.7 Input 7
P3.8 GND for inputs 1-7
P3.9 unused
P3.10 Output 5, NC
P3.11 Output 5, NO
P3.12 Output 5, COM
P4.1 Output 6, NC
P4.2 Output 6, NO
P4.3 Output 6, COM
P4.4 Output 7, NC
P4.5 Output 7, NO
P4.6 Output 7, COM
P4.7 Output 8, NC
P4.8 Output 8, NO
P4.9 Output 8, COM
P4.10 Output 9, NC
P4.11 Output 9, NO
P4.12 Output 9, COM
P2.1 Output 10, NC
P2.2 Output 10, NO
P2.3 Output 10, COM
P2.4 Output 11, NC
P2.5 Output 11, NO
P2.6 Output 11, COM
P2.7 Output 12, NC
P2.8 Output 12, NO
P2.9 Output 12, COM
P2.10 Output 13, NC
P2.11 Output 13, NO
P2.12 Output 13, COM
Digital inputs
Digital outputs

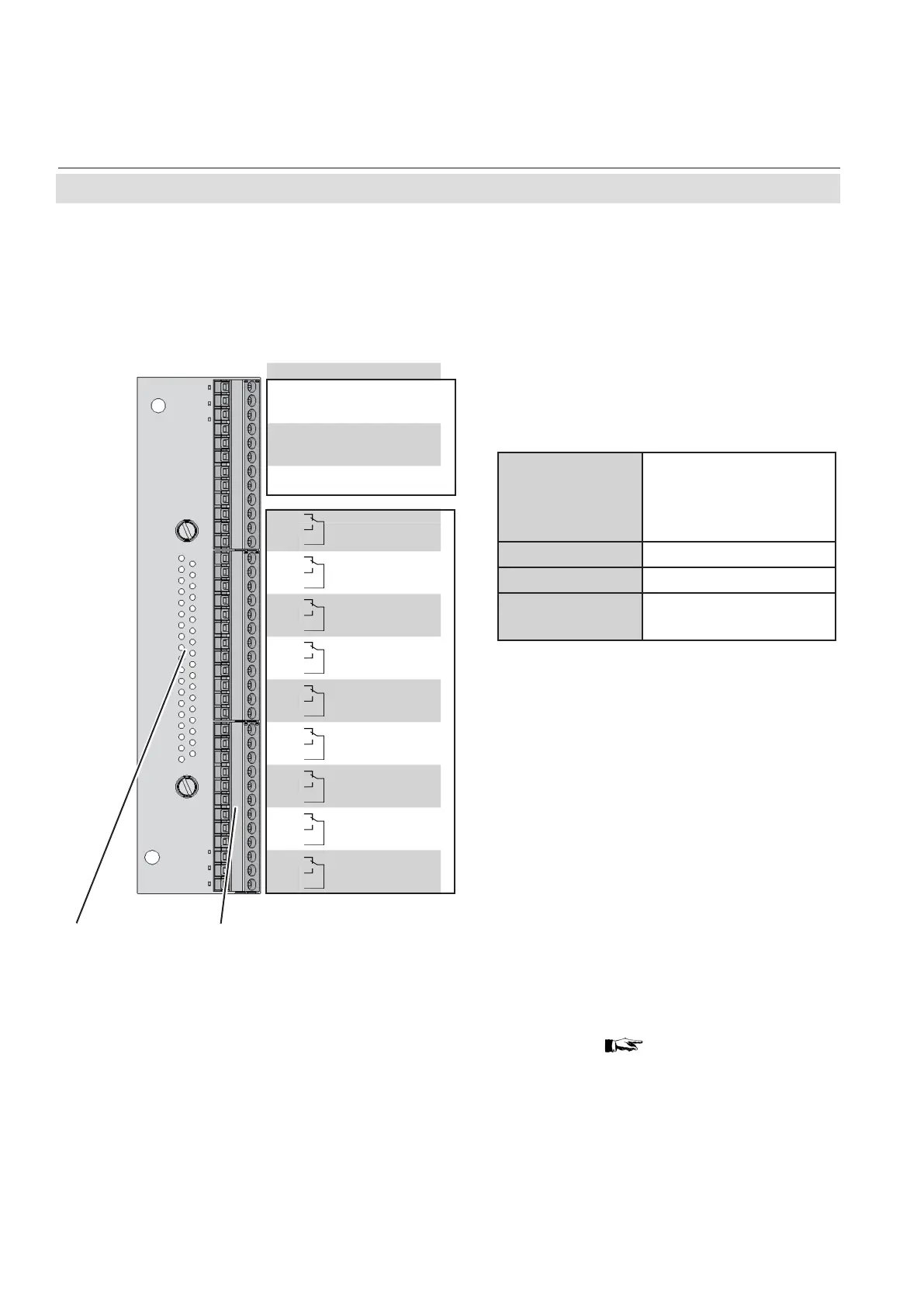

Fig. 4-11: Conguration of XSTD Terminal Adapter
An XSTD adapter can optionally be used
(XEGP only) to connect digital I/O cables to
screw-type terminals instead of Submin-D
plugs and sockets: it is plugged onto the X4.1
and X4.2 (if tted) Submin-D connectors on
the unit.
1 Connector for socket X4.1 / X4.2 (on reverse side)
2 Screw-type terminals
Note!
Consider the installation notes in section 4.7
1 2
Note!
The conguration illustrated here is that of
the rst adapter (on socket X4.1).
Inputs 8
–14 and outputs 14–22 are on the
second adapter (on socket X4.2), if installed.
Recommended
wire gauge:
0.14…1.5 mm
2
(AWG 26…AWG 16)
end sleeves not re-
quired
Skinning length: 5 mm (0.2")
Thread: M2
Min. tightening
torque:
0.25 Nm
(2.21 in.lb)
