1.1 Overview

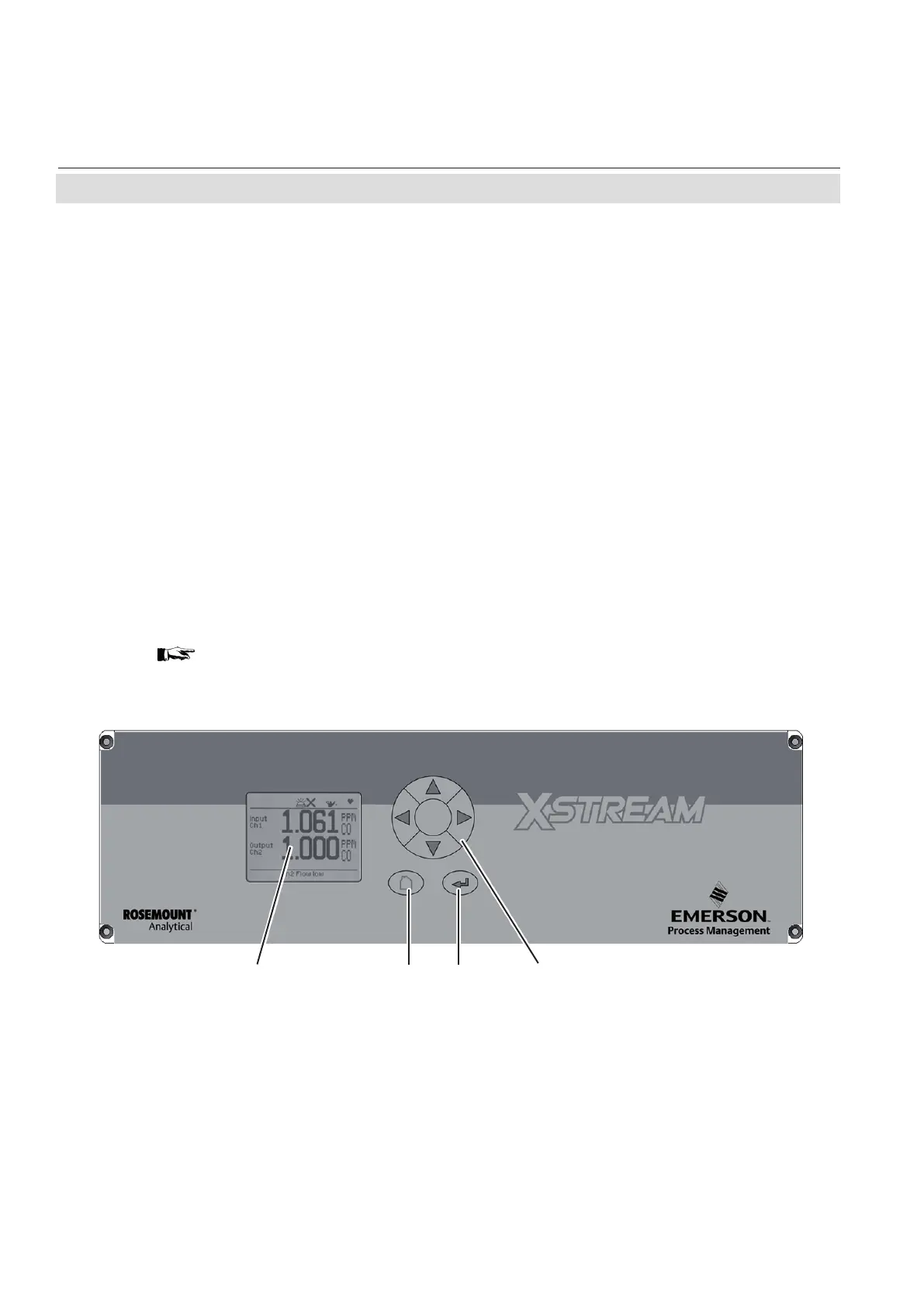

Fig. 1-1: X-STREAM Enhanced Front Panel (here X-STREAM XEGP)
1.1.1 The Front Panel
The graphic LCD shows measurement and
status information with plain text and sym-
bols.
The symbols are designed to indicate the dif-
ferent status 'Failure', 'Function check', 'Out
of specication' and 'Maintenance request' as
specied by the NE 107 standard. For further
information,
Chapter 8.
The analyzer software is operated by means
of only six keys.
The displays of outdoor versions are protected
with an impact tested glass panel, to withstand
even harsher conditions and to provide a higher
IP protection class of IP66 / NEMA Type 4X.
1.1 Overview
1 Graphic display
2 “Home“ key
3 “Enter” key
4 4 keys for settings and menu navigation
1 3 42
All X-STREAM Enhanced gas analyzers fea-
ture an easy-to-use graphical user interface,
which displays measurement values, status
and error messages, and menus for the input
of parameters.
For ease of use, the operator at any time
can select one of the following languages for
the display: English, French, German, Spa-
nish, Portuguese and Polish; Italian is under
preparation and may be available at time of
publishing this document.
