Emerson Process Management GmbH & Co. OHG4-18
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
4.6.1 Installation - X-STREAM XEGK, X-STREAM XEGP

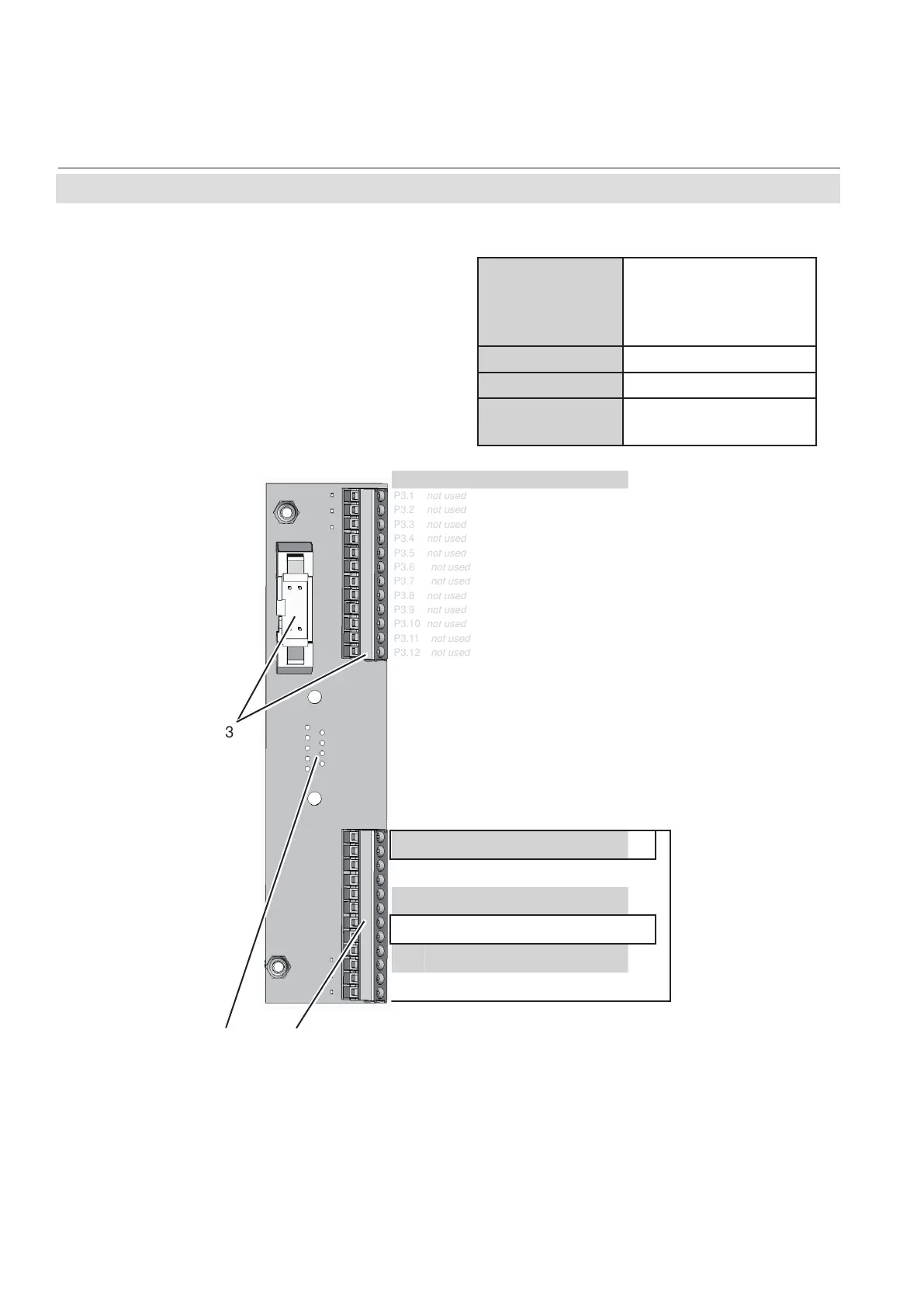

Fig. 4-13: Conguration of XSTI Terminal Adapter
A XSTI adapter can optionally be used (XEGP
only) to connect analog IN cables to screw-
type terminals instead of a submin-D plugs
and sockets. The adapter is plugged onto the
unit´s submin-D connector X5.
Analog Inputs
Pin Signal
P3.1 not used
P3.2 not used
P3.3 not used
P3.4 not used
P3.5 not used
P3.6 not used
P3.7 not used
P3.8 not used
P3.9 not used
P3.10 not used
P3.11 not used
P3.12 not used
P2.1 BR 1 t a wire bridge here to apply analog
P2.2 BR 1 signal in current mode to input 1
P2.3 Input 1 high (+)
P2.4 Input 1 high (+)
P2.5 Input 1 low (-)
P2.6 Input 1 low (-)
P2.7 BR 2 t a wire bridge here to apply analog
P2.8 BR 2 signal in current mode to input 2
P2.9 Input 2 high (+)
P2.10 Input 2 high (+)
P2.11 Input 2 low (-)
P2.12 Input 2 low (-)
{ }
{ }
IN1
Mode
IN2
Mode
1 Connector for socket X5 (on reverse side)
2 Screw-type terminals
3 Reserved for future use
1 2
3
Recommended
wire gauge:
0.14…1.5 mm
2
(AWG 26…AWG 16)
end sleeves not re-
quired
Skinning length: 5 mm (0.2")
Thread: M2
Min. tightening
torque:
0.25 Nm
(2.21 in.lb)
