7.6 Replacing Worn Out Sensors
Fig. 7-9: X-STREAM XEGP
Fig. 7-10: X-STREAM XEGK
7.6.2 Opening X-STREAM Analyzers
Remove the top cover after loosening the 12
screws.

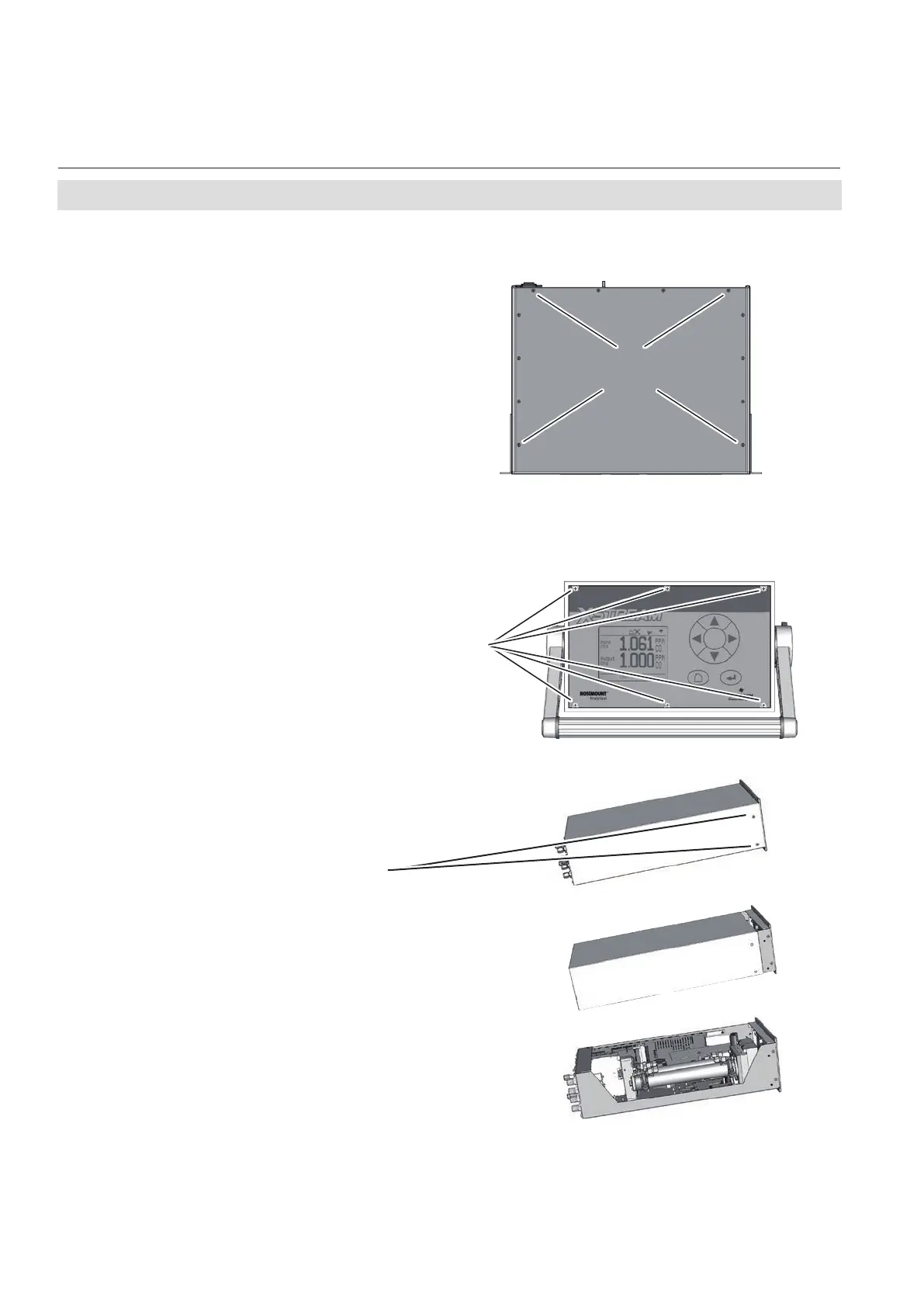

7.6.2.1 How to Open X-STREAM XEGP
7.6.2.2 How to Open X-STREAM XEGK
12 screws on top
of the instrument
If your instrument is equipped with a handle
• loosen the 6 screws at the front panel,
• to only get access to the cover screws,
push frame and handle about 2 cm / 1"
towards the rear.
Note!
To completely remove frame and handle,
you need to disconnect all gas and electrical
connections and push frame and handle over
the rear panel.
• push the cover towards the rear and re-
move it.


• remove the 4 screws for the cover,
(2 screws on each side of the instrument
