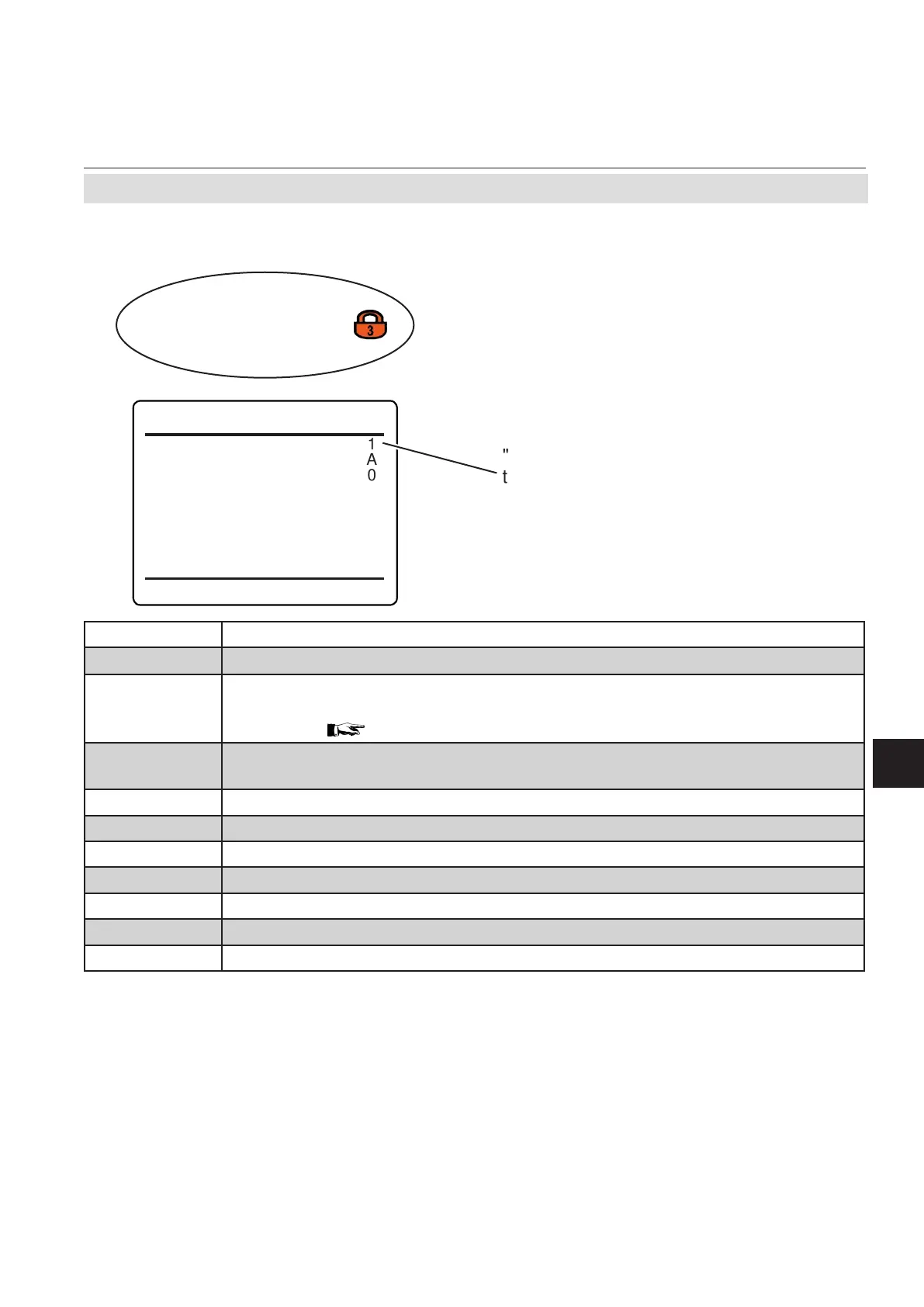

Software Menus
Signal: Comp1
OutRange: 0-20 mA
Low Scale: 0.00
Max Scale: 100.00
AutoScale: Yes
FailMode: Live
0/4 mA: 0.00
20 mA: 100.00
Hold: No
6.2.3.4.1.1 Setup Analog Outputn
6.2.3 Setup Menu
"Signal” species the value associated with
the selected output. The following options
(partly dependent on the number of measu-
ring channels and sensors installed) are
available:
Signal
*)
Description
None
The analog output is deactivated
0 mA
A 0 or 4 mA signal is generated, e.g. to check the signal processing in an
external system. Whether a 0 or 4 mA signal is generated, is set by the "Out
range” line ( next page).
20 mA
A 20 mA signal is generated, e.g. to check the signal processing in an exter-
nal system.
Comp1 ... 5 Gas concentration
Temp1 ... 5 Temperature
Press1 ... 5 Pressure
Flow1 ... 5 Flow
Calc A ... D Result of calculator
RawVal1 ... 5 Raw value
RangeID1 ... 5 ID of selected range
*) Numbers 1 to 5 refer to components [chan-
nels] 1 to 5: In case of secondary measure-
ments, this means, the selected value is that
of the sensor assigned to the given compo-
nent (Press2 is the pressure value of the
sensor assigned to component 2).
In contrast, capital letters A to D imply that
these calculator results are component
[channel] independent (Calc C is the result
of calculator C).
Setup..
In-/Outputs..
Analog outputs..
Output1...5..
Tab. 6-1: Analog Output Signals
