4.6.2 Installation - X-STREAM XEXF Field Housings

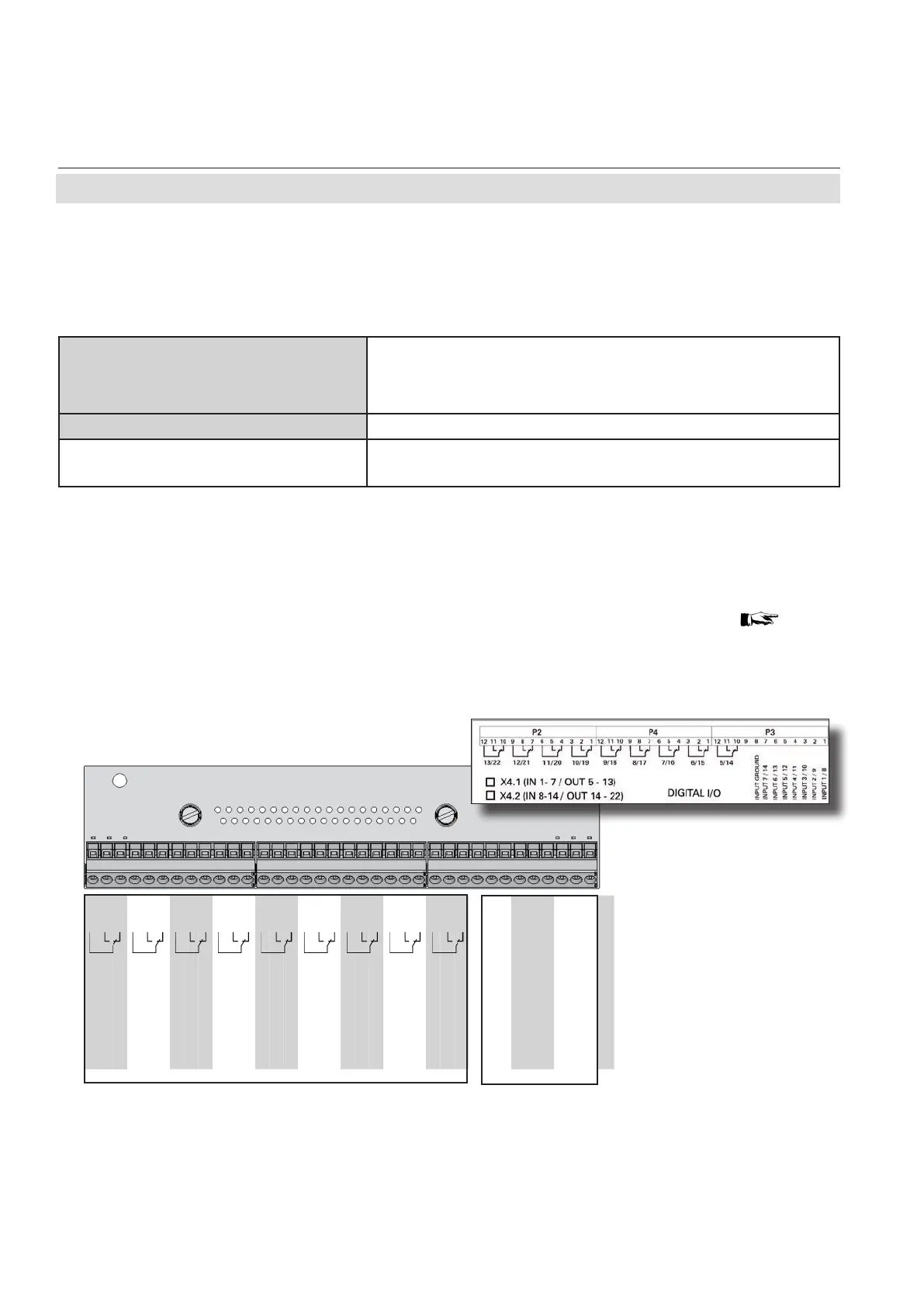

Fig. 4-21: X4: Terminal Blocks for Digital Inputs and Outputs
Notes!
Depending on configuration, an analyzer
can be tted with up to two of these ter-
minal blocks (the unit will then feature 14
digital inputs and 18 digital outputs). To aid
identication, the sockets are labelled X4.1
and X4.2 (see sample of label to the right).
Consider the installation notes in
section
4.7 and the notes on installing cable glands
on page 4-22.
Note!
The conguration illustra-
ted here is that of the rst
adapter.
Inputs 8–14 and outputs
14–22, if available, are on
the second adapter.
Pin Signal P3.1 Input 1 P3.2 Input 2 P3.3 Input 3 P3.4 Input 4 P3.5 Input 5 P3.6 Input 6 P3.7 Input 7 P3.8 GND for inputs 1-7 P3.9 unused P3.10 Output 5, NC P3.11 Output 5, NO P3.12 Output 5, COM P4.1 Output 6, NC P4.2 Output 6, NO P4.3 Output 6, COM P4.4 Output 7, NC P4.5 Output 7, NO P4.6 Output 7, COM P4.7 Output 8, NC P4.8 Output 8, NO P4.9 Output 8, COM P4.10 Output 9, NC P4.11 Output 9, NO P4.12 Output 9, COM P2.1 Output 10, NC P2.2 Output 10, NO P2.3 Output 10, COM P2.4 Output 11, NC P2.5 Output 11, NO P2.6 Output 11, COM P2.7 Output 12, NC P2.8 Output 12, NO P2.9 Output 12, COM P2.10 Output 13, NC P2.11 Output 13, NO P2.12 Output 13, COM
Digital inputs
Digital outputs
Digital inputs and relay outputs (option)
Terminals for these signals are located on the terminals board XSTD (terminal block X4; Fig. 4-21).
7 or 14 digital inputs
max. 30 V, internally limited to 2.3 mA
HIGH: min. 4 V; LOW: max. 3 V
common GND
9 or 18 additional relay outputs
max. load. 30 V; 1 A; 30 W resistive
Note
Dry relay change-over contacts, can be used as NO or
NC
