Emerson Process Management GmbH & Co. OHG 2-11
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
2
Technical Data
2.2.1 Model-Specic Technical Data: X-STREAM XEGK
This PSU can optionally be ordered for powering 2 tabletop units with a single common power
supply.
Model 10 A tabletop PSU
frontrear

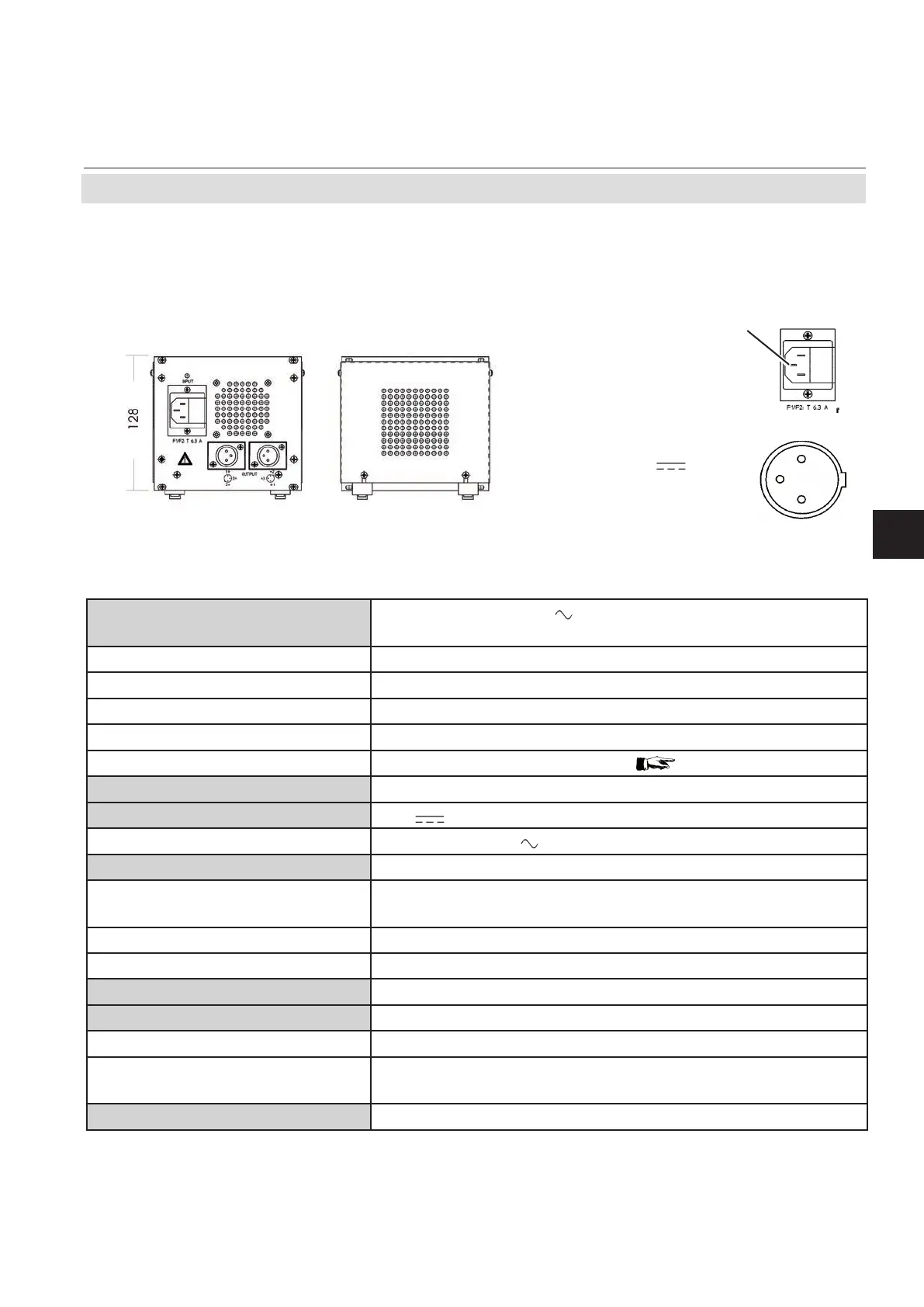

Fig. 2-5: 10 A Tabletop PSU
2
1
3
(shielding)
IEC power input connector
with fuse-holder
PE
Nominal input voltage 100–120 / 220–240 V 50/60 Hz
(Nominal voltage not to be changed by operator)
Input voltage range 85–132 / 176–264 V, 47–63 Hz
Input current max. 240 VA
115 V setting < 6 A
230 V setting < 2.8 A
Input
via rubber connector (IEC plug;
Fig. 2-5 ).
Power input fuses AC 230 V / T 6.3 A / 5x20 mm
Nominal output voltage 24 V
(+ 5 / -1 %)
Power loss typ. 29 W (230 V ; 24 V, 10 A)
Nominal output current max. 10 A, limited to 5 A per output
Surge protection
protection against short-circuits, power surges and no-load
running
Excess temperature protection derating from 60 °C /140 °F
Output two 3-pin XLR socket
Weight approx. 2 kg / 4.4 lb
Compliances
Safety EN 60950, EN 50178, UL1950, UL/CSA-22.2 No 950-M90
EMC
EN 50081-1, class B (emitted interference), EN 50082-2,
class A (interf. resistance), et al
Recommended clearance 15 mm / 0.6" in front and behind
All dimensions in mm [in]
Pin 1: ME
Pin 2: + 24 V
Pin 3: 0 V (⊥)
shield: housing ange
Pin conguration for 24 V DC output socket
