Emerson X-STREAM XE User Manual

Emerson Process Management GmbH & Co. OHG2-14
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012

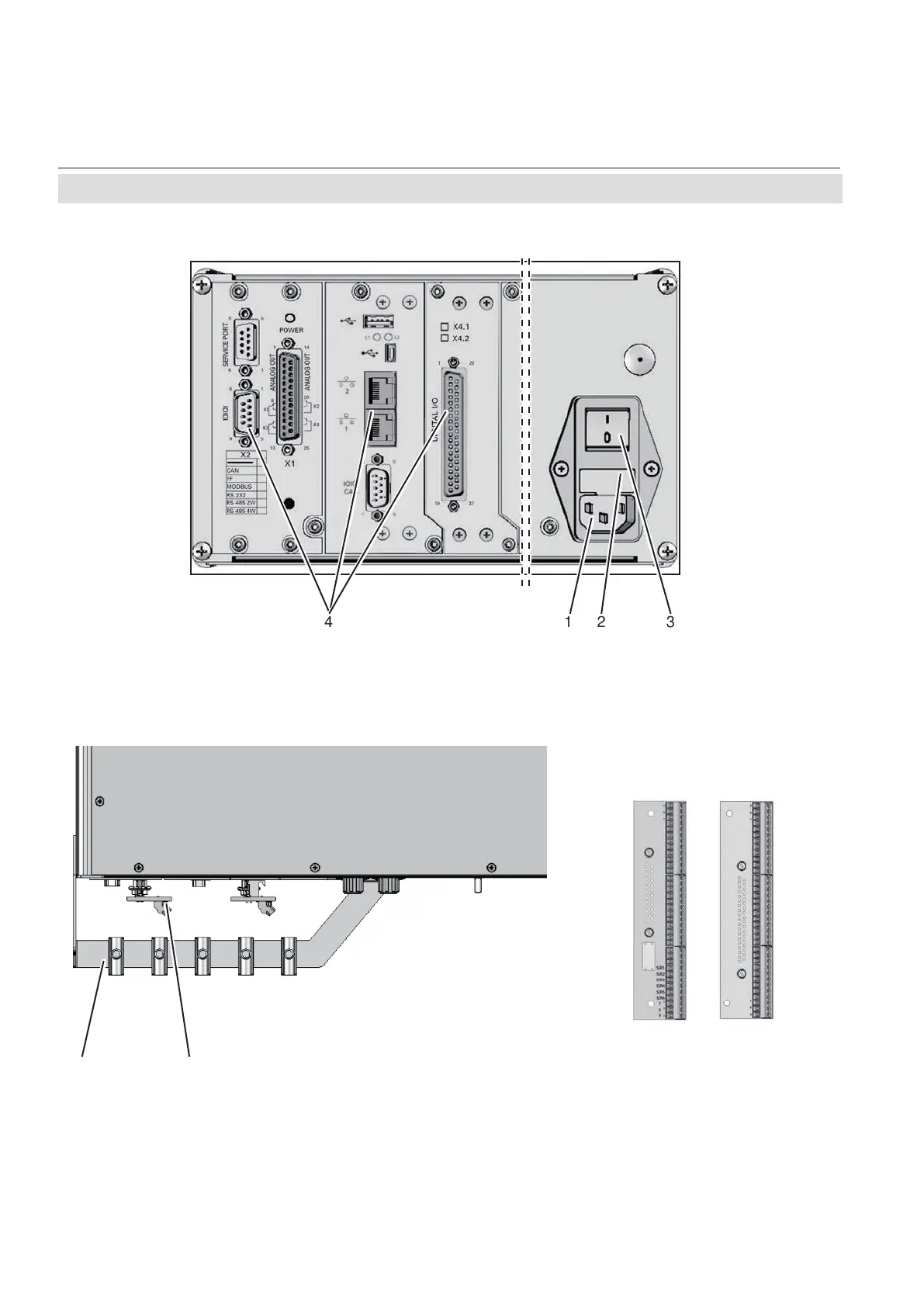

Fig. 2-7: X-STREAM XEGP - Power Supply and Signal Connections
1 Power connector
2 Fuse holder
3 Power switch
4 Signal connectors
(some optional)
31 24
2.2.2 Model-Specic Technical Data: X-STREAM XEGP
Fig. 2-8: X-STREAM XEGP - Signal Connections With Screw-Type Terminal Adapters (Top View)
1 Strain relief with cable shield
grounding clamps (quantity varies
depending on installed options)
2 Terminal adapters
1 2
Terminal adapters (detail)
