1.8 X-STREAM XEFD
HEAVY INSTRUMENT
The model X-STREAM XEFD, intended for outside and wall mounted use,
weighs approx. 63 kg (139 lb), depending on options installed.
Two people and/or lifting equipment is required to lift and carry these units.
Use the transport lugs located on the sides of the instrument.
Take care to use anchors and bolts specied to be used for the weight of
the units!
Take care the wall or stand the unit is intended to be installed at is solid
and stable to support the weight!

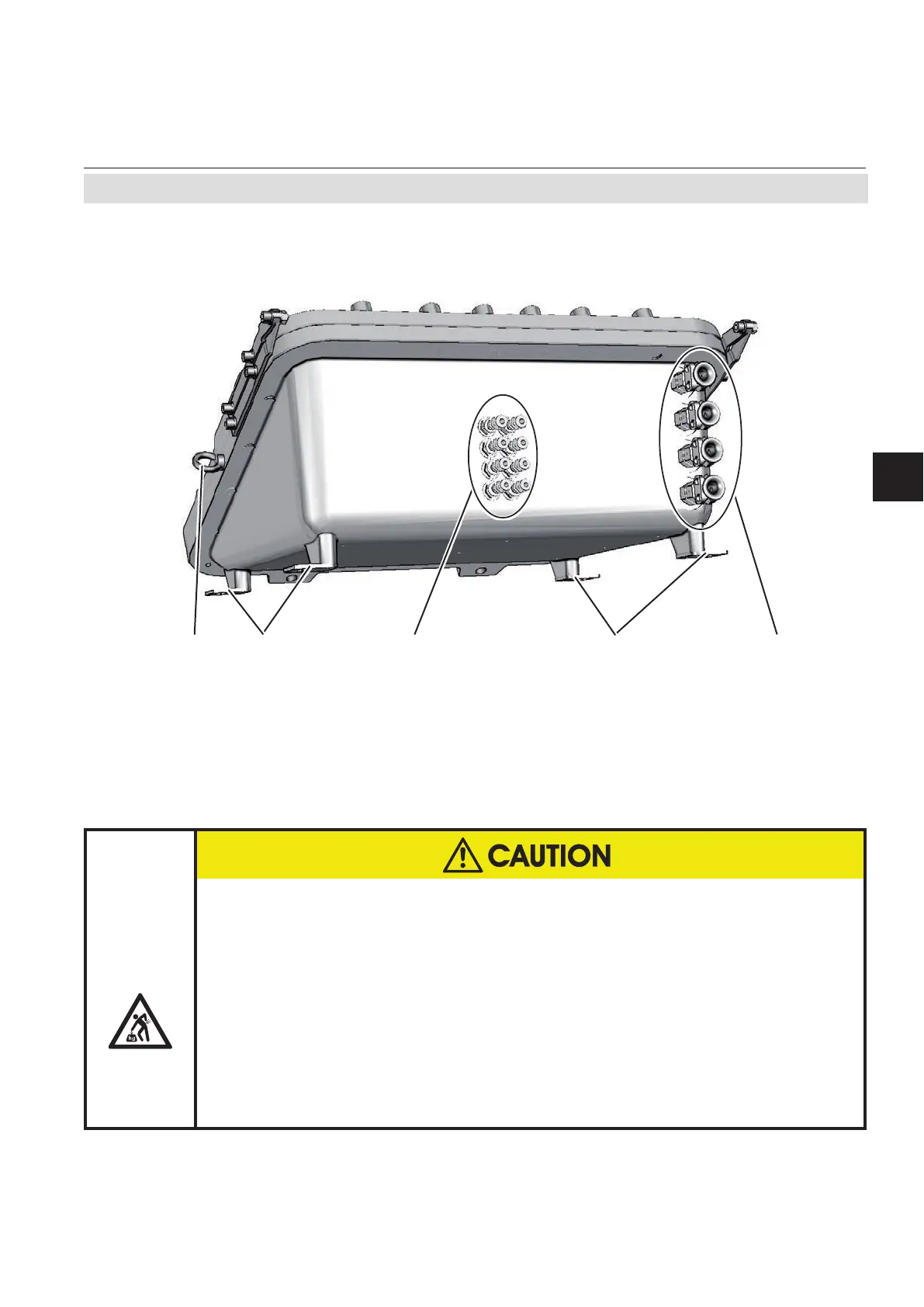

Fig. 1-14: X-STREAM XEFD - Bottom View
1 Cable inlets for power and signal cables
2 Gas tube ttings, protected by ame arrestors
3 4 brackets for wall mounting
4 Transport lug
1234 3
1
