Emerson Process Management GmbH & Co. OHG4-20
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
4.6.2 Installation - X-STREAM XEXF Field Housings
4.6.2 X-STREAM XEXF (Single XEF; Dual XDF)
Fitted with four eyebolts and featuring IP66/
Type 4X protection, the X-STREAM XEXF

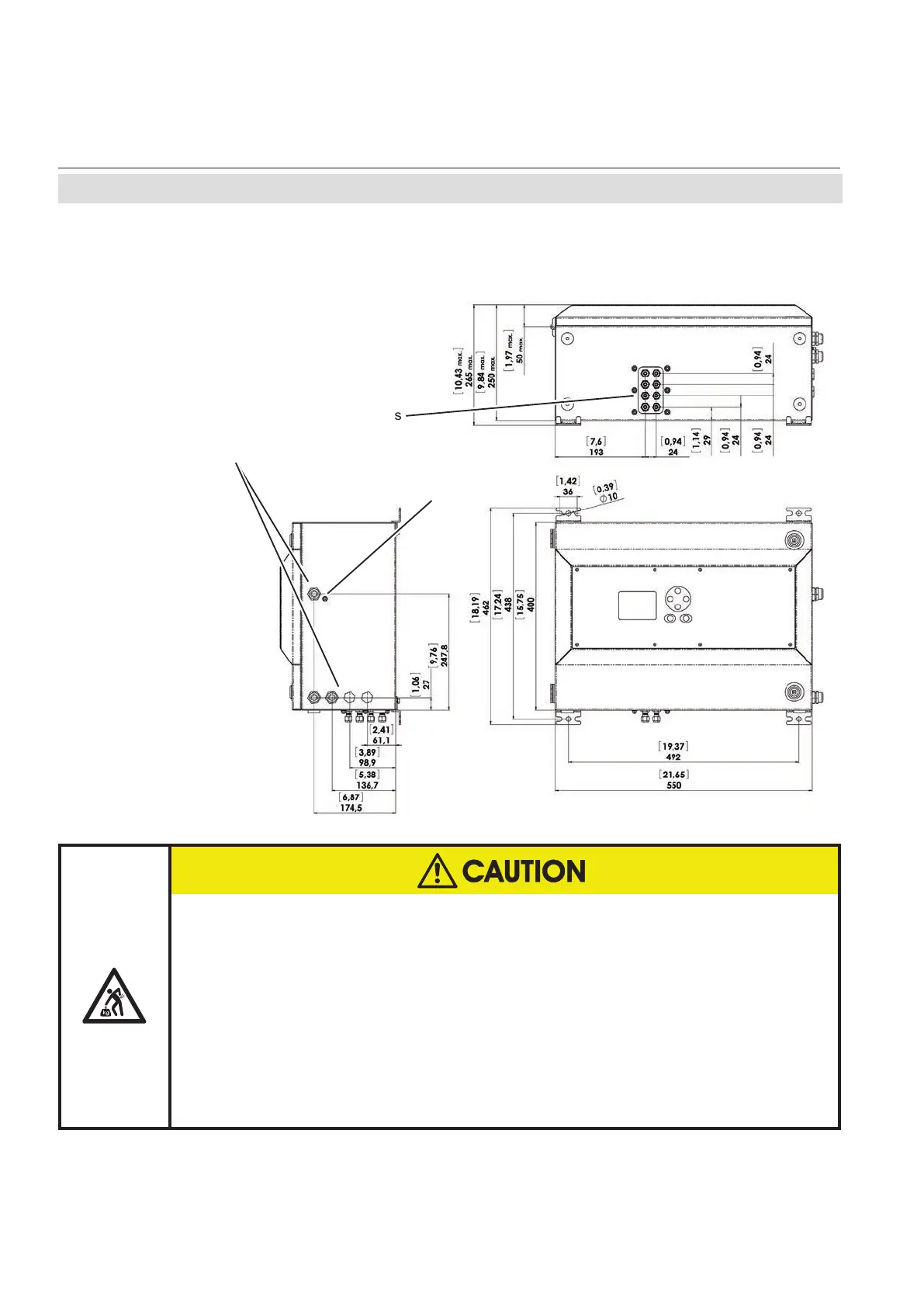

Fig. 4-15: X-STREAM XEF - Dimensions for Installation
eld housings can be mounted in the open
air on a wall or frame with no extra work.
HEAVY INSTRUMENT
X-STREAM XEF / XDF analyzers, intended to be wall mounted and/or outdoor
installed, weigh up to 45 kg (99 lbs), depending on the chosen options!
Use two persons and/or suitable tools for transportation and lifting these
instruments!
Take care to use anchors and bolts specied to be used for the weight of
the instruments!
Assure that the wall / device for installation is sufciently attached and
stable to carry the instrument!
All dimensions in mm
[inches in brackets]
Cable glands
Gas ttings
Connector
for potential
equalization
Note!
Take care to re-
serve space at the
right side of the in-
strument for laying
the cables!
