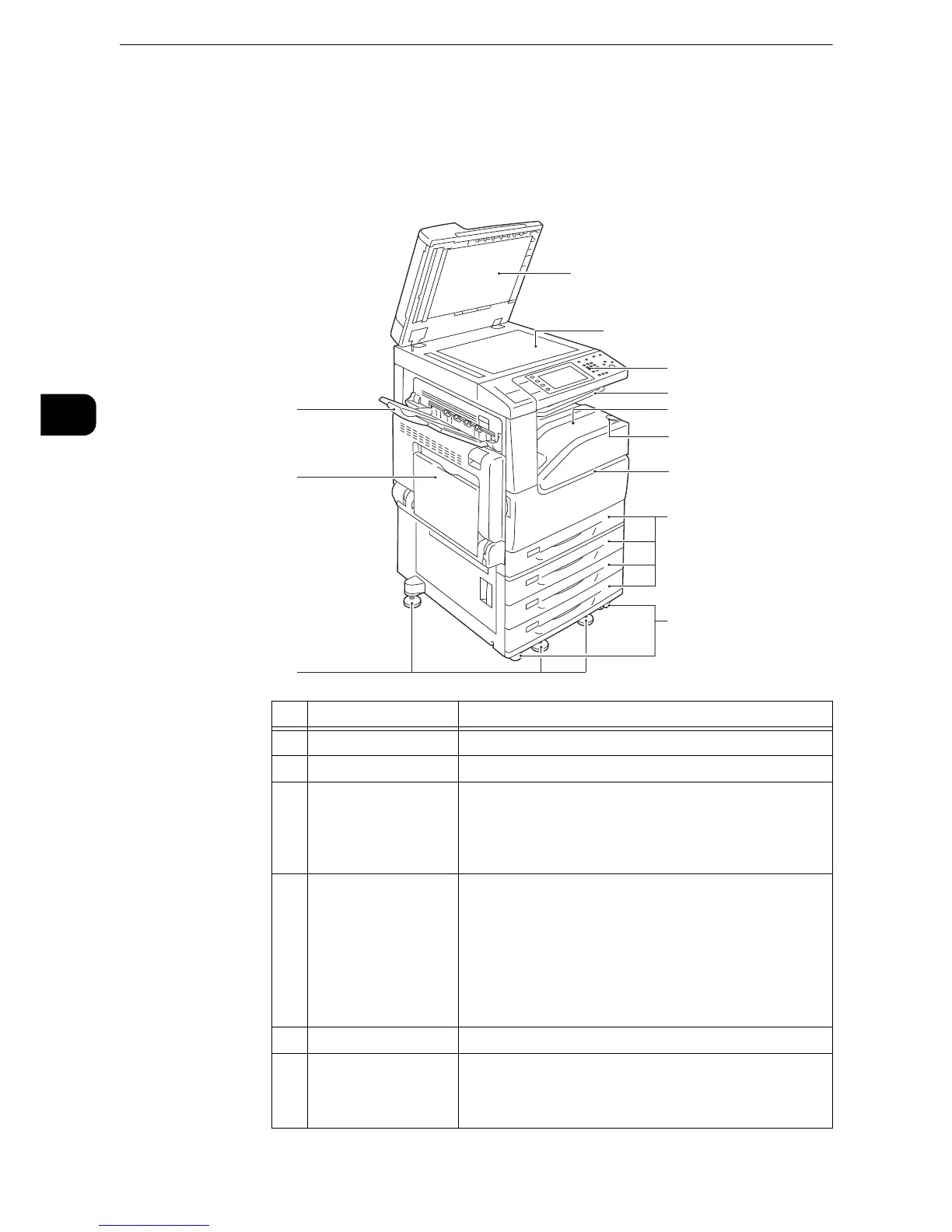

Machine Components
The following describes machine components and their functions.
îš„ Main unit
No. Component Function
1 Document cover Holds a document in place.
2 Document glass Load a document here.
3 Control panel Consists of operation buttons, LED indicators, and a touch
screen.
z
Refer to "Control Panel" (P.74).
4 Exit 2 Tray Outputs are delivered here by separating the center tray
into two levels.
z
When the Exit 2 Tray is installed, select [Installed] in [Extra
Center Tray] in the System Administration mode. For more
information, refer to "Tools" > "Common Service Settings" >
"Other Settings" > "Extra Center Tray" in the Administrator
Guide.
5 Front cover Open this cover to replace the consumables.
6 Power switch Switches the power of the machine on and off.
z
Refer to "Power Source" (P.65).
5
6
7
8
9
11
10
12
1
3
4
2
