5. VECTOR (S57) CHARTS
5-10
5.5.3 Catalog of AIO cells

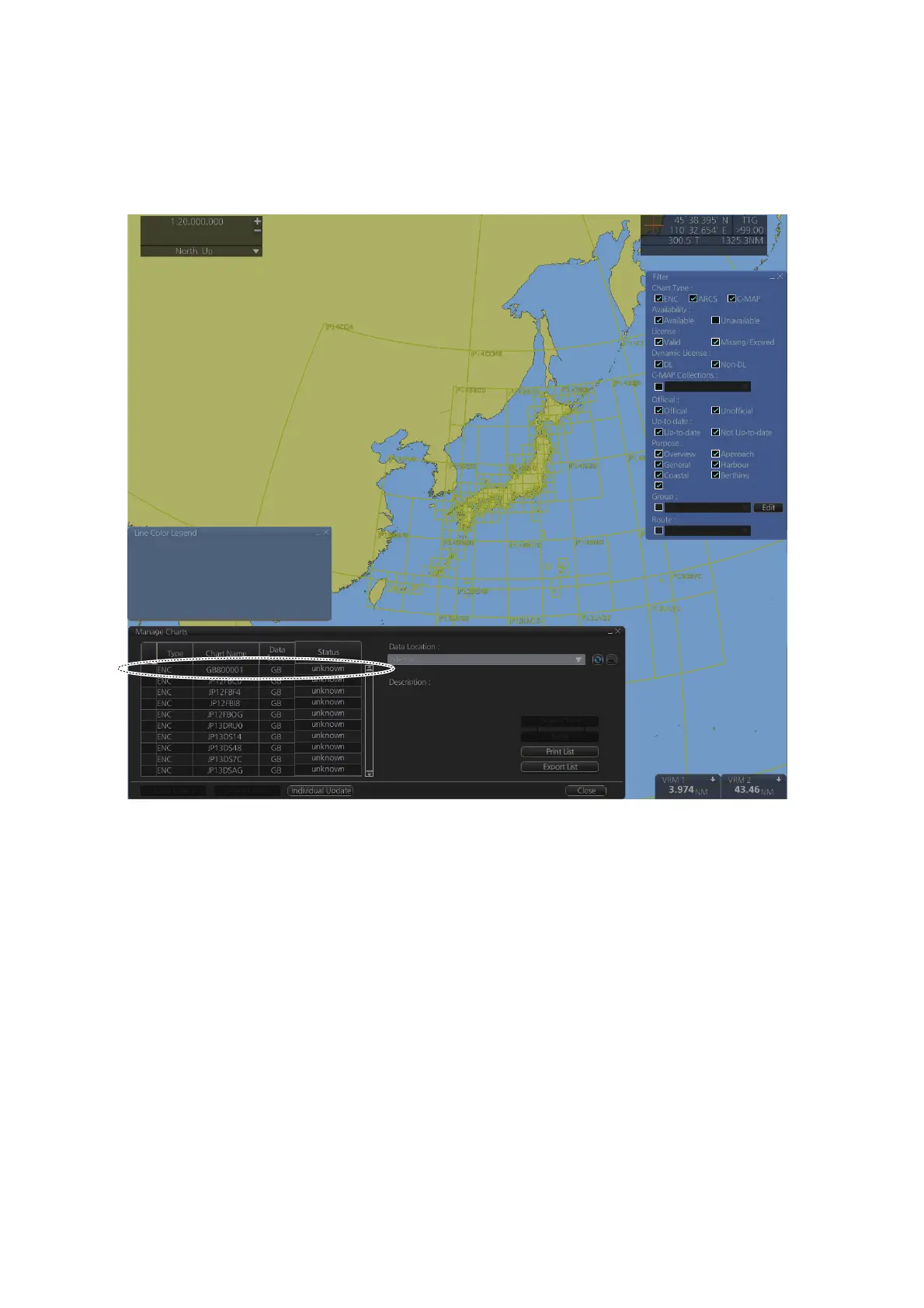

A catalog of AIO (NtoM) cells is maintained in the [Manage Charts] dialog box. To
show this box, get into the Chart maintenance mode then click the [Manage Charts]
button on the InstantAccess bar
™
. The AIO cell is GB800001.
NtoM
__
Chart is up-to-date
__
Permit is expired
__
Chart is not up-to-date
__
Permit available, chart not installed
__
Permit not available
__
Chart’s status is unknown
__
Chart is withdrawn or corrupted

Furuno FMD-3200 Specifications

General

Display Type	LCD
Power Supply	24 VDC
Operating Temperature	-15°C to +55°C
ECDIS	Yes
Waterproof Standard	IP22
Interfaces	USB
Chart Format	S-57, S-63
Weight	Approx. 9.5 kg
