4-34 F650 Digital Bay Controller GEK-106310AB
4.2 HUMAN MACHINE INTERFACE (HMI) 4 HUMAN INTERFACES. SETTINGS & ACTUAL VALUES
4

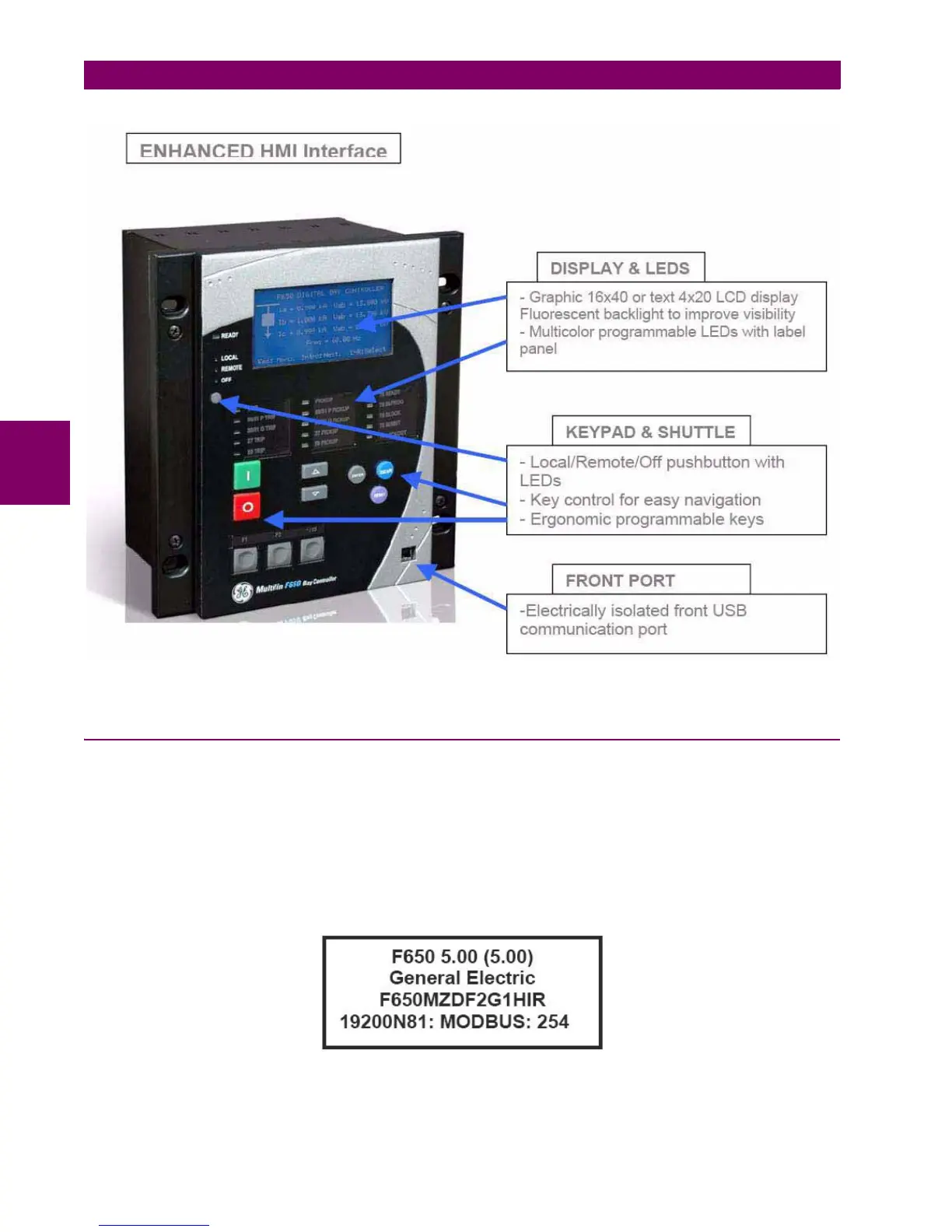

Figure 4–16: ENHANCED HMI INTERFACE
4.2.1 DISPLAY
F650 units are available with two different options for the front display. The first option is an alphanumerical display of 4
lines with 20 characters each, and the second option is a graphical display of 16 lines with 40 characters each (128x240
pixels), being B the ordering code option for the text display model (basic), and M the code for the mimic display
(graphical).
The boot code and firmware versions can be seen in the relay text main screen, this screen is the default screen in the text
menu for all models: After the text "F650", appears the relay firmware version (3.44in the example), and between brackets
the boot program version (4.10 in the example), followed by "General Electric", the relay model and the default front port
(COM2) communication parameters.
Figure 4–17: TEXT MAIN SCREEN
