GEK-106310AB F650 Digital Bay Controller 5-135
5 SETTINGS 5.6 INPUTS/OUTPUTS
5
5.6.7.2 VIRTUAL INPUTS STATUS MONITORING:
Actual > Inputs/Outputs > Virtual Inputs > Virtual Input Latched > Virtual Input Self-Reset
Table 5–108: VIRTUAL INPUTS STATUS
Text assignment for virtual input is made at Setpoint > Relay Configuration > Virtual Inputs. It should be taken into
account that the text assigned for virtual inputs in the relay configuration screen are only for file management, they are not
sent to the relay.
5.6.8 VIRTUAL OUTPUTS
There are 512 virtual outputs that may be assigned via Logic configuration. If not assigned, the output will be forced to OFF
(Logic 0). An ID may be assigned to each virtual output. Virtual outputs are resolved in each pass through the evaluation of
the logic equations. For more detailed information see chapters 5.9 and 5.10 in this manual.
5.6.9 VIRTUAL OUTPUTS LATCHED
There are 16 virtual outputs latched that may be assigned via Logic configuration. If not assigned, the output will be forced
to OFF (Logic 0). Virtual outputs are resolved in each pass through the evaluation of the logic equations. These virtual
outputs latched can only be assigned as an S/R output, they only will be linked to a PLC's S/R output and their values
remain after switching off- on the unit

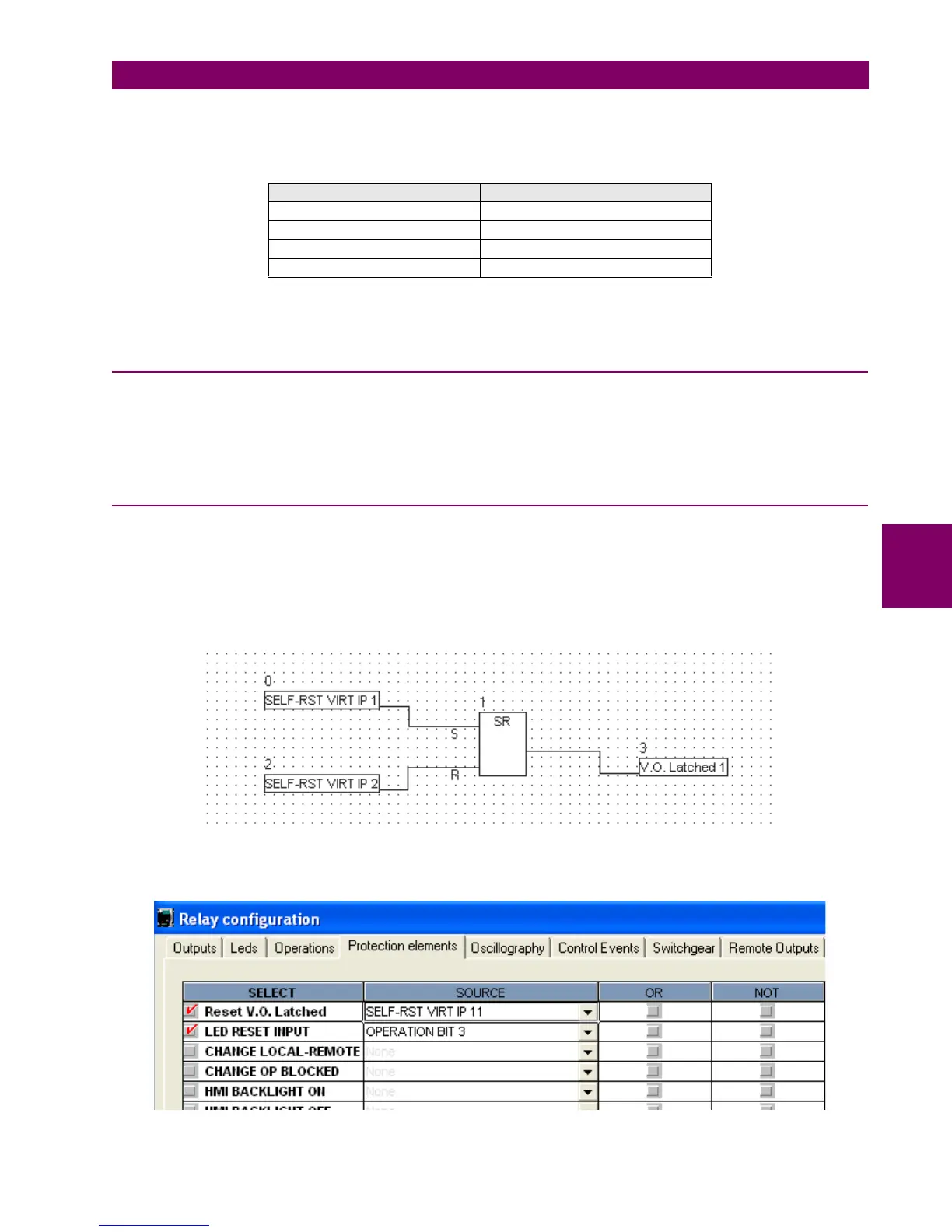

These virtual output latched may be reset by a PLC setting as it is shown in the following figure
VIRTUAL INPUTS LATCHED VIRTUAL INPUTS SELF-RESET
LATCHED VIRT IP 1 SELF-RST VIRT IP 1
LATCHED VIRT IP 2 SELF-RST VIRT IP 2
……
LATCHED VIRT IP 32 SELF-RST VIRT IP 32
