GEK-106310AB F650 Digital Bay Controller 4-57
4 HUMAN INTERFACES. SETTINGS & ACTUAL VALUES 4.2 HUMAN MACHINE INTERFACE (HMI)
4
4.2.6 GRAPHIC DISPLAY
4.2.6.1 ONE-LINE DIAGRAM
In models with graphic display (F650M) default main screen is the single-line diagram. This single-line diagram can be
configured using EnerVista 650 Setup software by choosing the HMI menu inside Relay Configuration (Setpoint>Relay
Configuration>HMI).

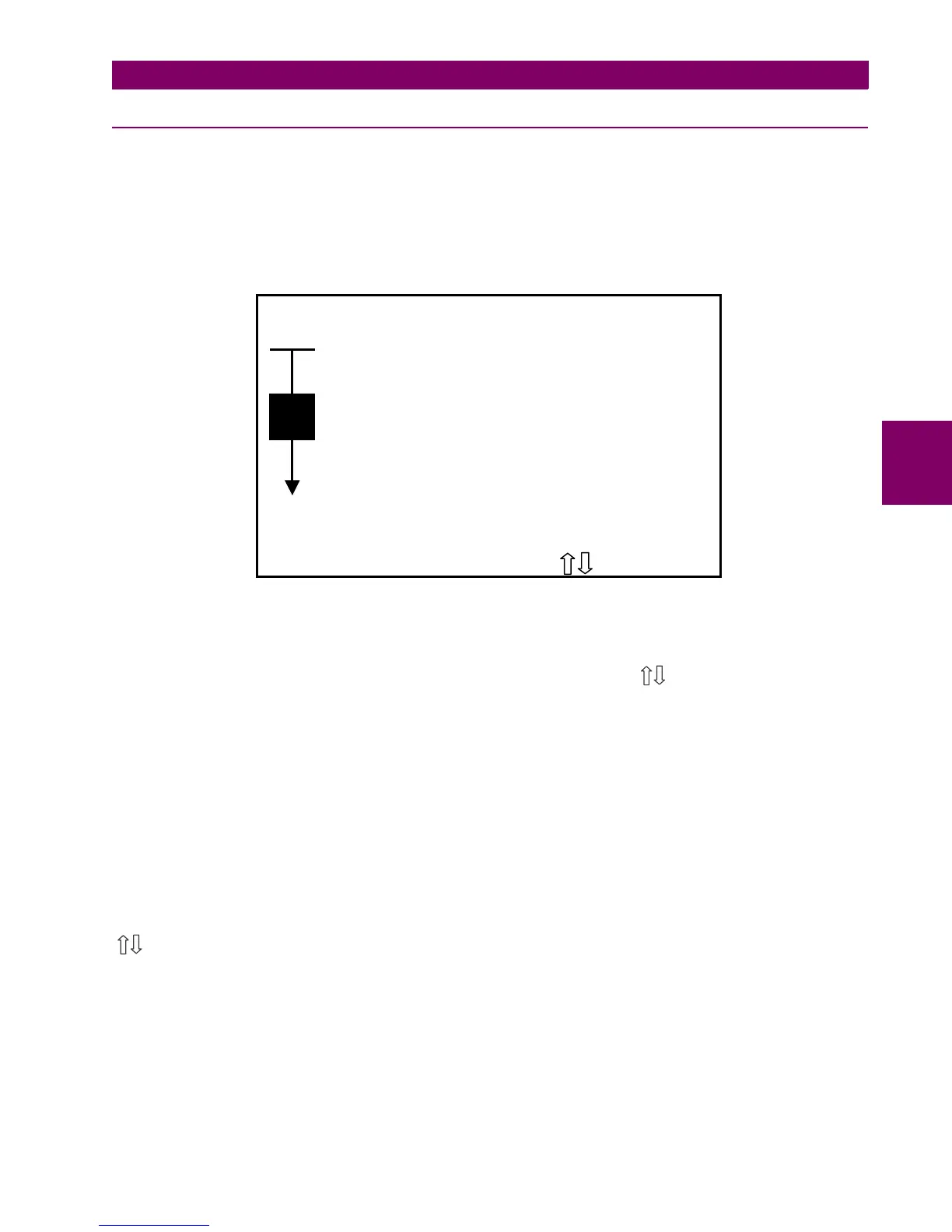

Figure 4–31: ONE-LINE DIAGRAM
The bottom of the display shows a legend that indicates the possible selections that can be made from this screen.
Esc: Menu. Enter: Next. : Select.
The meaning of these options is as follows:
Esc: Menu.
Pressing the ESC key, the user will access the relay main menu, similar to the one displayed by the text-display model
(F650B).
Pressing again the ESC key; the menu selection screen (Actual Values, Snapshot events, etc.) will be displayed. This main
menu screen is identical to the one described for the text display. Its functionality is described in section 4.2.5 in this
manual.
Intro: Next.
Pressing the enter/shuttle key, the user access the next graphical screen, which in this case corresponds to the primary
metering values screen.
: Select
Once the different switchgear elements to be operated have been configured using EnerVista 650 Setup, the user will be
able to operate them from the graphic display.
If a single-line diagram has been previously configured in the EnerVista 650 Setup, in the HMI option inside the Relay
Configuration menu, the different switchgear elements configured for the display will be operative from the graphic
display. By pressing up-down key or rotating the shuttle key to the left and right, the cursor moves among the elements and
blinks on each of them. When an element is selected by pressing the enter/shuttle key, the relay will indicate the command
to be executed, and the user will need to confirm it by pressing again the enter/shuttle key.
The following sections describe only the operation of screens that are specific for the graphic display models.
F650 DIGITAL BAY CONTROLLER
Ia = 0.000 kA Vab =0.000 kV
Ib = 0.000 kA Vbc =0.000 kV
Ic = 0.000 kA Vca =0.000 kV
Freq = 0.00 Hz
Esc: Menu. Enter:Next. :Select
