4.3 WEB SERVER 4 HUMAN INTERFACES. SETTINGS & ACTUAL VALUES
4
4.3 WEB SERVER 4.3.1 HOME
The web server in the F650 can be accessed running the Windows explorer, and typing http://xxx.xxx.xx.xxx
, being
xxx.xxx.xxx.xxx the relay IP address, which must be configured in Setpoint > Product Setup > Communication Settings
> Ethernet.
The main screen of the F650 web server shows the different monitoring possibilities for snapshot events, events, alarms,
oscillography, fault reports, data logger and metering values provided by the relay through the web.
In order to access the different functions provided by the web server, the user must simply click on the list name on the left
side of the screen.
The web server (for version 1.70 and higher ones) allows the user to visualize the different web server screen languages:
English, French, Spanish and Russian by pressing the language button on the top right corner of the main window. Take
into account that this selection only changes the language in the web server screen, all the relay texts, such as snapshot
events, control events, etc. will be the in the language selected in the relay (see section 4.2.5.12 in this manual).

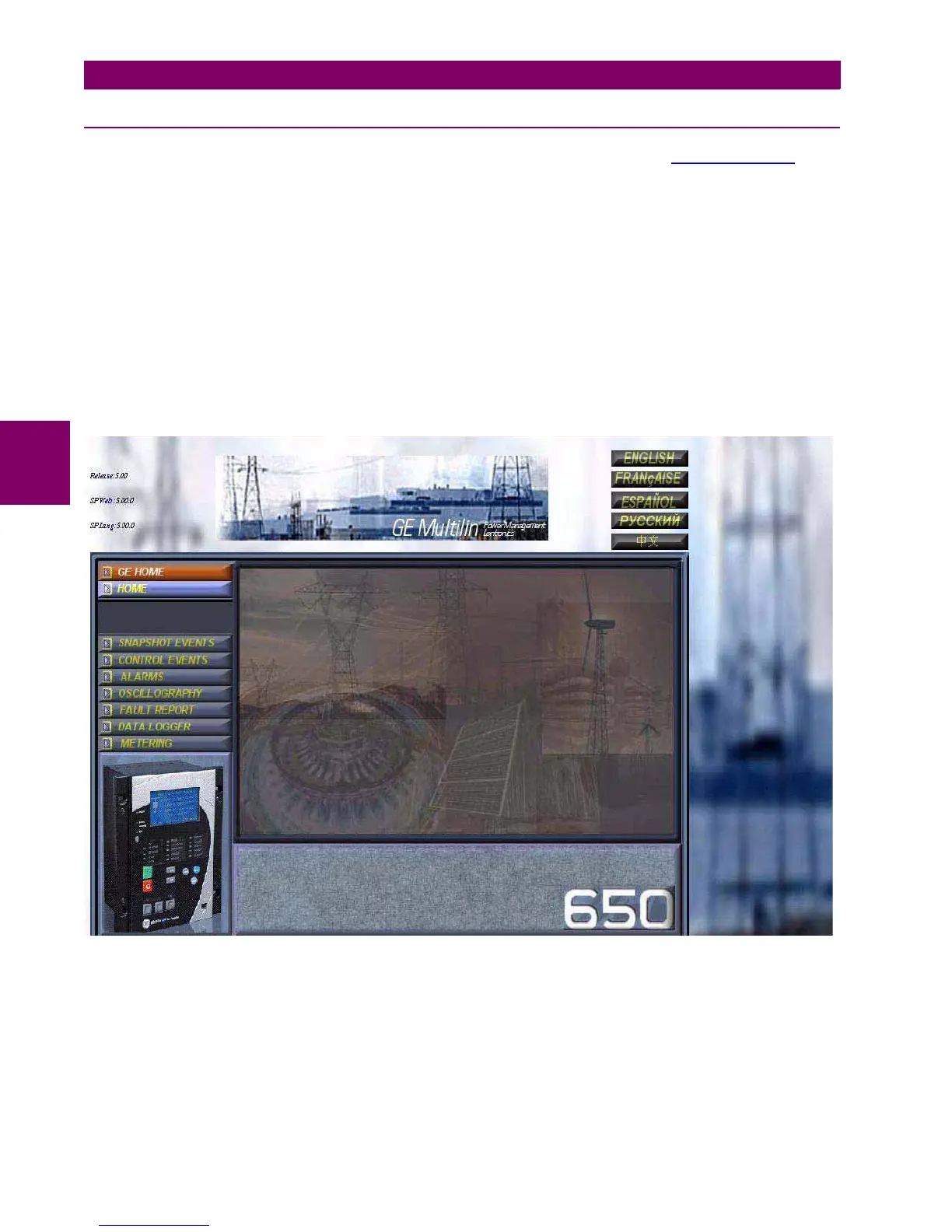

Figure 4–38: WEB SERVER MAIN SCREEN
