5-154 F650 Digital Bay Controller GEK-106310AB
5.9 RELAY CONFIGURATION 5 SETTINGS
5
5.9.9 ENERVISTA 650PC HMI IMPROVEMENTS
5.9.9.1 OVERVIEW
Enervista 650PC has been improved with the following data:
- Offline mode: select type of graphical display.
- Extended graphic symbols.
5.9.9.2 TYPE OF GRAPHICAL DISPLAY
You can select from two types of graphical displays depending on the ordering code

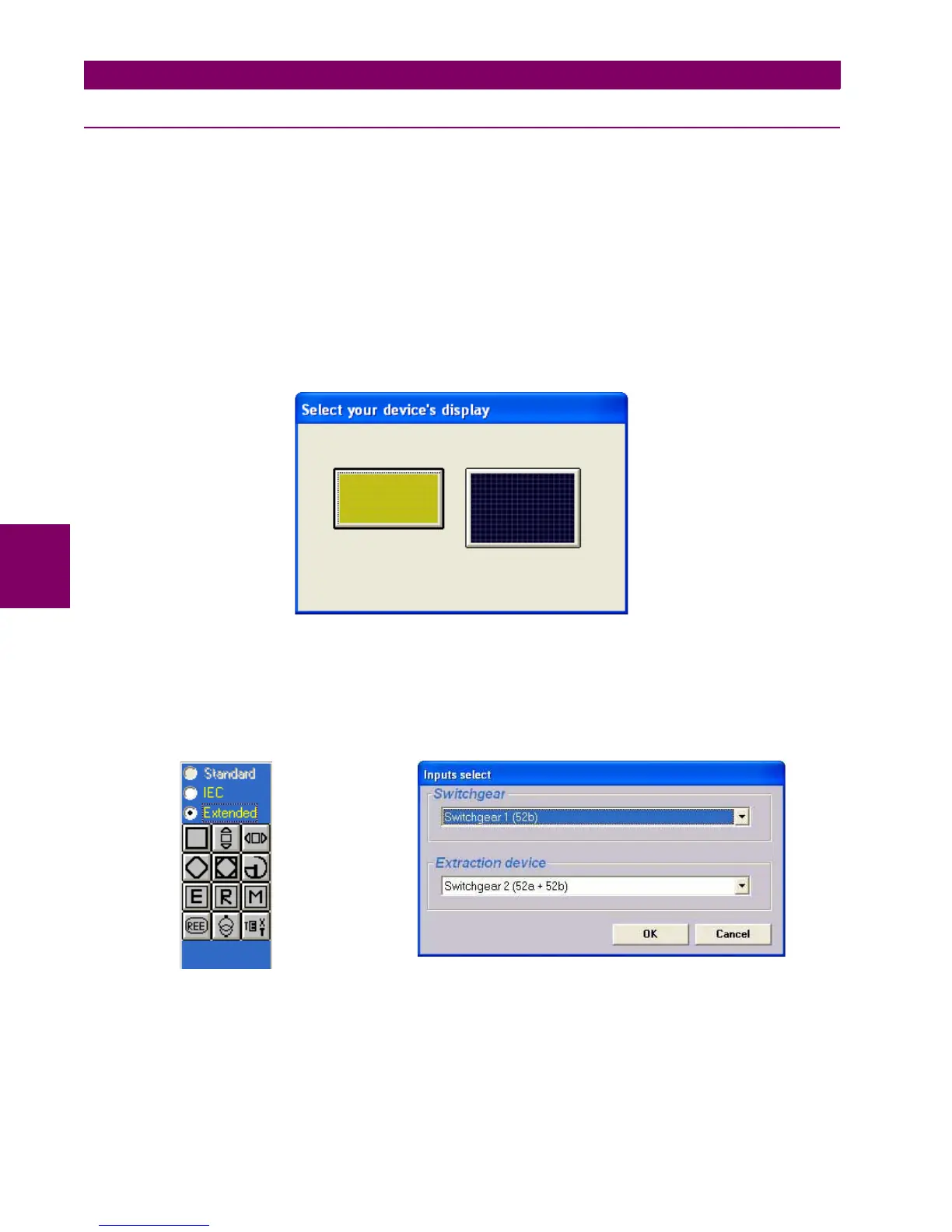

Figure 5–54:
5.9.9.3 EXTENDED GRAPHIC SYMBOLS
New symbols have been added to HMI. Extraction device must be set to 52a+52b switchgear device.
