7-60 F650 Digital Bay Controller GEK-106310AB
7.3 IEC 61850 CONFIGURATOR 7 IEC 61850 PROTOCOL
7
7.3IEC 61850 CONFIGURATOR 7.3.1 OVERVIEW
The IEC 61850 configurator tool can be used with relays firmware version 3.60 and further ones.
The "IEC 61850 Configurator" tool is located in the top level menu in EnerVista 650 Setup, allowing:
§Browse and edit F650 relay's ICD files
§Configure IEC 61850 reports
§Configure GOOSE messaging

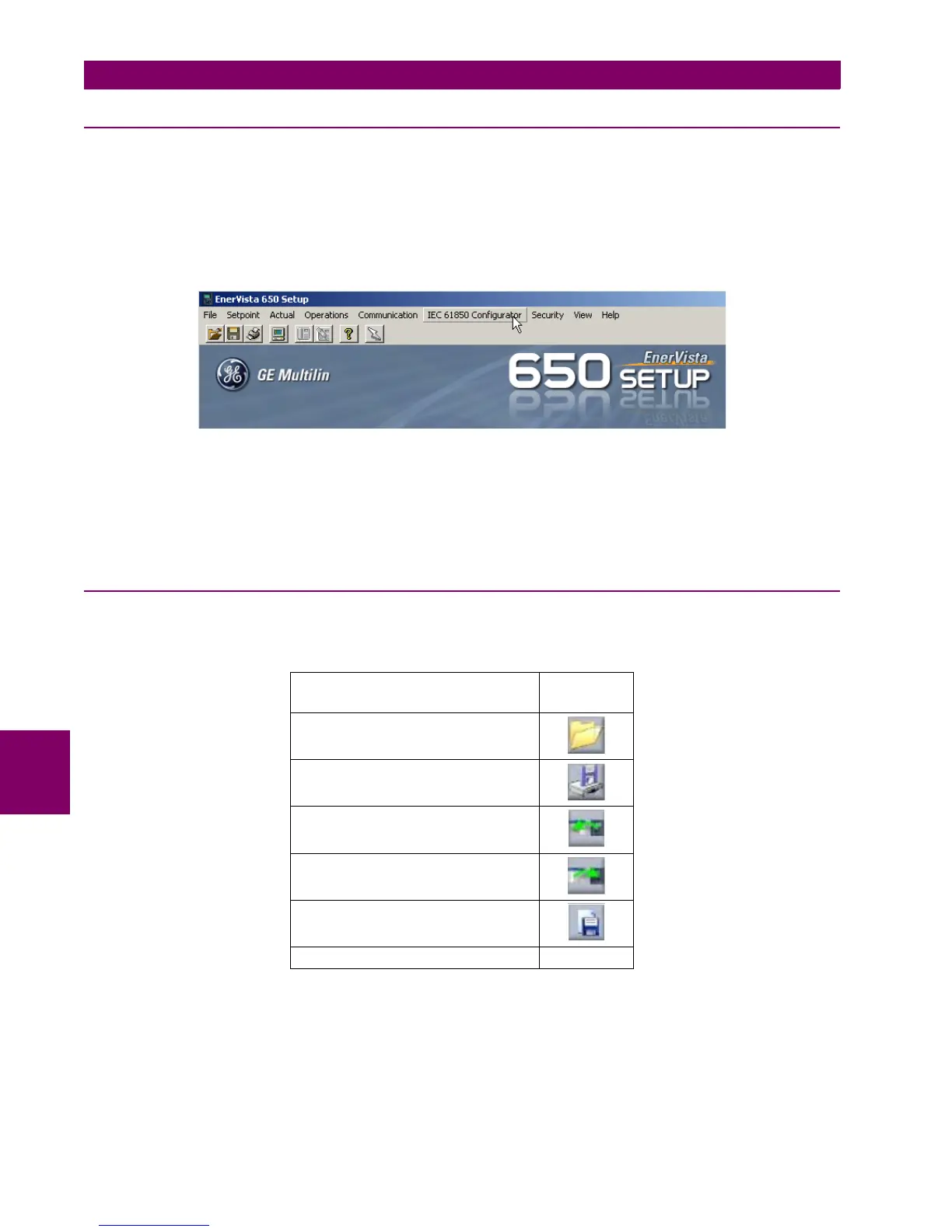

Figure 7–5: LOCATION OF IEC61850 CONFIGURATOR MENU
Important Note:
For firmware versions lower than 3.60 the tool for IEC 61850 is located in "Setpoint>61850 configuration" only for basic
configuration purposes (Domain name parameters, Ethernet parameters, MMXU parameters), with this tool the user can
configure some 61850 parameter in the F650.icd file and then send this file to the relay. For more detail information see
chapter 5.11 IEC 61850 CONFIGURATION
7.3.2 IEC 61850 CONFIGURATOR TOOL
7.3.2.1 PROGRAM OPTIONS AVAILABLE FOR FILE EDITION
The program options are listed below:
Menu Action Tool bar
Icons
Open IEC 61850 file from disk
Save IEC 61850 file to disk
Receive IEC 61850 file from device
Send IEC 61850 file to device
Export *. Icd
Exit NA
