CHAPTER 3: INTERFACES SOFTWARE INTERFACE
869 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 3–35

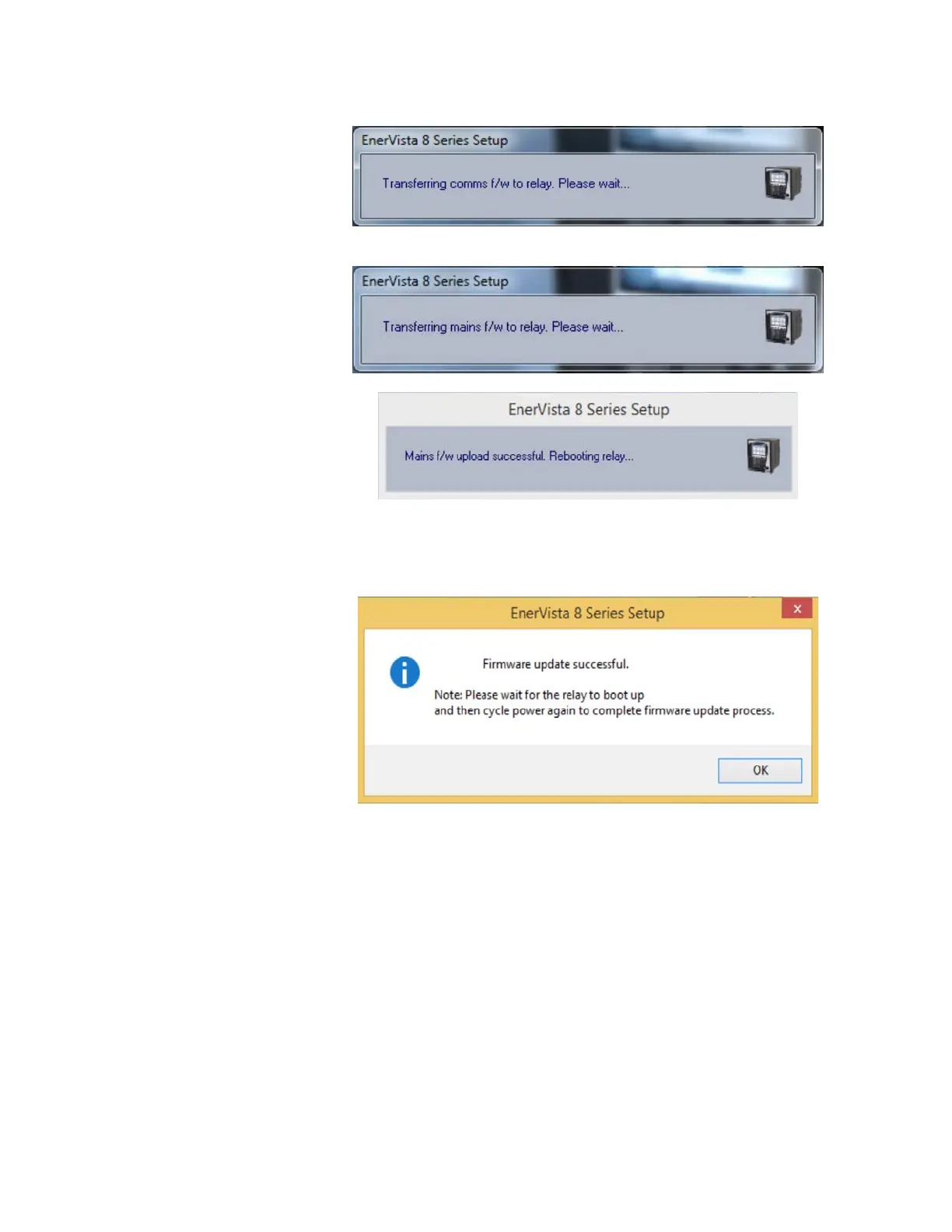

7. Wait for the Comms upload process to complete.
8. Wait for the Mains upload process to complete.
9. The EnerVista 8 Series Setup software notifies the user when the 869 has finished
loading and notifies the user to Cycle power to the relay to complete firmware
update.
After successfully updating the 869 firmware, the relay is not in service and requires
setpoint
programming. To communicate with the relay, the communication settings may
have to be manually reprogrammed.
When communications is established, the saved setpoints must be reloaded back into the
r
elay. See Loading Setpoints from a File for details.
Modbus addresses assigned to features, settings, and corresponding data items (i.e.
default v
alues, min/max values, data type, and item size) may change slightly from version
to version of firmware.
The addresses are rearranged when new features are added or existing features are
enh
anced or modified.
Advanced EnerVista 8 Series Setup Software Features
FlexCurve Editor
The FlexCurve Editor is designed to allow the user to graphically view and edit the
FlexCurve. The FlexCurve Editor screen is shown as follows:
