CHAPTER 3: INTERFACES SOFTWARE INTERFACE
869 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 3–43
1. In the menu taskbar, click on Offline and select the New Settings File item. The

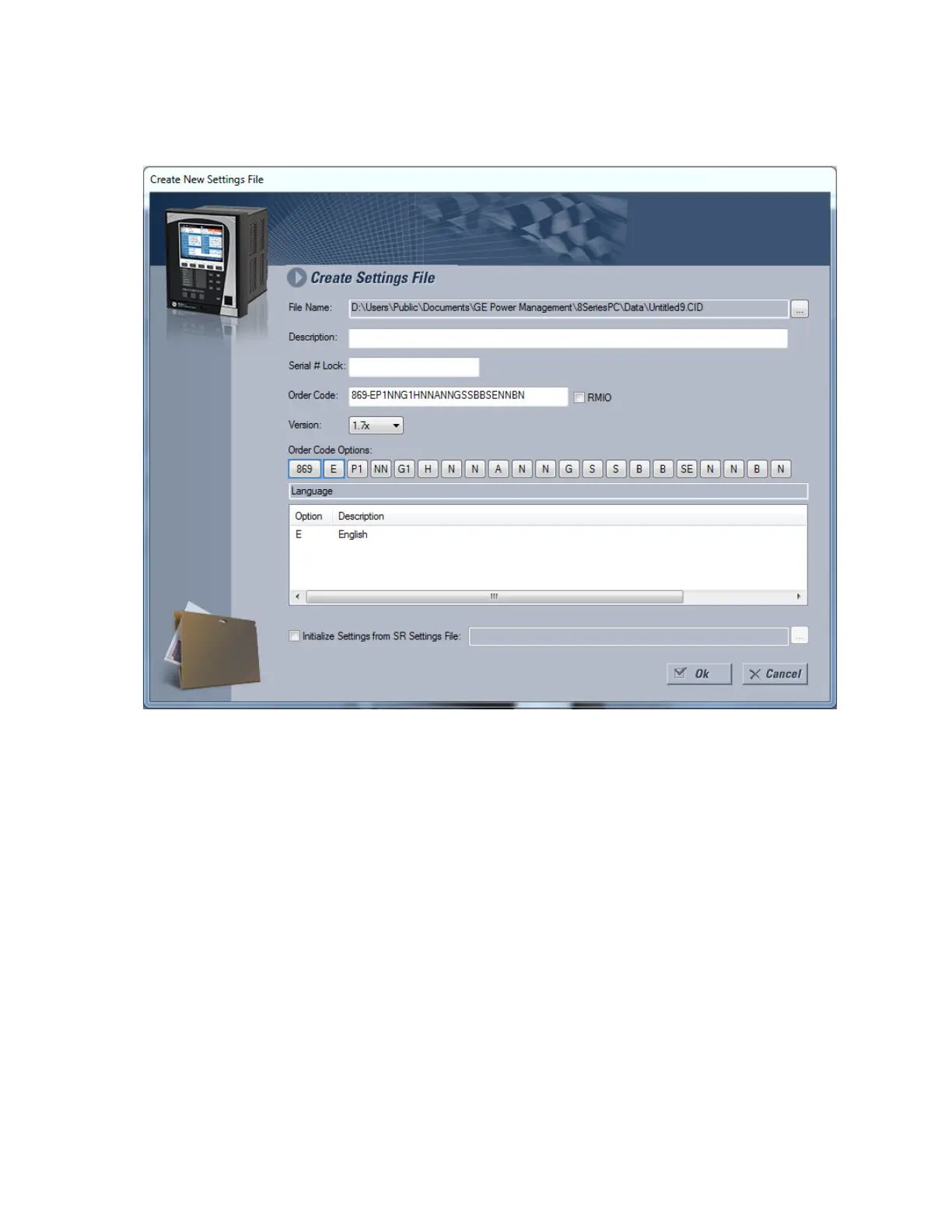

following Create New Settings File dialog box appears, which allows for the setpoint
file conversion.
2. Select the Firmware Version and Order Code option for the new setpoint file.
3. For future reference, enter some useful information in the Description box to facilitate
the identification of the device and purpose for the file.
4. To select the file name and path for the new file, click the button beside the File Name
box.
5. To select the SR settings file used for initialization, click the Initialize Settings from SR
Settings File button.
6. To locate and select the file to convert, click the button beside the Initialize Settings
from SR Settings File box.
7. Click OK to begin the conversion and complete the process. Once this step is
completed, the new file, with a complete path, is added to the EnerVista 8 Series
Setup software environment.
Convert 369 Files
EnerVista 8 Series Setup version 1.3x and above supports conversion of all 369 files as
long as they are from a 32-bit PC. If the file is 16-bit it must be converted to a 32-bit file
using the 369 EnerVista Setup before doing the 869 conversion.
Conversion Summary
Report
At the end of the conversion process, the results are summarized in a conversion report.
The report is found under Device Definition in the offline file window.
