CHAPTER 4: SETPOINTS OUTPUTS
869 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 4–97
Output Relay 2 (F4)
programmed as Close
Output Relay 2 (F4) is labeled CLOSE/AUX on the wiring diagram. As suggested by that
name, it can be used as a Close relay or an Auxiliary relay. The selection can be made in
Setpoints > System > Breakers (Contactor) > Breakers 1 (Contactor 1) > Close Relay Select. If
the selected value of Close Relay Select setting is Off, the Output Relay 2 functions as an
Auxiliary relay. If the selected value is Relay 2, the Output Relay 2 functions as a Close relay.
The default value is Off. The description below applies to both Relay 2 “Close” functionality.
For the Relay 2 “auxiliary” functionality, see the figure: Auxiliary Relays generic logic at the
end of this section.
Path:
Setpoints > Outputs > Output Relays > Aux Relay 2 (Close)
NOTE:
The output relays selected under the Breaker menu for breaker closing are excluded from
the list of outputs for selection under the menus of all elements providing such output relay
selection.
NOTE:
If Aux Relay 2 is selected for Breaker Close or Contactor Close, the relay name from the
Output Relays menu changes to “Close”. If Aux Relay 2 is not selected, the name reverts to
“Aux Relay 2”.

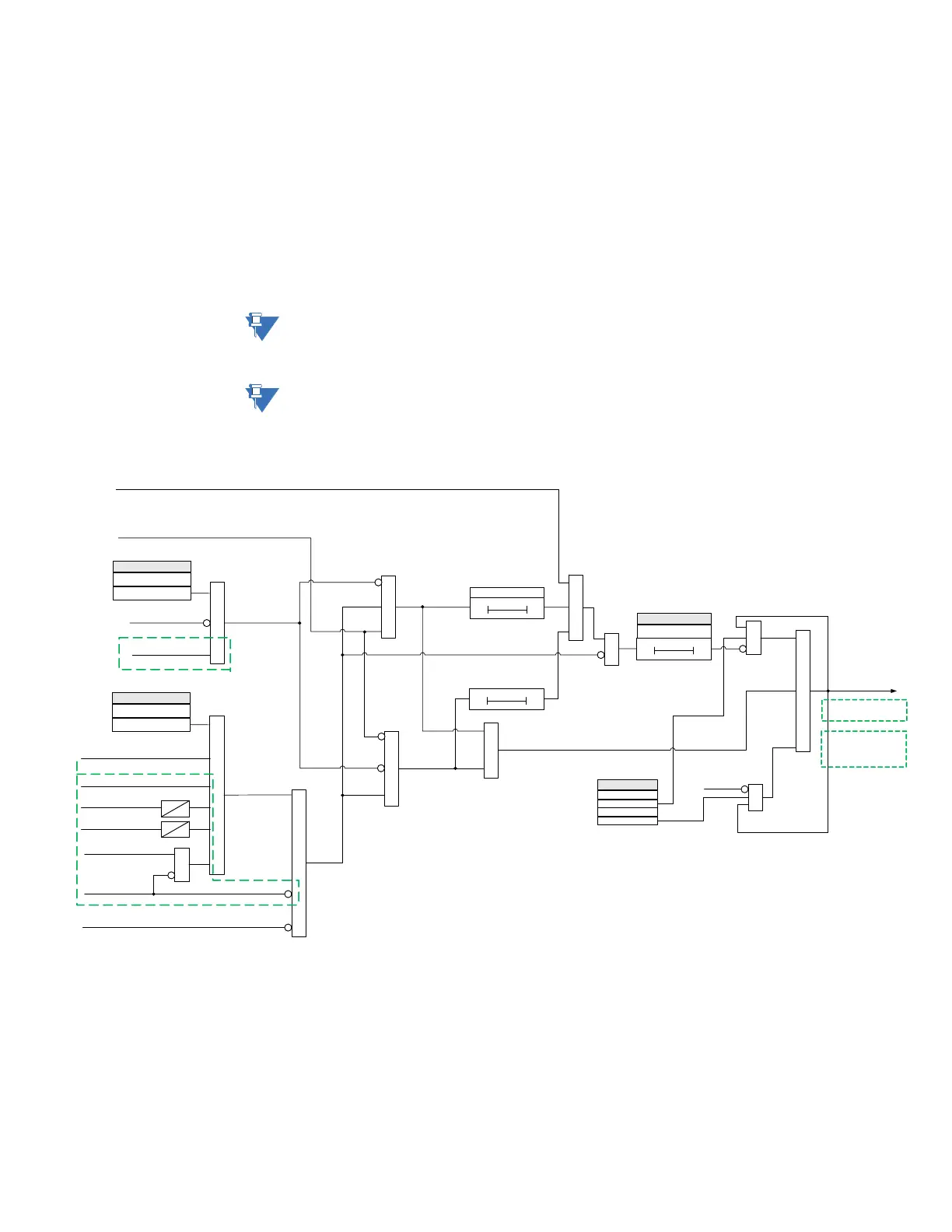

Figure 4-24: “Close” logic diagram
892827A2.cdr
Close request
Breaker Close
(from Breaker Detection)
At least one
contact programmed
(from Breaker Detection)
AND
OR
CLOSE
Close without
configured contact
AND
AND
CLOSE
Close when at least
one contact
configured
OR
2 sec
OR
CLOSE (from UV restoration)
CLOSE ( from UF restoration)
Relay ( Ready = 1)
OR
Block Close ( from Transfer scheme)
BLOCK
SETTING
Off = 0
Timer
AND
Breaker Failure
Autoreclose In-Progress
AND
CLOSE (from Autoreclose)
200 ms
CLOSE (from Transfer Scheme)
CLOSE (from Breaker Control)
Upon dropout of the close signal and no
breaker close status detected, this timer
will start on the raising edge of a pulse
issued from either of the two timers, and
will produce positive pulse upon time
expiry.
This timer starts on the falling edge
of a pulse, and issues a positive
pulse upon time expiry
This timer starts on the falling edge
of a pulse, and issues a positive
pulse upon time expiry
For 850 only
For 850 only
Relay ( Ready = 1)
OPERATE
SETTING
FL Operand, Off = 0
OR
AND
SEAL-IN TIME
SETPOINT
t
AND
TYPE
SETPOINT
Pulsed
Self-Reset
RESET (command)
Latched
Operate Output
Relay 2 “CLOSE”
For 850
Operate the selected
Aux Relay programmed
for BKR close
For 845, 869, and 889 only
0
20 ms
0
20 ms
