CHAPTER 3: INTERFACES FRONT CONTROL PANEL INTERFACE
869 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 3–9

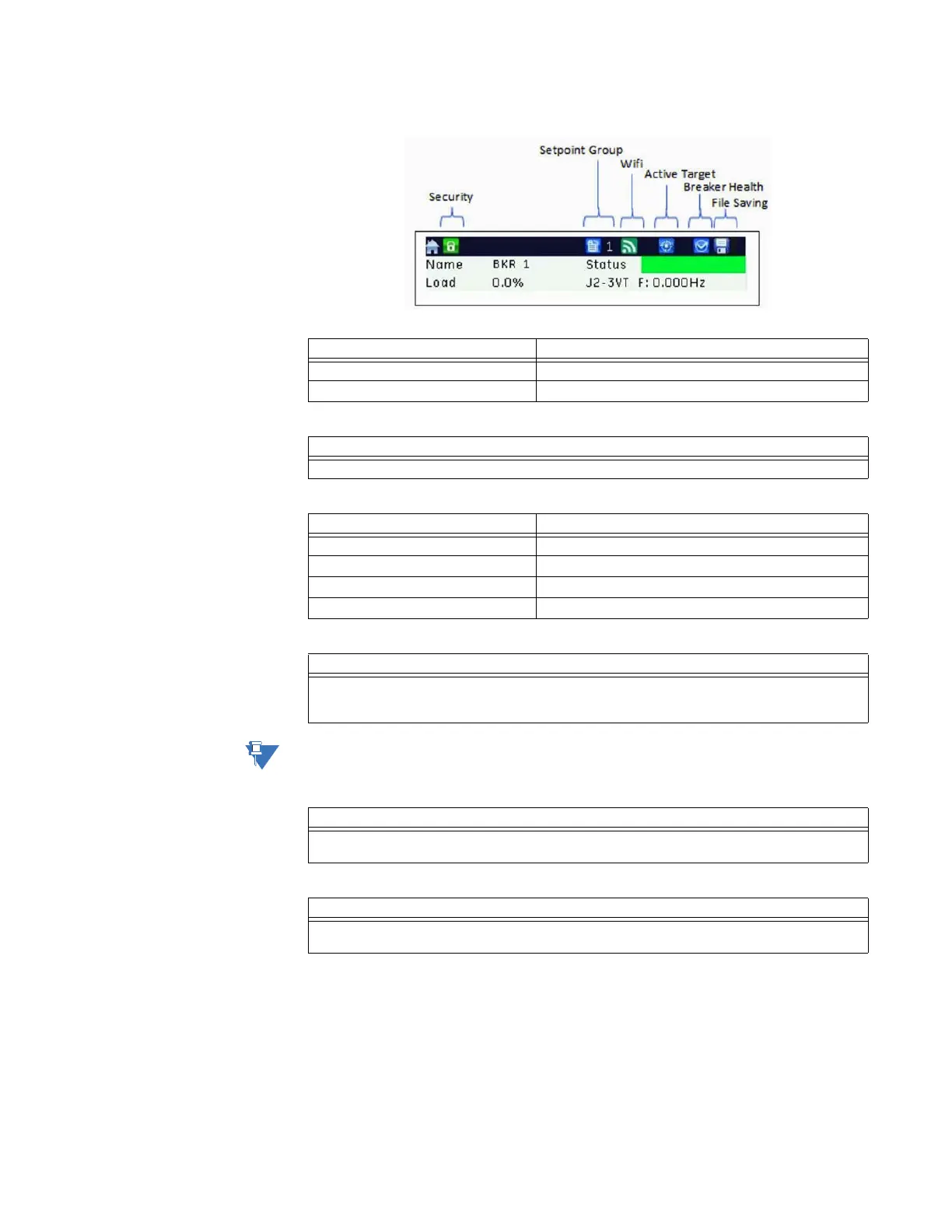

Figure 3-9: Home Screen Icons
Table 3-1: Security Icon
Table 3-2: Setpoint Group Icon
Table 3-3: Wifi Icon
Table 3-4: File Saving Icon
NOTE:
Do not remove power from the relay whenever the File saving icon is ON. When power is
removed the data being saved can also be lost.
Table 3-5: Active Target Icon
Table 3-6: Breaker Health Icon
Relay Messages
Target Messages
Targets are messages displayed on the screen when any change of state of protection,
control, monitoring, or digital signal takes place. For the user’s convenience, the targets for
major motor protection elements are set to Latched by default. The user can disable
targets for any particular element by selecting and entering the setting “Disabled” within
the element’s menu.
Security State Security Icon Color
User not logged in Icon is green and locked
User logged in Icon is red and unlocked
Description
Identifies the active setpoint group
Wifi State Wifi Icon Color
Disabled Icon is grey and crossed by a red line
Disconnected Grey
Connecting Orange
Connected Green
Description
Indicates that a setting is being saved on the relay (i.e., when changing one of relay settings).
Icon is ON (relay is saving to flash memory)
Icon is OFF (relay is not saving to flash memory)
Description
When the target auto navigation setting is disabled, the message LED and the Active Target icon are
the only indication of active target messages.
Description
The Breaker Health icon is blue when the setting for the breaker health function is not disabled.
When the setting i
s disabled the icon is grey.
