2–6
869 MOT
OR PROTECTION SYSTEM – INSTRUCTION MANUAL
MECHANICAL INSTA
LLATION
CHAPTER 2: INSTALLATION
Removable Power Supply
Follow the steps outl
ined in the
Insert or Remove Power Supply
diagram t
o insert (#1) or
remove (#2) the pow
er supply from the unit
.

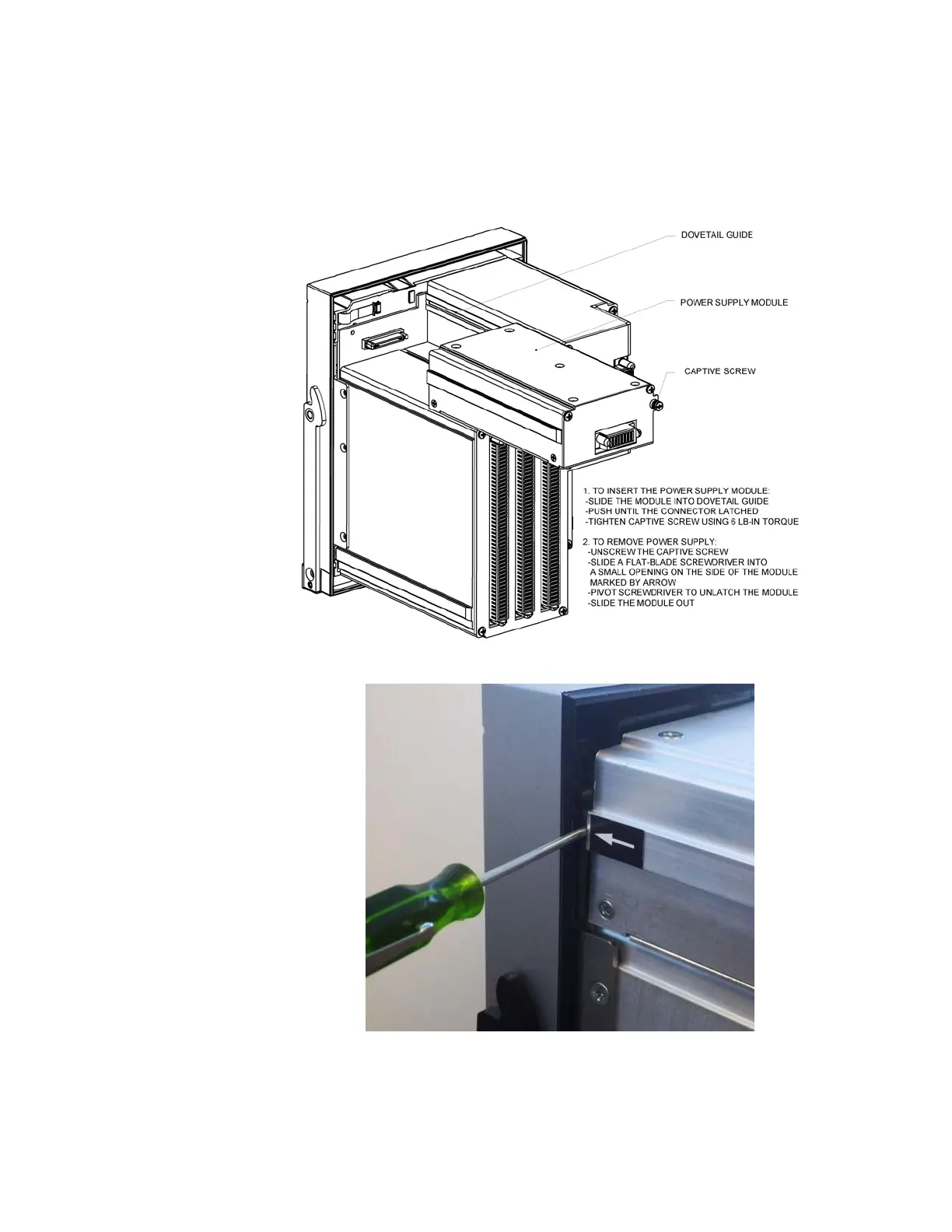

Figure 2-7: Insert or Remove the Power Supply
Figure 2-8: Unlatch Module (location is marked by arr
ow)
49
51
