5–6 869 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL
VIRTUAL OUTPUTS CHAPTER 5: STATUS
Virtual Outputs
Path: Status > Virtual Outputs
The state of all virtual outputs is shown here, see next figure. The value for each Virtual
Output is shown on the control panel graphically as a toggle switch in either the On (|) state
or the Off (O) state.

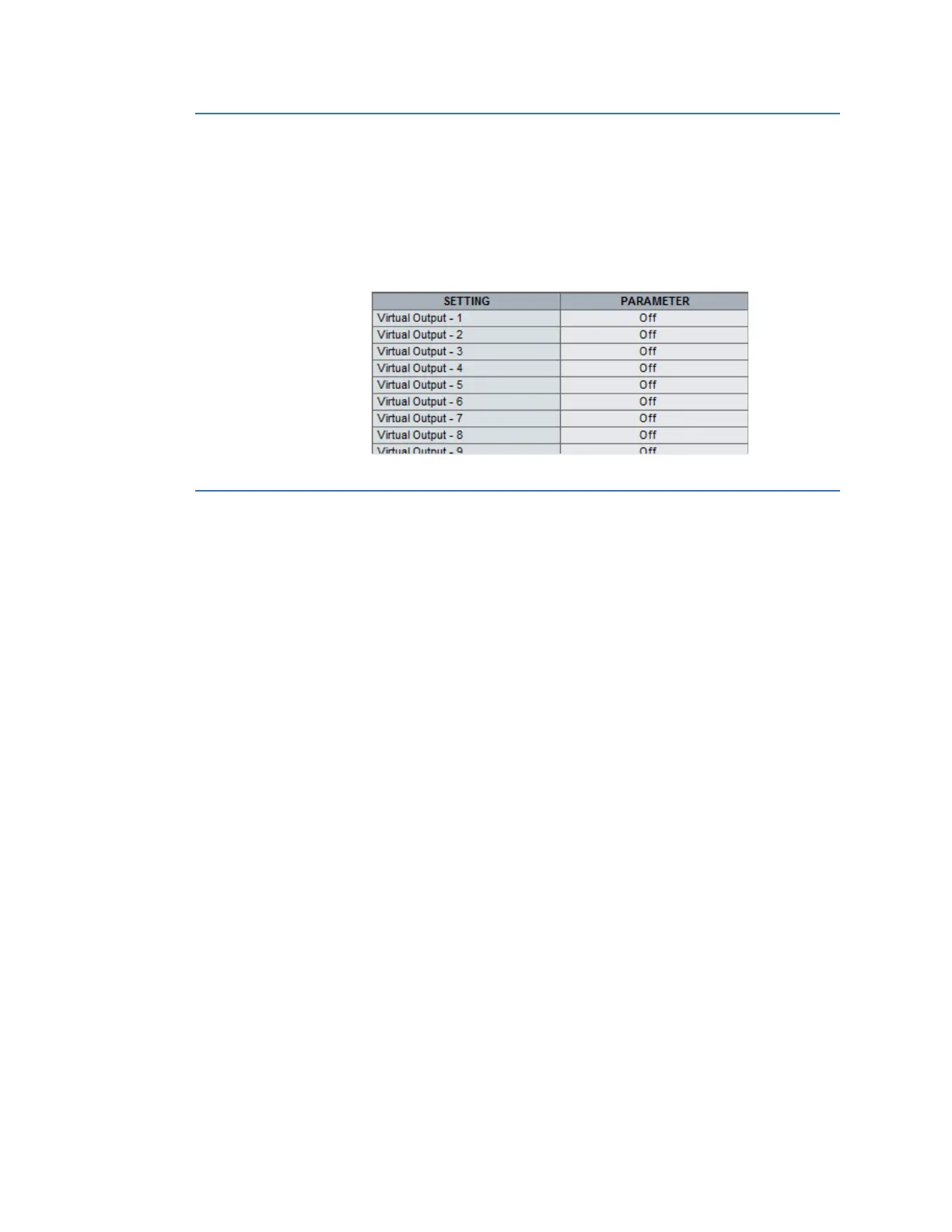

Figure 5-3: Status of Virtual Outputs
Flex State
The selected Flex state parameter is available for status monitoring and the Modbus
memory map, when the selected operand is asserted.
Path:
Status > Flex States
There are 256 Flex state bits available. The status value indicates the state of the given Flex
state bit.
