3–14 869 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL
FRONT CONTROL PANEL INTERFACE CHAPTER 3: INTERFACES
Out of Service
When the relay is shipped from the factory, the DEVICE IN SERVICE is set to “Not Ready”.
The IN SERVICE LED will be orange and the critical fail relay will be de-energized but this will
not be classified as a major self-test. An out of service event will be generated in the event
recorder.
Flash Messages
Flash messages are warning, error, or general information messages displayed in response
to pressing certain keys. The factory default flash message time is 5 seconds.
Label Removal

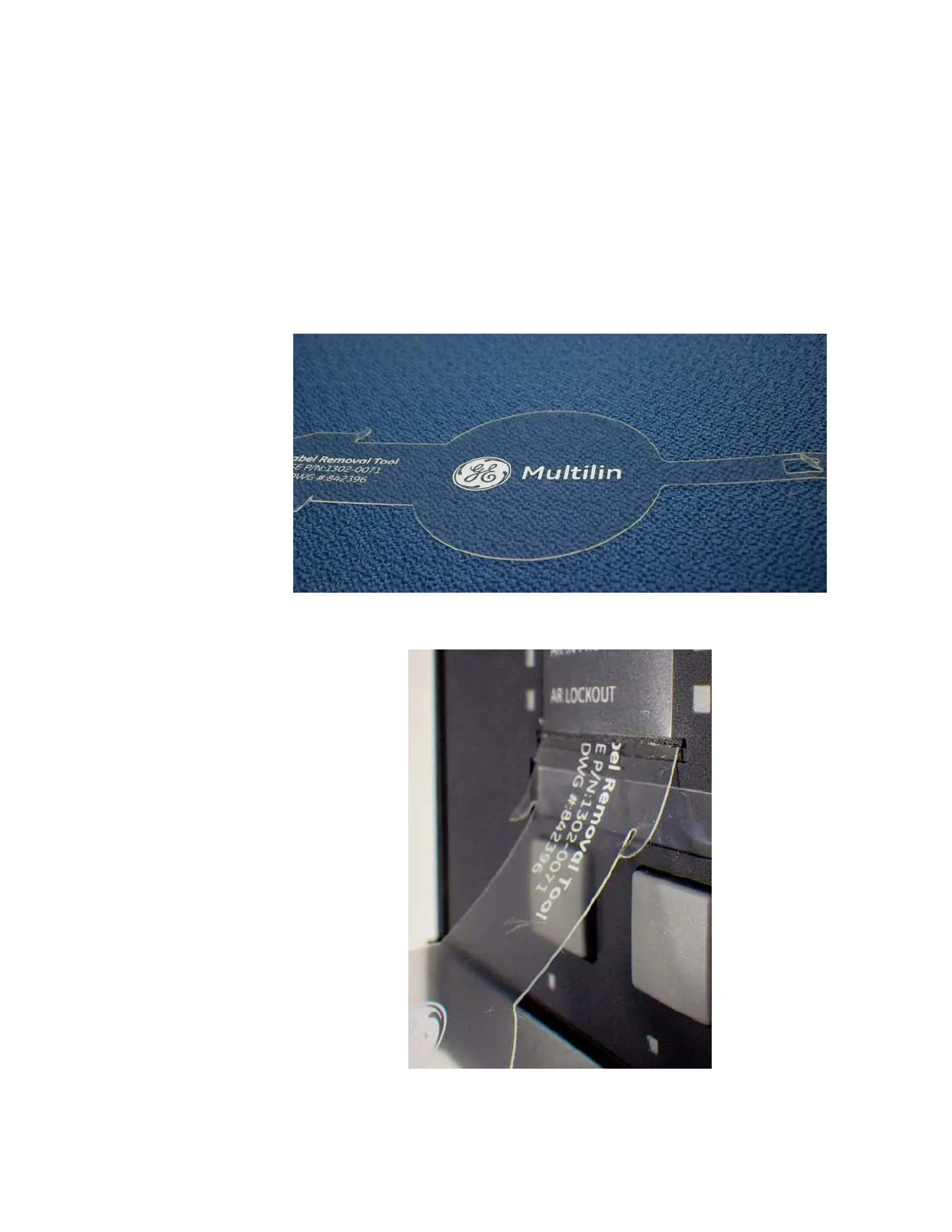

The following procedure describes how to use the label removal tool.
1. Bend the tabs of the tool upwards as shown in the image.
2. Slide the label removal tool under the LED label as shown in the next image. Make sure
the bent tabs are pointing away from the relay. Move the tool inside until the tabs
enter the pocket.
3. Remove the tool with the LED label.
