3. Load the setpoint file to be upgraded into the EnerVista 8 Series Setup software
environment as described in the section, Adding Setpoints Files to the Environment.
4. In the File pane, select the saved setpoint file.

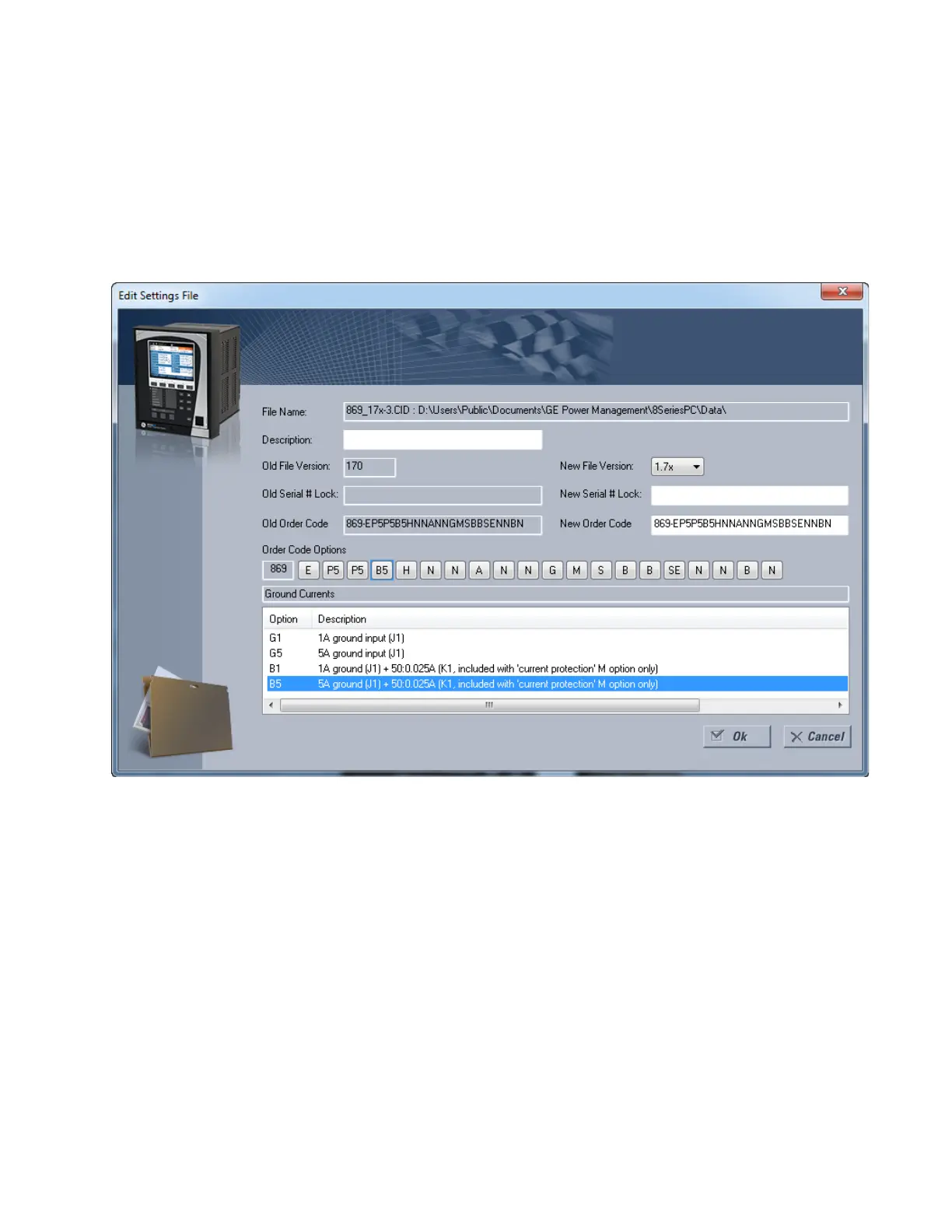

5. From the main window menu bar, select the Offline > Edit Settings File Properties
menu item and note the File Version of the setpoint file. If this version is different from
the Firmware Revision noted in step 2, select a New File Version that matches the
Firmware Revision from the pull-down menu.
6. For example, if the firmware revision is J0J08AA150.SFD (Firmware Revision 1.50) and
the current setpoint file revision is 1.10, change the New File Version to “1.5x”.
7. Enter any special comments about the setpoint file in the "Description" field.
8. Select the desired firmware version from the "New File Version" field.
9. When complete, click OK to convert the setpoint file to the desired revision. See
Loading Setpoints from a File below, for instructions on loading this setpoint file into
the 869.
Printing Setpoints
The software allows the user to print partial or complete lists of setpoints. Use the following
procedure to print a list of setpoints:
1. Select a previously saved setpoints file in the File pane or establish communications
with a device.
2. If printing from an online device, select the Online > Print Device Information menu
item. If printing from a previously saved setpoints file, select the Offline > Print
Settings File menu item.
