CHAPTER 3: INTERFACES SOFTWARE INTERFACE
869 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 3–15
The following describes how to remove the user-programmable pushbutton label from the
869 front panel.

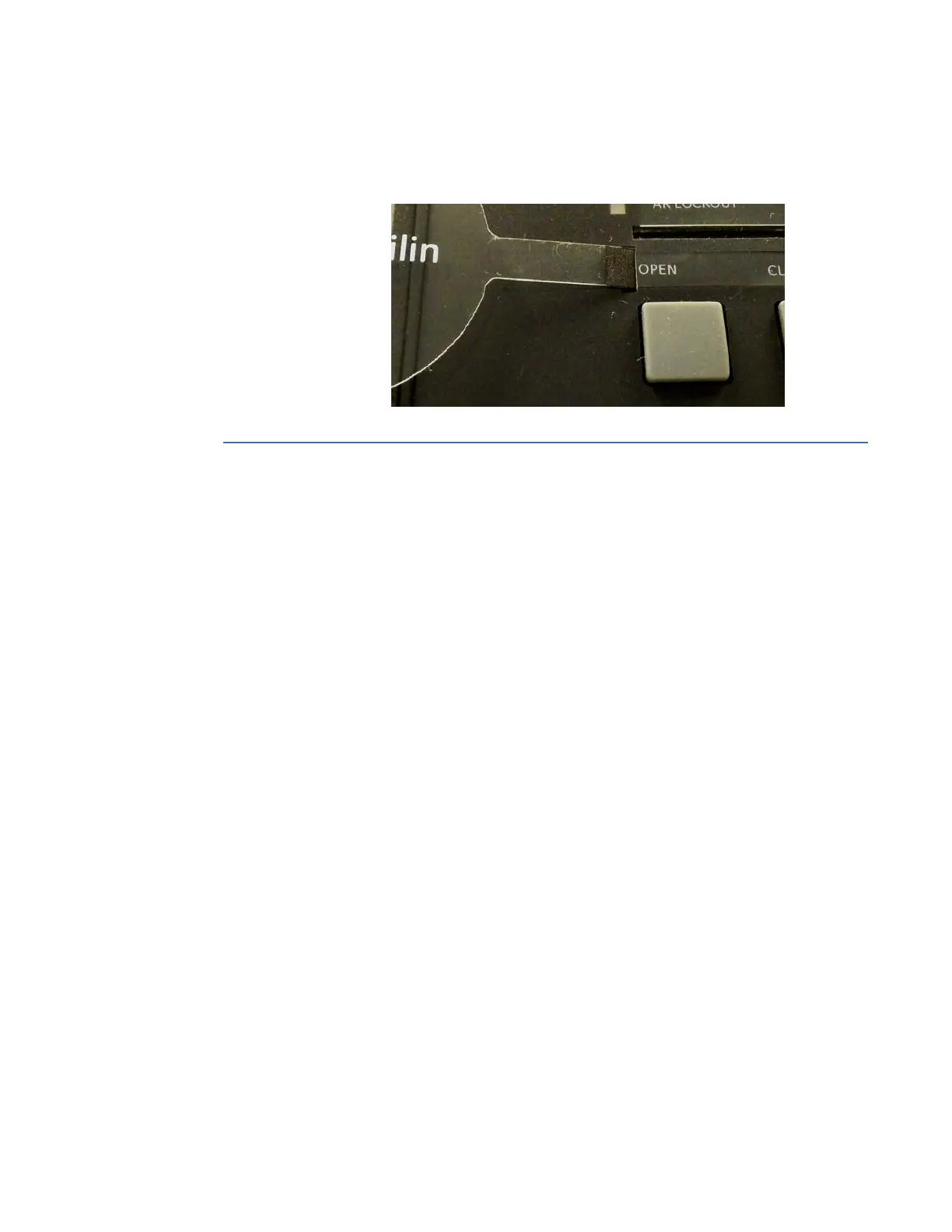

1. Slide the label tool under the user-programmable pushbutton label as shown in the
next image. Make sure the bent tab is pointing away from the relay.
2. Remove the tool and user-programmable pushbutton label as shown in image.
Software Interface
EnerVista 8 Series Setup Software
Although settings can be entered manually using the control panel keys, a PC can be used
to download setpoints through the communications port. The EnerVista 8 Series
Setup software is available from GE Multilin to make this as convenient as possible. With
EnerV
ista 8 Series Setup software running, it is possible to:
• Program and modify settings
• Load and save setting files to and from a disk
• Read actual values
• Monitor status
• Read pre-trip data and event records
• Get help on any topic
• Upgrade the 869 firmware
The EnerVista 8 Series Setup software allows immediate access to all 869 features with
ea
sy to use pull down menus in the familiar Windows environment. This section provides
the necessary information to install EnerVista 8 Series Setup software, upgrade the relay
f
irmware, and write and edit setting files.
The EnerVista 8 Series Setup software can run without a 869 connected to the computer.
In this case, set
tings may be saved to a file for future use. If a 869 is connected to a PC and
communi
cations are enabled, the 869 can be programmed from the setting screens. In
add
ition, measured values, status and trip messages can be displayed with the actual
value screens.
Hardware & Software
Requirements
The following requirements must be met for the software.
• Dual-core processor
• Microsoft Windows™ 7 or 8.1; 32-bit or 64-bit is installed and running properly.
• At least 1 GB of free hard disk space is available.
• At least 2 GB of RAM is installed.
• 1280 x 800 display screen
