4–42 869 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL
DEVICE CHAPTER 4: SETPOINTS
IEC103 Sync Timeout
Range: 0 to 3600 seconds in steps of 1
Default: 0
To view the list of binary inputs, see the 869 Flexlogic Operands tab
le in the Setpoints/
FlexLogic section of the individual 869 instruction manual.
FAST PATH:
The user must pay attention when configuring the function type and information number
of the different points, because they must be unique. There is no mechanism in the
EnerVista 8 Series Setup software or the front panel HMI to detect duplication of the
information index.
FAST PATH:
The IEC 60870-5-103 point lists always begin with point 0 and end at the first “Off” value.
Since IEC 60870-5-103 point lists must be in one continuous block, any points assigned
after the first “Off” point are ignored.
IEC 61850
The optional communications processor supports both the IEC61850 GOOSE and IEC
61850 MMS Server service as per IEC 61850 standard Ed. 2. The GOOSE messaging service
provides the 869 unit the ability to Publish/Subscribe Digital Input Status and its Quality
and T
imestamp to/from other IEDs with supporting GOOSE messaging service, while the
server support allows remote control center, RTU/Gateway, local HMI or other client role
devices access to the relay for monitoring and control. The configuration of IEC61850
services is accomplished using the 869 configuration software, EnerVista 8 Series
Se
tup software. A rebooting MUST be done befor
e any changes made take affect.
The IEC 61850 Configurator
The 869 supports the IEC 61850 protocol which is identified by order code option “2E”.
The IEC 61850 configurator is found in both the online and offline section of the EnerVista
8 S
eries Setup software for configuring the online 869 and offline 869 settings file
re
spectively.
Online and Offline Setup
ONLINE SETTINGS FILE
Two options are available to configure the relay’s online settings file.
1. Configuration
– Configure the 869 (having order code option: IEC 61850) through the Device Setup
or Quick connect screen.

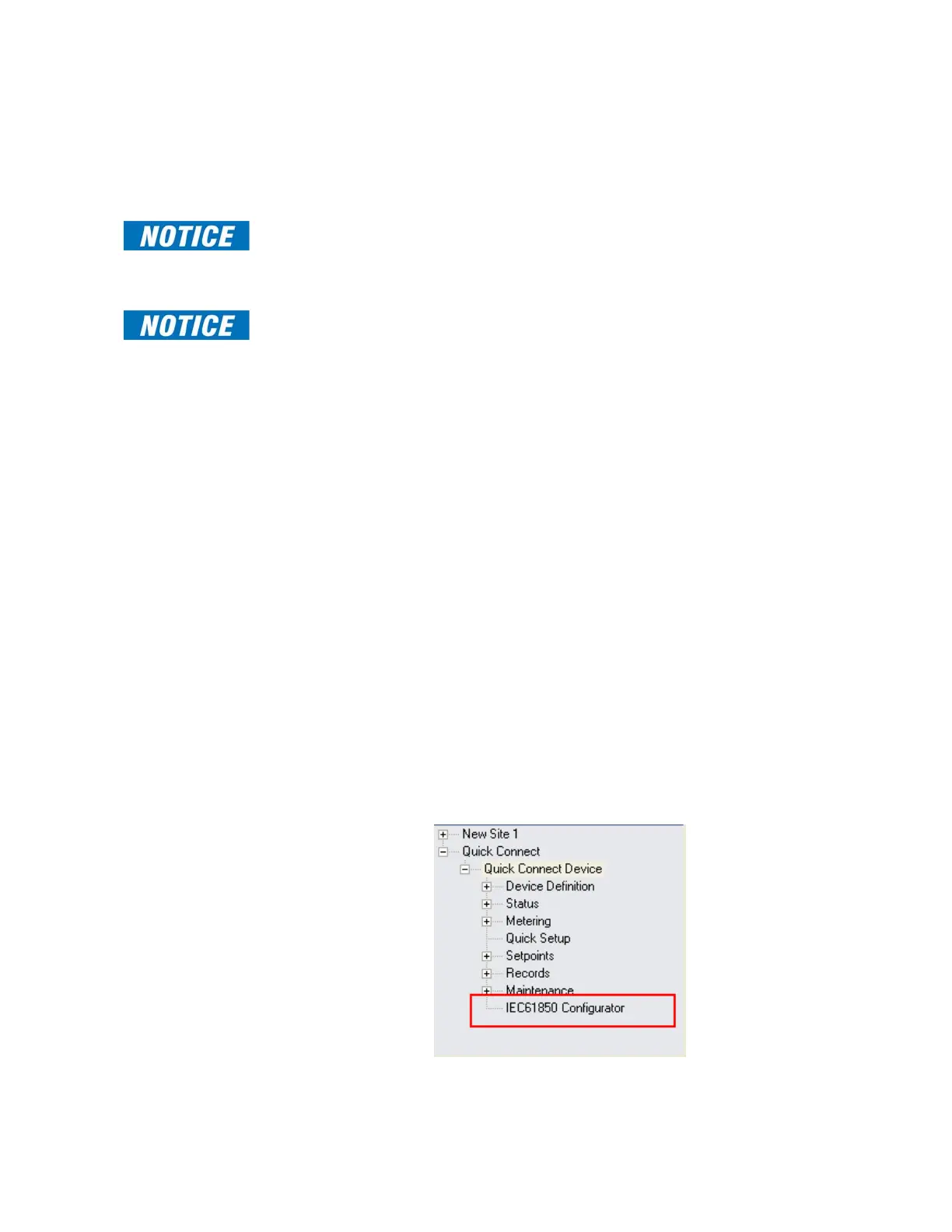

– The IEC 61850 Configurator “tree” item is displayed after Maintenance. See figure
below.
– Launch the online IEC 61850 configurator screen, by double-clicking on the
IEC61850 Configurator “tree” item.
