CAUTION!
Align the viewing window of the LED foil exactly to the holes of the housing.
4 Carry out a complete inspection (⇨ "Inspection", page 33).
u Emergency drive LED foil replaced.
u Inspection after repair has been carried out.

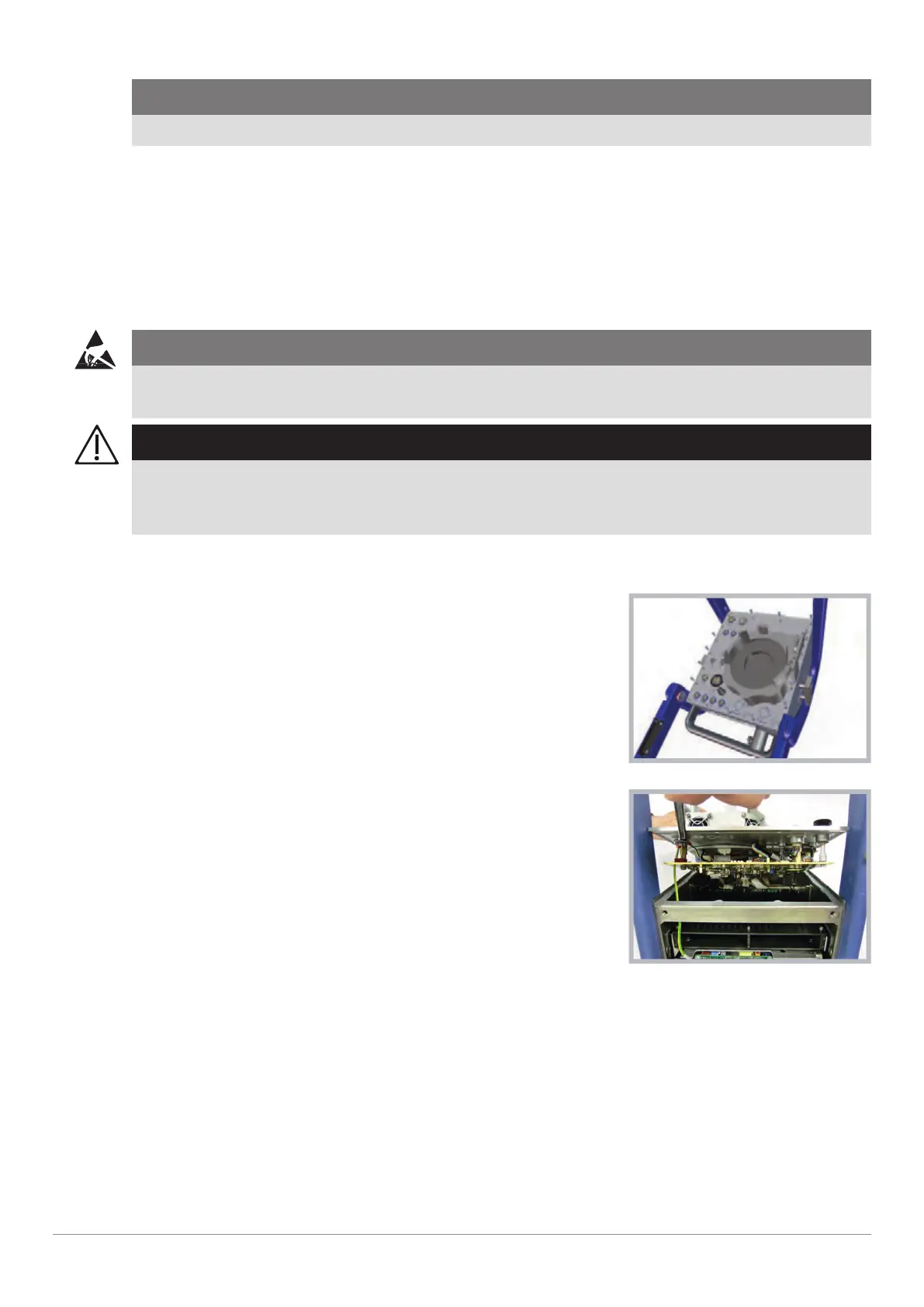

6.5 Opening the Device
Requirements
Service training part 2
CAUTION!
ESD-sensitive components
To prevent damage to ESD-sensitive components, an ESD-protected environment must be set up.
WARNING!
Eliminate safety risks!
Disconnect the CARDIOHELP from the external power supply and remove the batteries before carrying
out maintenance.
1 Disconnect the CARDIOHELP from the external power supply.
2 Remove the batteries (⇨ "Replacing the Batteries", page 67).
3 Unscrew the screws (M3x8) of the sensor panel.
Sensor panel exterior
4 Remove the grounding conductor cable from the sensor panel.
Remove the grounding conductor
