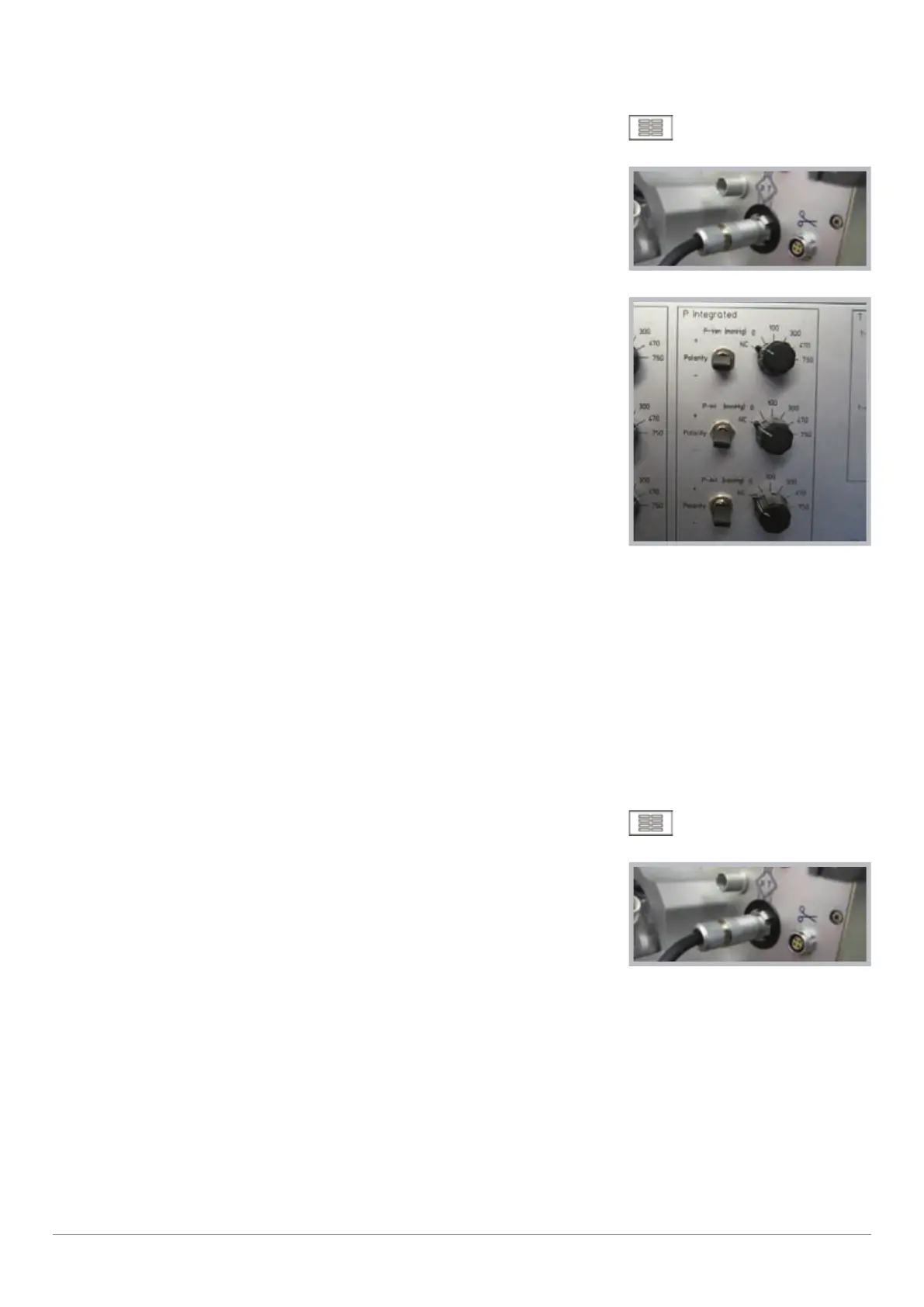

Integrated Pressure Sensors
1 Touch the [Parameter list] symbol.
[Parameter list] symbol
2 Connect the connector for the integrated sensors of the sensor
tester to the CARDIOHELP.
Integrated sensor connectors
3 Set the value of P
Ven
to 0 on the sensor tester “P Integrated”.
Sensor tester - Figure
4 Carry out the zero calibration of the P
Ven
.
5 Set the P
Ven
values on the sensor tester “P Integrated” according to the service protocol.
6 Read the individual P
Ven
values from the touchscreen of the CARDIOHELP and record them in the
service protocol.
u Integrated pressure sensor P
Ven
- passed/failed.
7 Repeat step 3 ... 6 for P
Int
.
u Integrated pressure sensor P
Int
- passed/failed.
8 Repeat step 3 ... 6 for P
Art
.
u Integrated pressure sensor P
Art
- passed/failed.
Integrated Temperature Sensor
1 Touch the [Parameter list] symbol.
[Parameter list] symbol
2 Connect the connector for the integrated sensors of the sensor
tester to the CARDIOHELP.
Integrated sensor connectors
3 Read the individual T
Art
values from the touchscreen of the CARDIOHELP.
▶ A measured value is displayed.
▶ Measured value corresponds approximately to the ambient temperature.
u Integrated temperature sensor signal T
Art
- passed/failed.
4 After the test, remove the connector of the integrated sensors from the CARDIOHELP.
3.7 Update Service Data
3.7.1 Save Next Service Date
The next service date must be saved in the CARDIOHELP via the Service Tool Software.
1 Switch to the [Maintenance] tab.
