2 Click on the [Normal mode] button.
3 Follow the instructions on the screen.
Function test mode message Exit

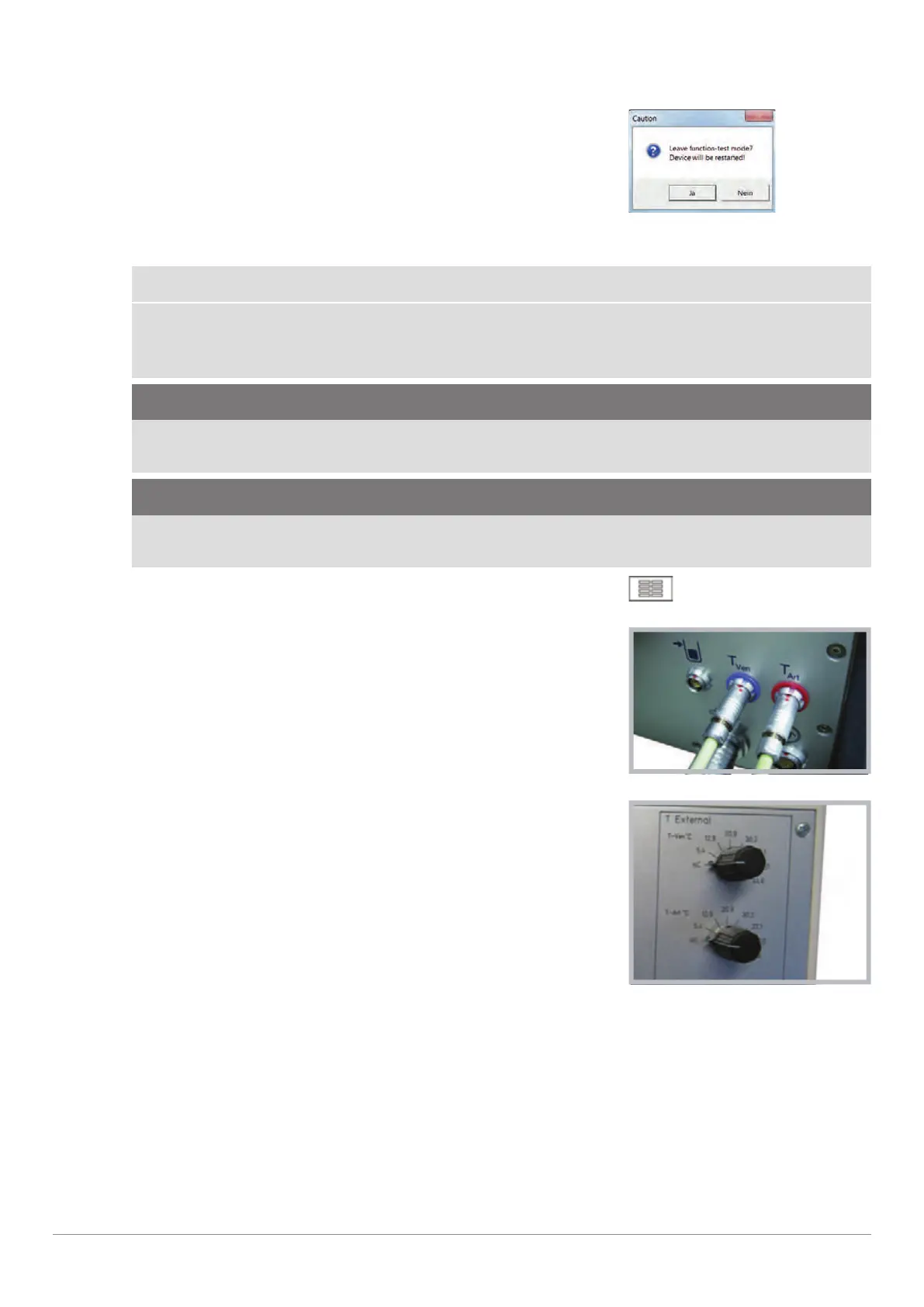

3.6.4 External Temperature Sensors
NOTE
These tests check the input signal of the sensor connections of the CARDIOHELP.
The measuring accuracy of the external temperature sensors is not tested.
Please use the MECC mode.
CAUTION!
Disconnect disposable connection cable!
If valid values of an integrated sensor are available, the value of the external sensor T
Art
is ignored.
CAUTION!
Disconnect venous probe connection cable!
If valid values of venous probe are available, the values of the external sensor T
Ven
is ignored.
1 Touch the [Parameter list] symbol.
[Parameter list] symbol
2 Connect the connectors T
Art
and T
Ven
of the sensor tester with the
CARDIOHELP.
Connectors T
Art
and T
Ven
3 Set the T
Art
values on the sensor tester “T External“ according to
the service protocol.
Sensor tester
4 Read the individual T
Art
values from the touchscreen of the CARDIOHELP and record them in the
service protocol.
u External temperature sensor T
Art
- passed/failed.
u Repeat step 3 ... 4 for T
Ven
. External temperature sensor T
Ven
- passed/failed.
5 Remove the connectors T
Art
and T
Ven
from the CARDIOHELP.
