| 140 | 9 Diagrams | CARDIOHELP System |
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH

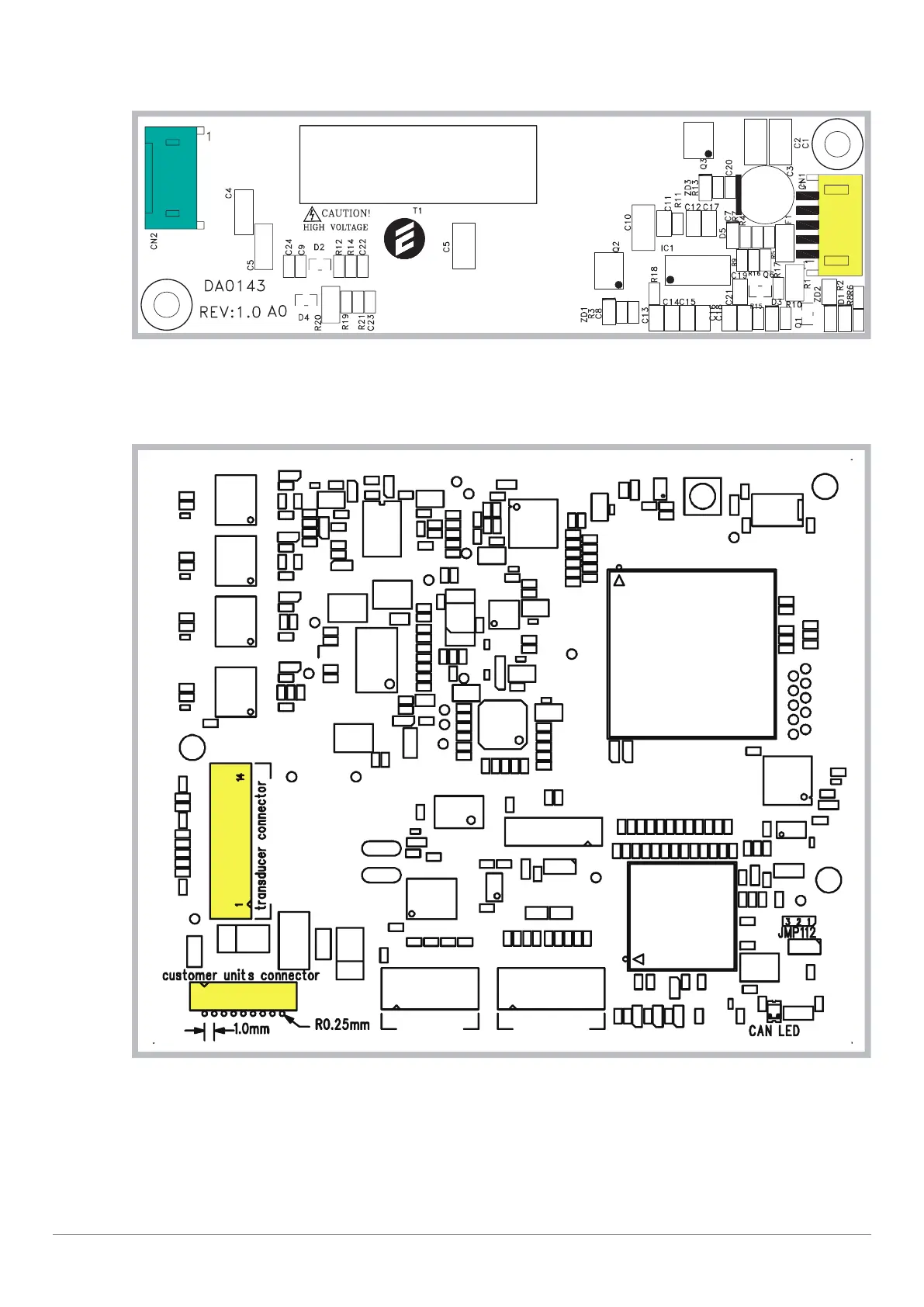

9.1.5 Backlight Inverter
X1
X2
Backlight inverter
X1 DC input 10.8 ... 13.2 VDC
X2 AC output 655 Vrms
9.1.6 DIGIFLOW PCB
X1
X2
P102
1 2 3 4 5 6 7 8 9
P100
Digiflow PCB
X1 Flow/Bubble sensor
X2 Sensor PCB
