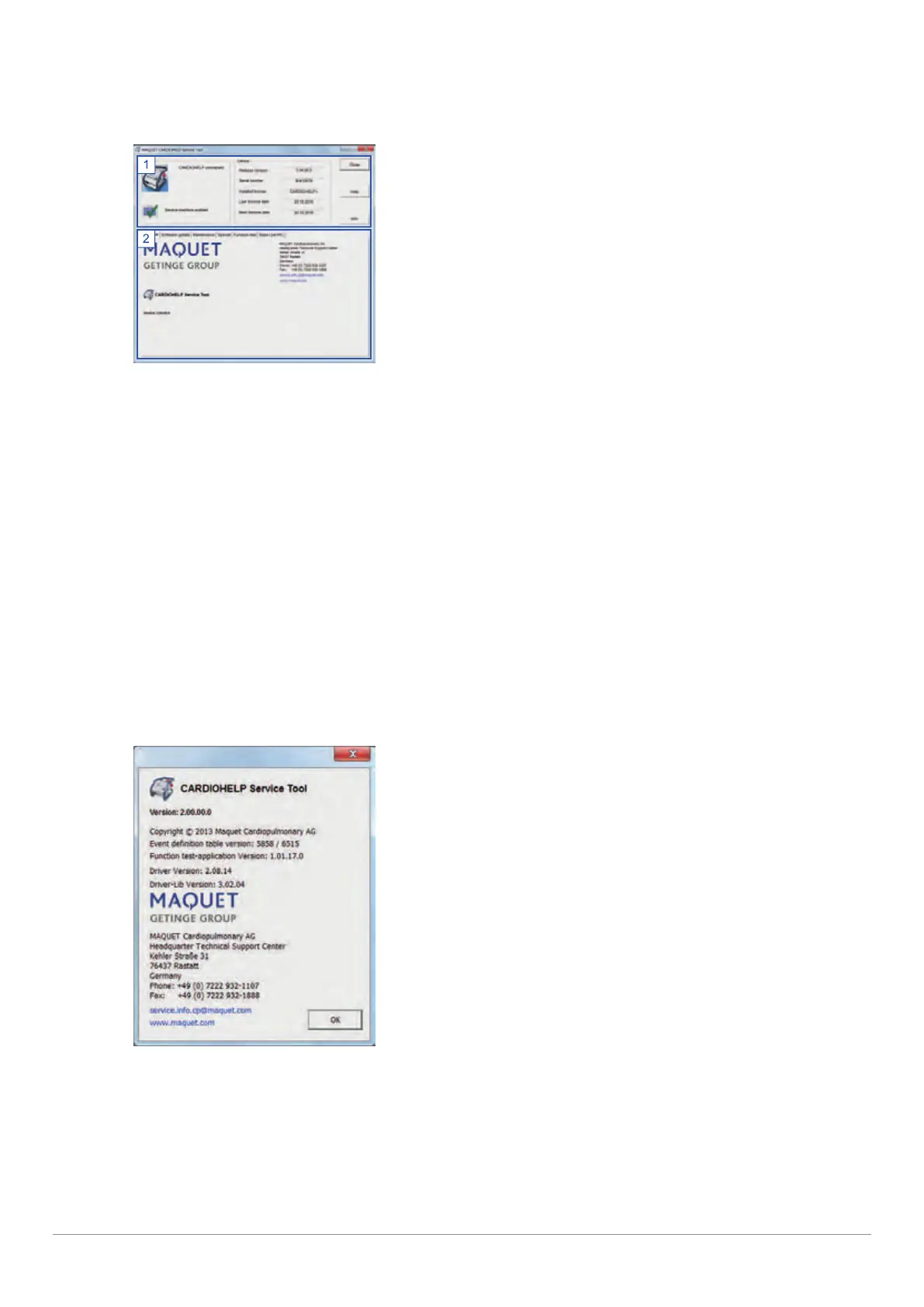

5.2.1 Screen Layout
The screen is divided into two areas:
1 Device status and additional information
2 Service tasks
Service interface activated
Device status and additional information
The status of the connection to CARDIOHELP is visible in the top left corner.
In the center you will find important information about the connected device.
n Installed version
n Serial number
n Installed license
n Last service date
n Next service date
Three buttons are arranged in the upper right and contain the following actions. Touching the appropriate
button carries out the following actions:
n [Close] the program is ended.
n [Help] opens a PDF document with service information for MCP-HTSC.
n [Info] opens a pop-up window containing additional information about the service tool software.
"Info" Screen
Service tasks
The tasks to be carried out are divided into the following tabs.
n Welcome
n Software update
n Maintenance
