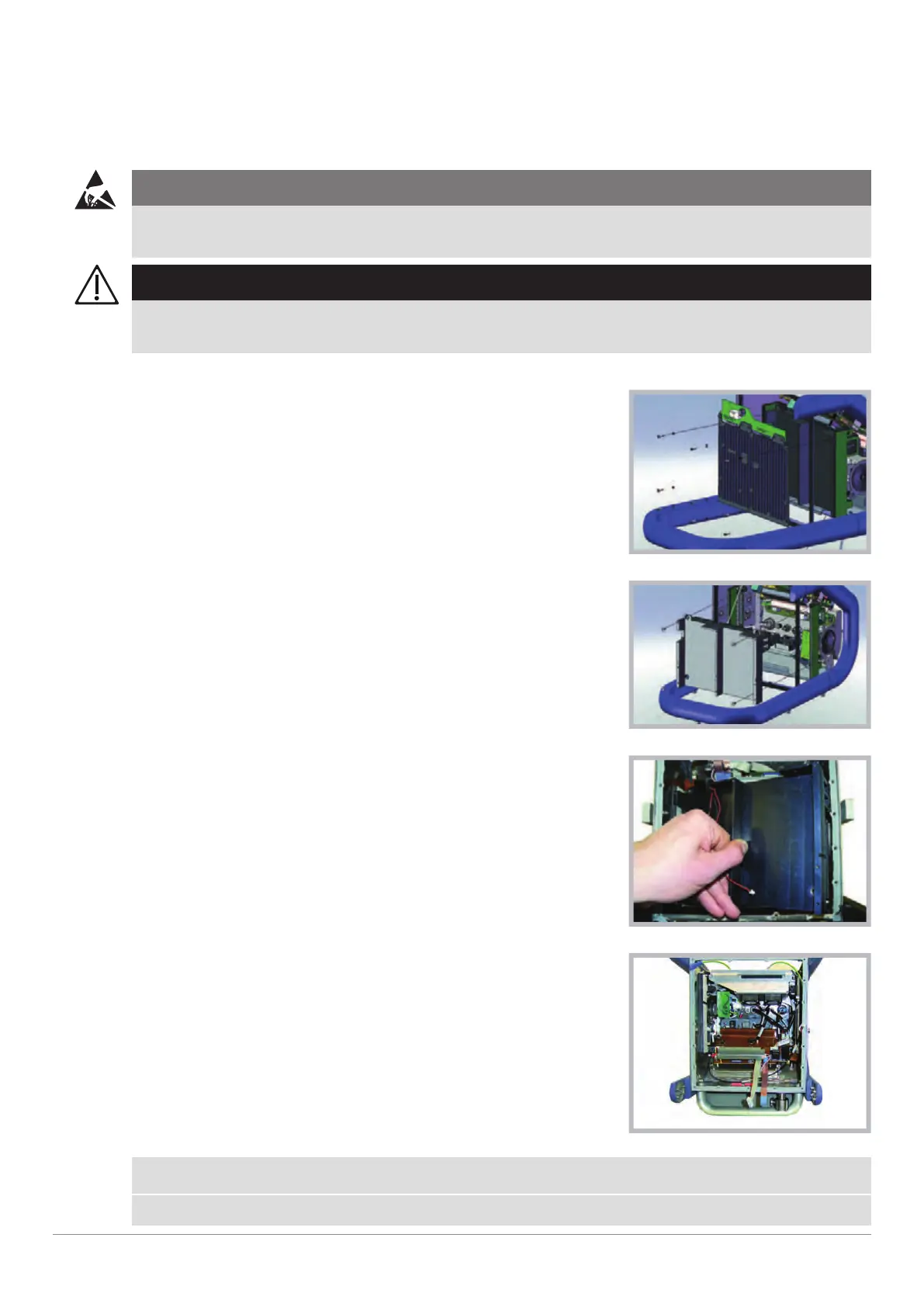

6.11 Removing Battery Housing
Requirements
Service training part 2
CAUTION!
ESD-sensitive components
To prevent damage to ESD-sensitive components, an ESD-protected environment must be set up.
WARNING!
To finish the task, the following step must be carried out in order to ensure error-free use.
n Carrying out the inspection (⇨ "Inspection", page 33).
1 Open the device (⇨ "Opening the Device", page 108).
2 Unscrew the 9 screws (M2,5x8) of the battery housing cover and
remove the cover.
Battery housing cover
3 Unscrew the 4 screws (M4 x 8) of battery housing.
Battery housing
4 To remove the battery housing, move it to the position as shown in
the picture. Lift the right side up and remove it from the
CARDIOHELP device.
Removing the battery housing
Behind battery housing
NOTE
Perform the necessary steps of service work.
