2 System Components
2.1 General Information
The CARDIOHELP System is a compact perfusion system, with which an extracorporeal circulation can be
driven, controlled, monitored and logged.
Further information is available in the CARDIOHELP System Instructions for Use.

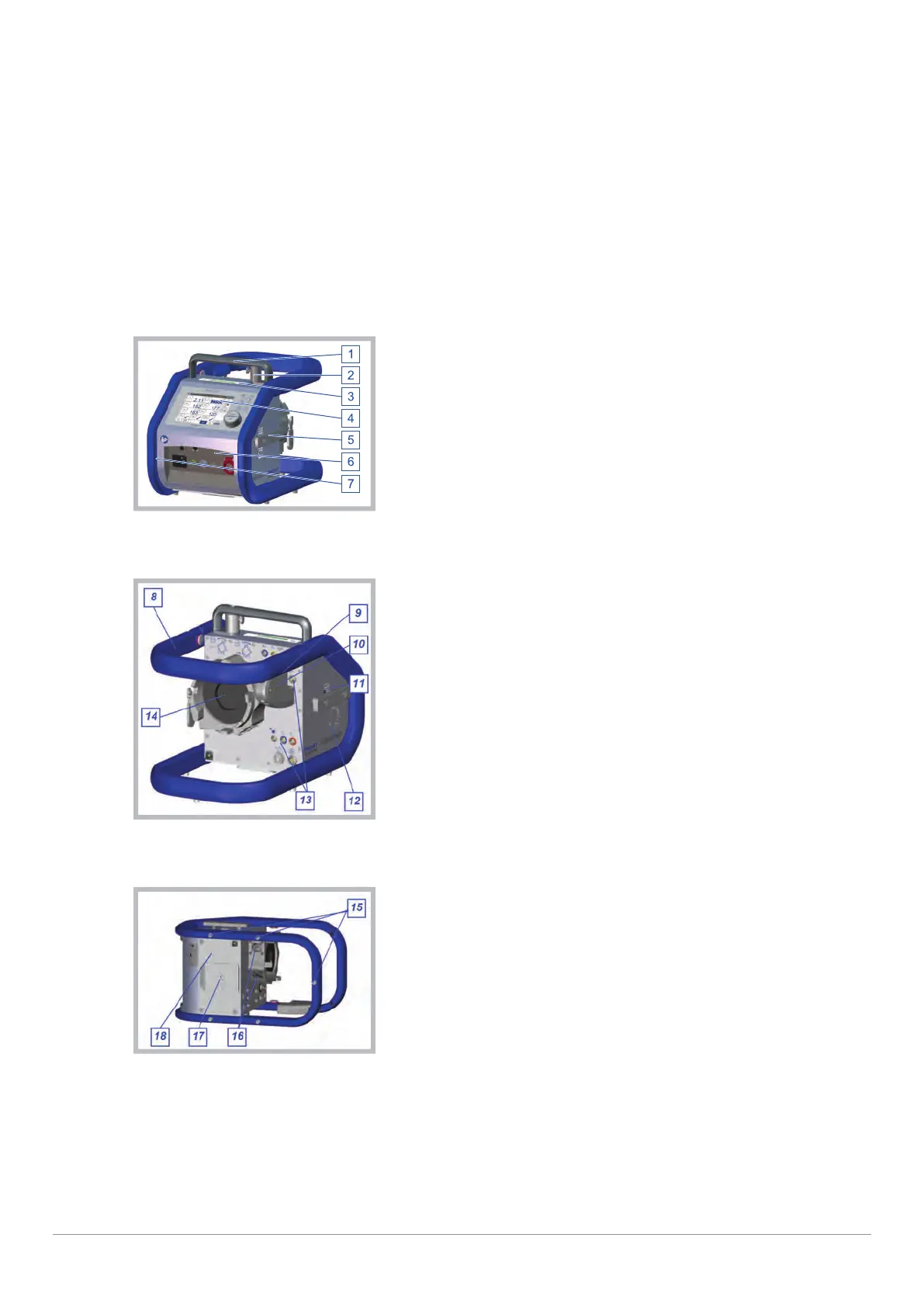

2.2 System Overview
Front
1 Carrying handle
2 Holder for CARDIOHELP Emergency Drive
3 Speed indicator LED
4 Control panel
5 Standard slide rail
6 Front connections
7 Protective frame
Front
Rear
8 Guard (unfolded)
9 Holder for venous probe
10 Venous Probe
11 Ventilation slots
12 Speaker opening
13 Sensor connections
14 Pump drive
Rear
Underside
15 Rubber feet
16 Fan drive
17 Sled
18 Battery cover
Underside
