6.3.3 Print Condition Transmission

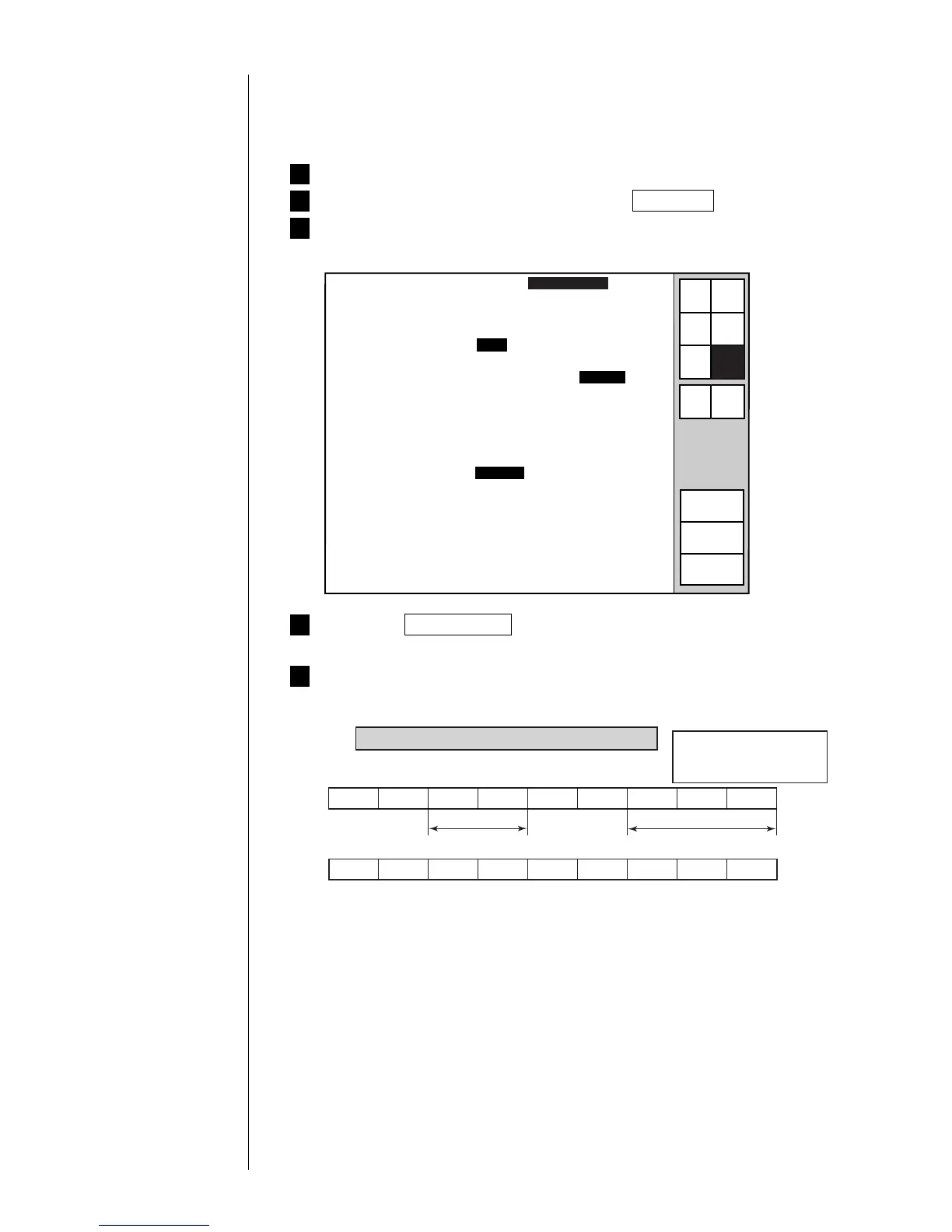

¡ The procedure for changing the character height from "99" to "90" and change the
character width from "050" to "000."is shown in the example below.
１ Assume that the printer is ready for printing.
2 From the "Print description" screen, press Print spec .
3 You can see a character height setting of 99 and character width of
"050" entered.
Status: Ready Com=0
Print specifications 2011.07.07 12:45
Back
Scanning
unit SC
Character
unit CH
ＡＢＣ
ＡＢＣ
Message name ［ AAAAAAAAAAAA ］
Character height [９９]（０-９９）
Character width [０５０]（０-１９９）
Character orientation [０]（０:ＡＢＣ １:ＡＢＣ ２: ３: ）
(Arrow: Printing direction) → ← ← →
Printing method ２ (1 : signal scan 2 : Interlaced )
Repeat intervals [００００] (scanning unit SC 0-9999
)
Repeat count [００００] (0:none, 1-9998, 9999:continuous)
Print start delay [００００] (character unit CH 1-1234)
Target sensor timer [０００] (1/10sec 0 : none, 1-999)
Target sensor filter [１] (1 : time setup, 2: until end of print.)
Setup value [００００] (msec 0-9999)
Manual
Show
cursor
Start
up
Shut
down
Prev.
set-
tings
Next
set-
tings
Comm
On/Off
4 Press the Comm On/Off key.
The status then changes from "off-line" to "on-line".
5 Transmit character height data and character width data from the
external device to the IJ printer.
Shows text data between STX and ETX
ESC Header 9 0 ESC Header 0 0 0
Transmission data
Character height
1BH 30H 39H 30H 1BH 31H 30H 30H 30H
Transmission code
Character width
Number of character
height digits
In the case of "2 digits"
